Description

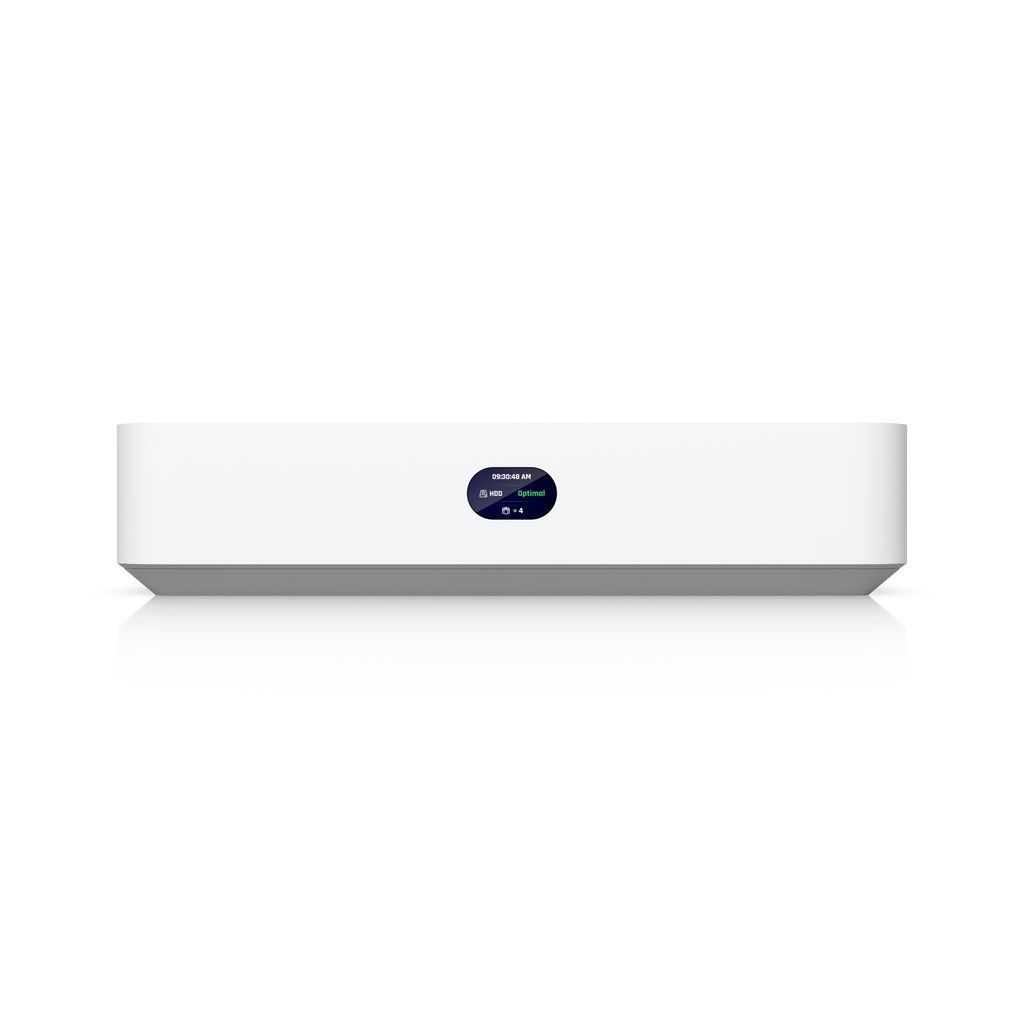

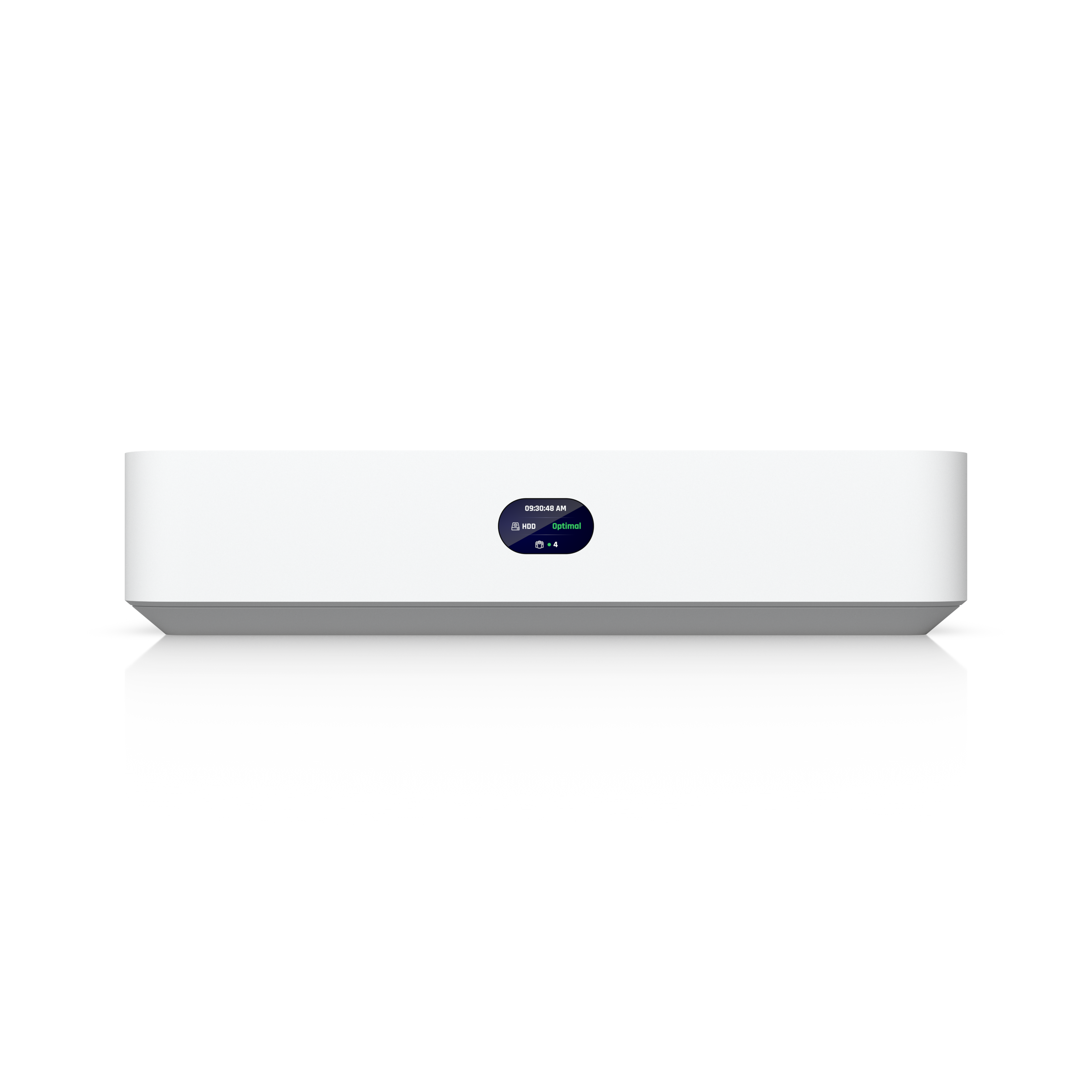

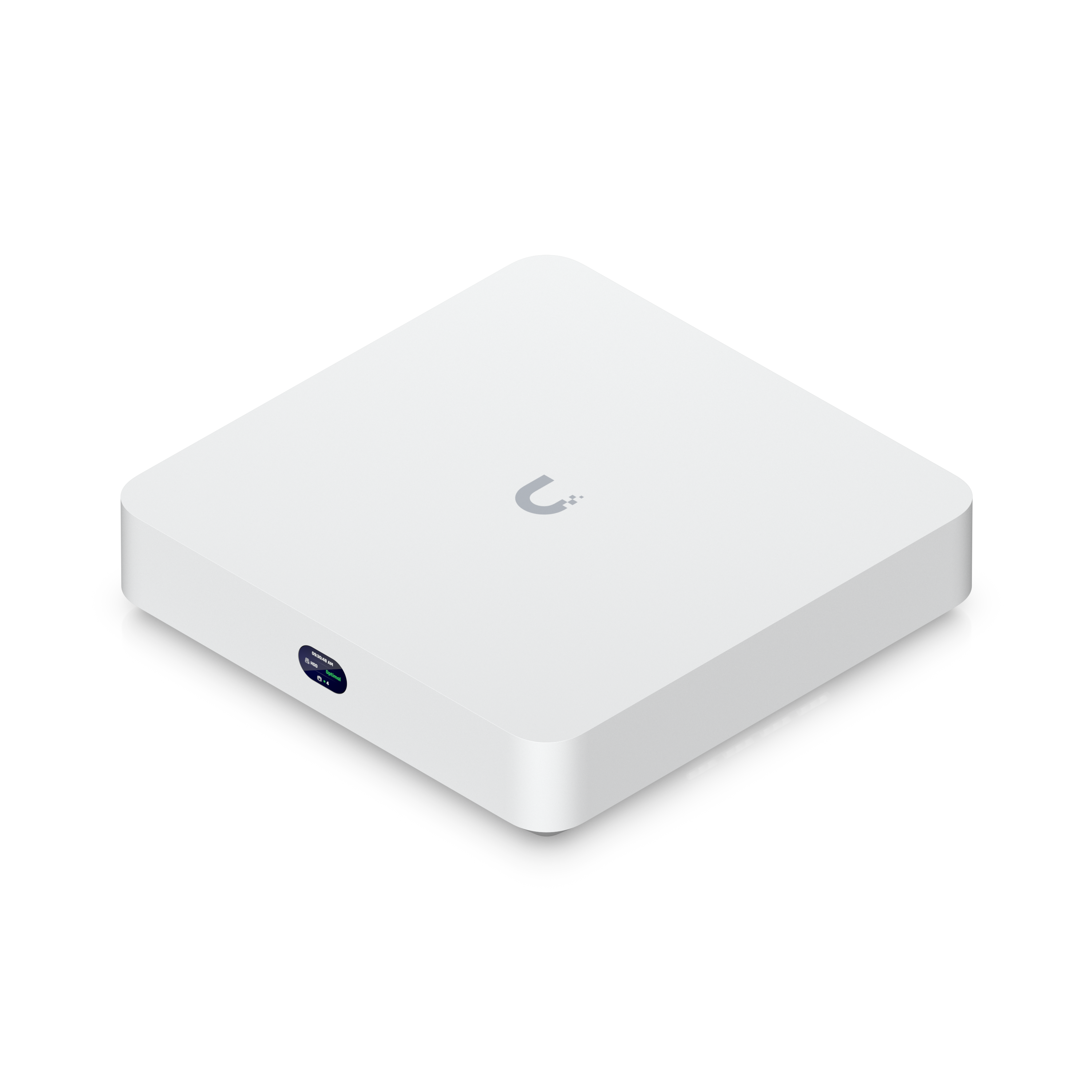

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Technical Specifications
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Max. Simultaneous Viewport Streams
6 4K cameras
Managed Access Hubs
50

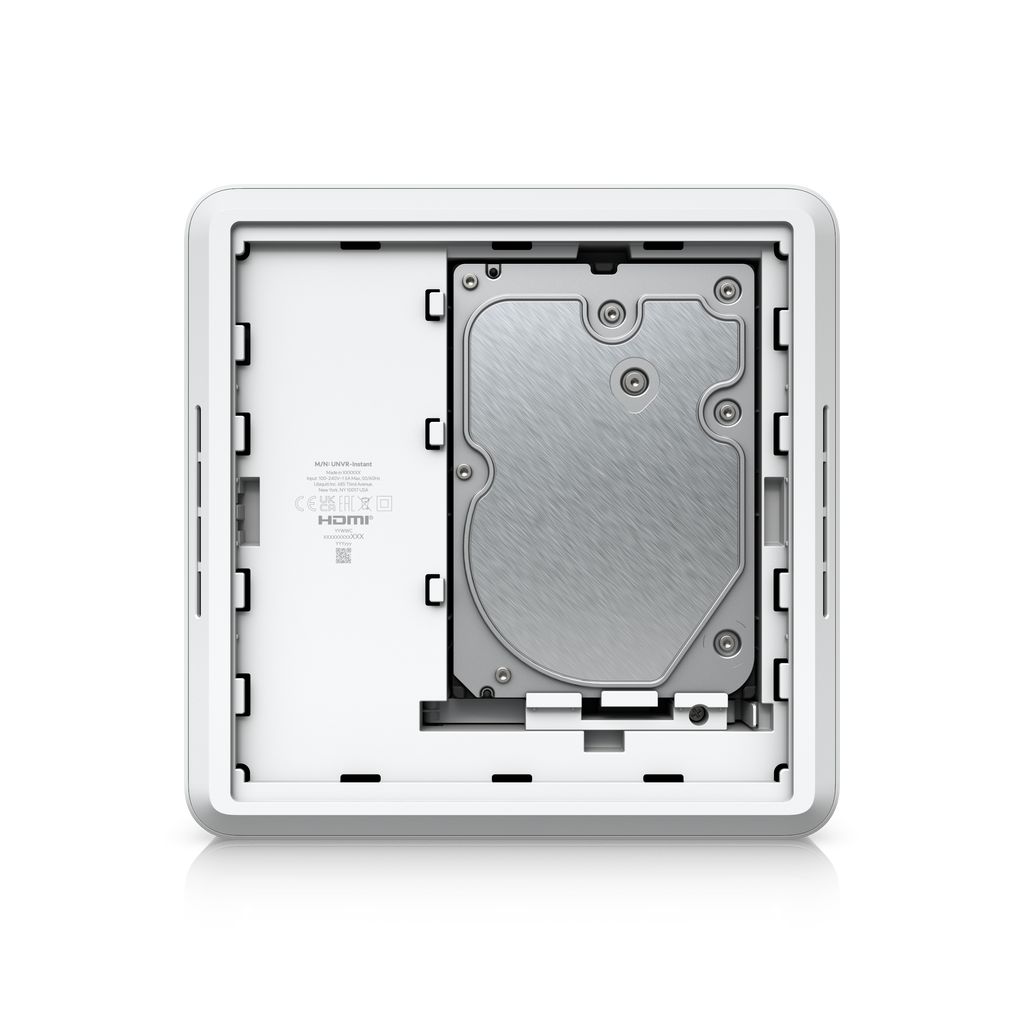

Storage Capacity

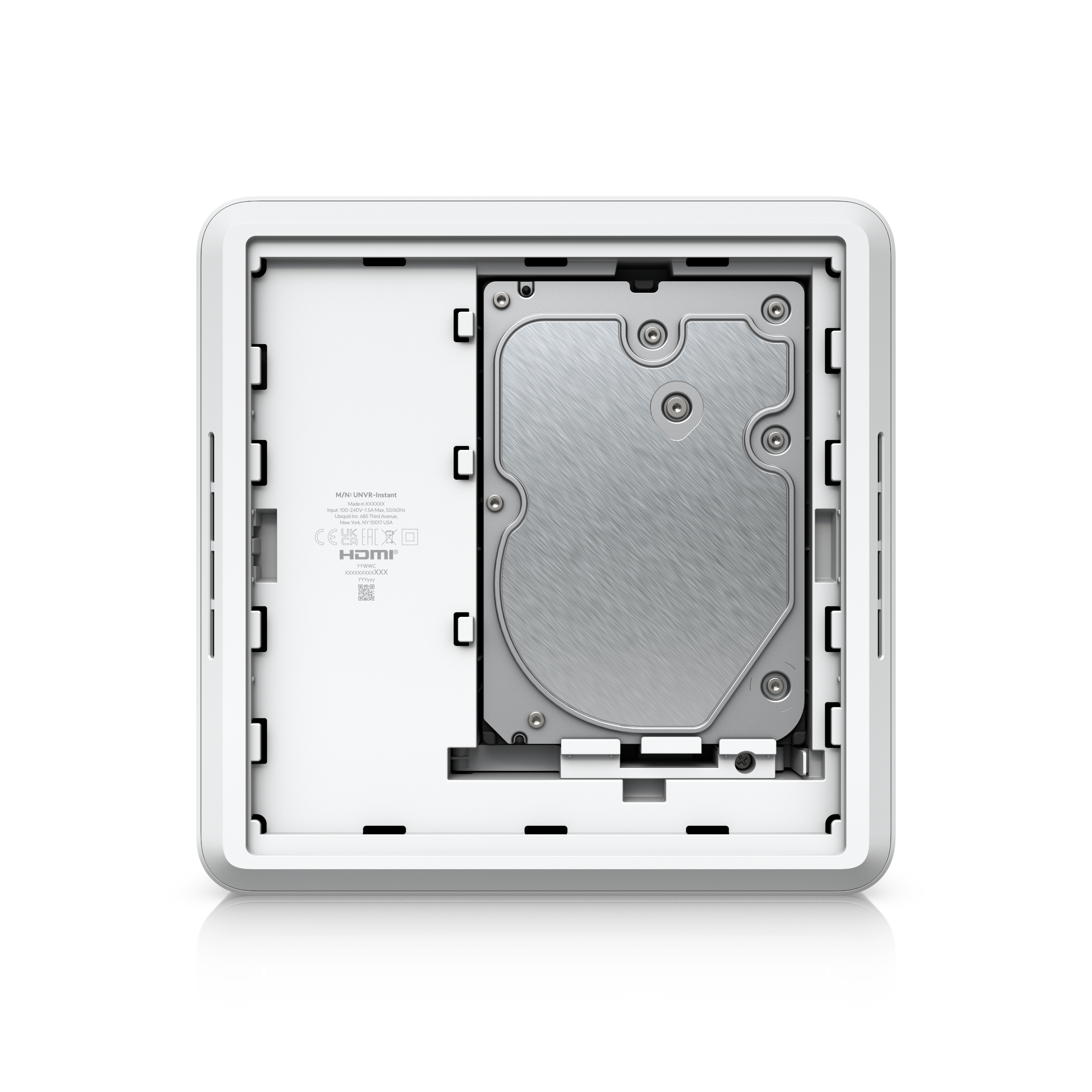

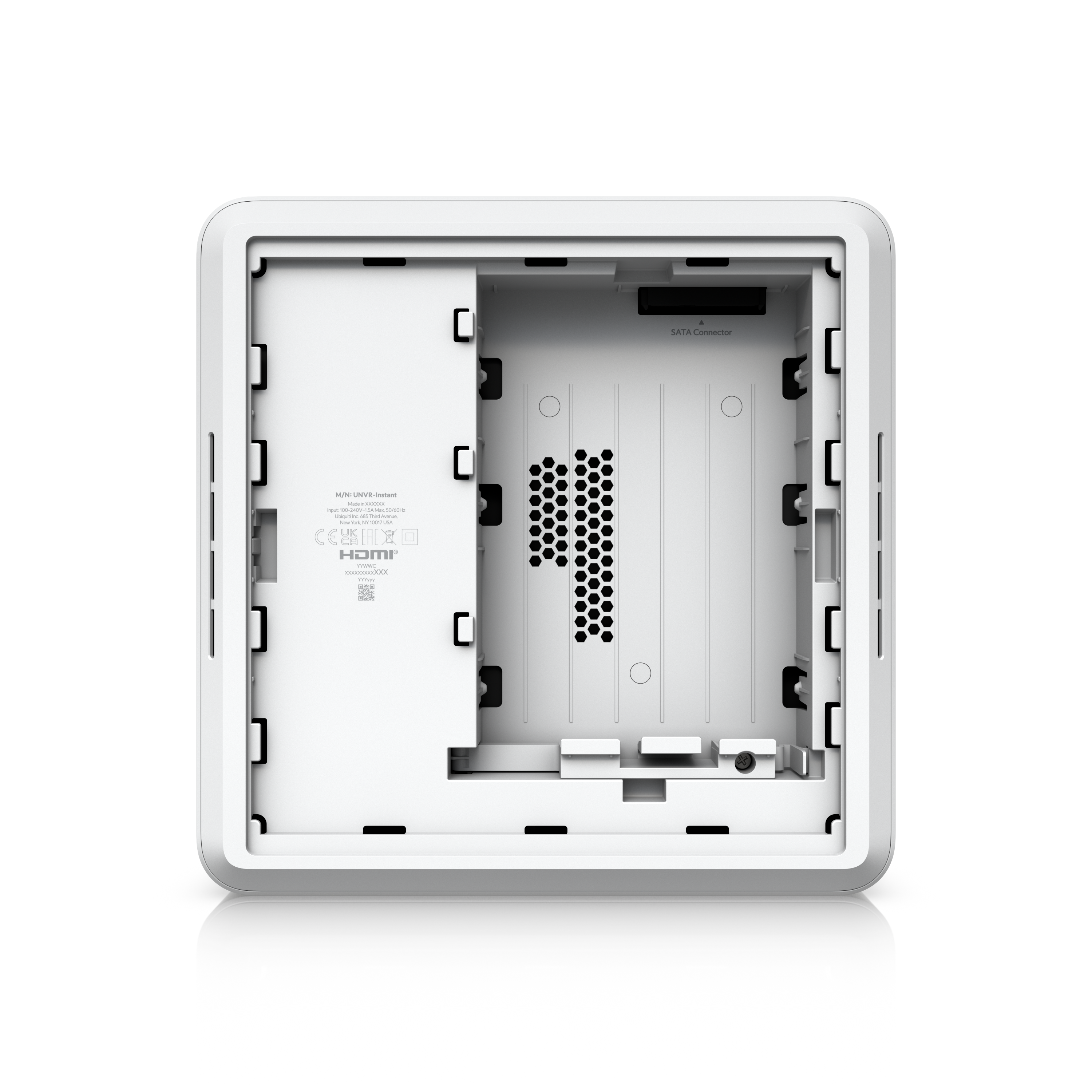

(1) 3.5" drive bay
Data Protection
✓
Vantage Point
✓

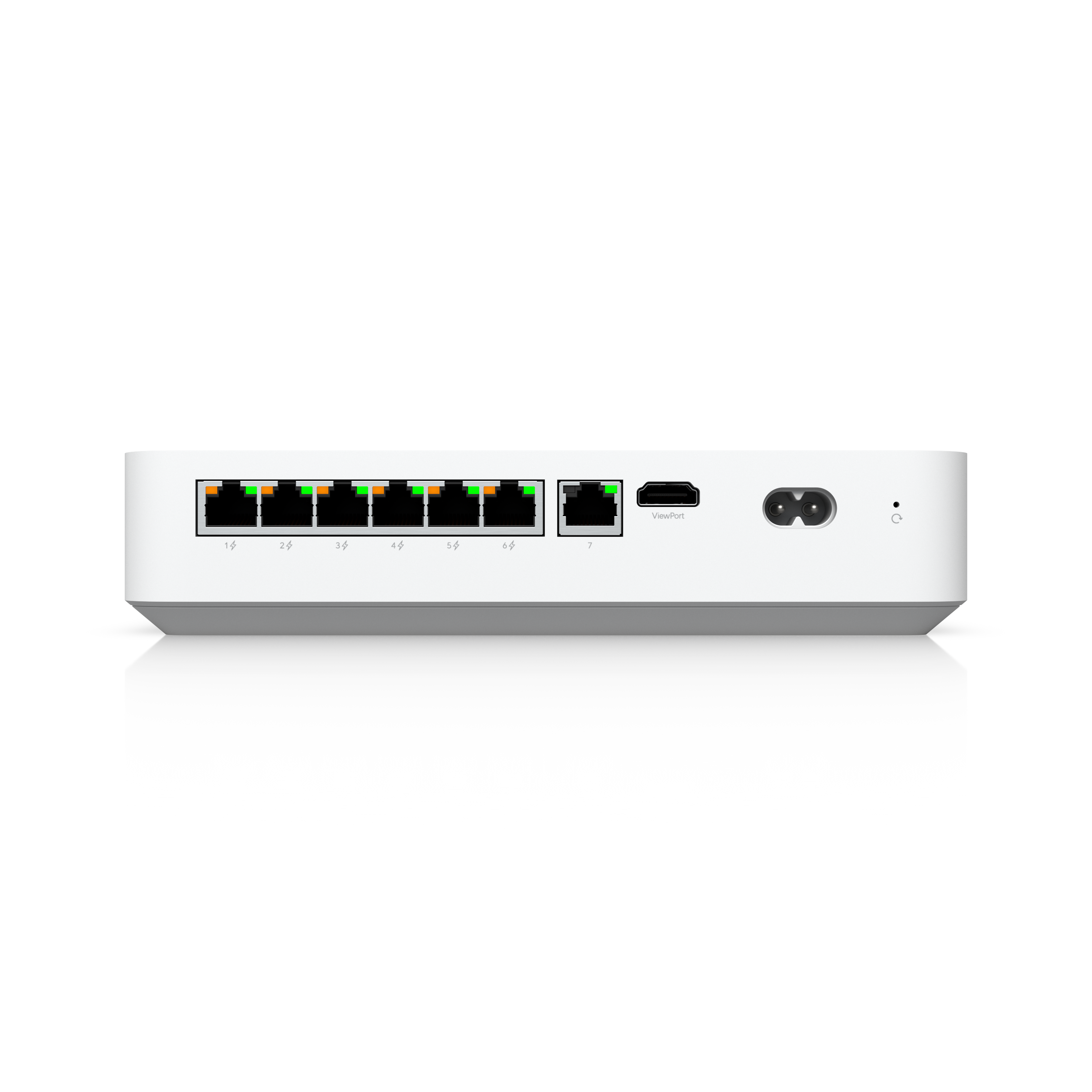

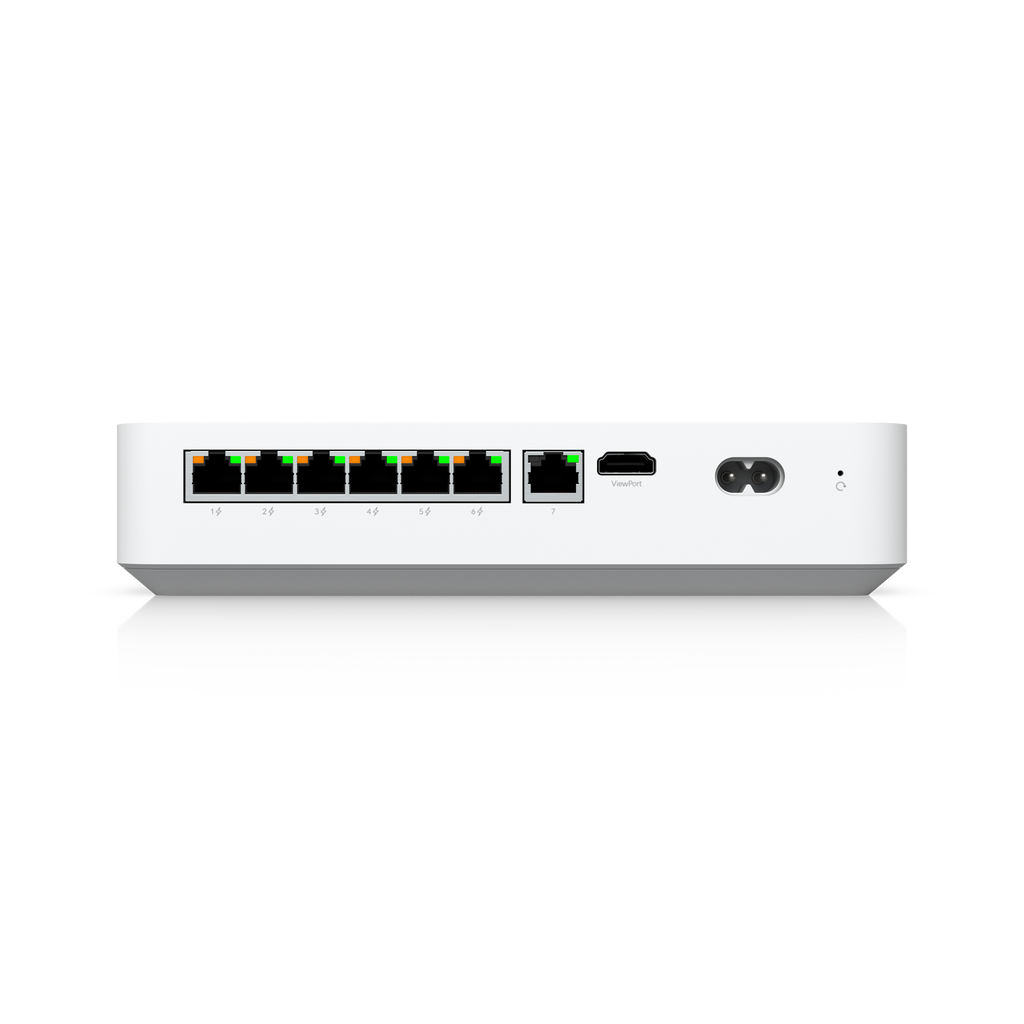

Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
✓
Management Application
UniFi Protect
UniFi Access
UniFi Connect
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet
✓
PoE
✓
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356
