Ubiquiti Access Hub

UbiquitiSKU: UA-Hub

Price:
Sale price$459.00

Tax included

Stock:
In stock

Description

The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers.

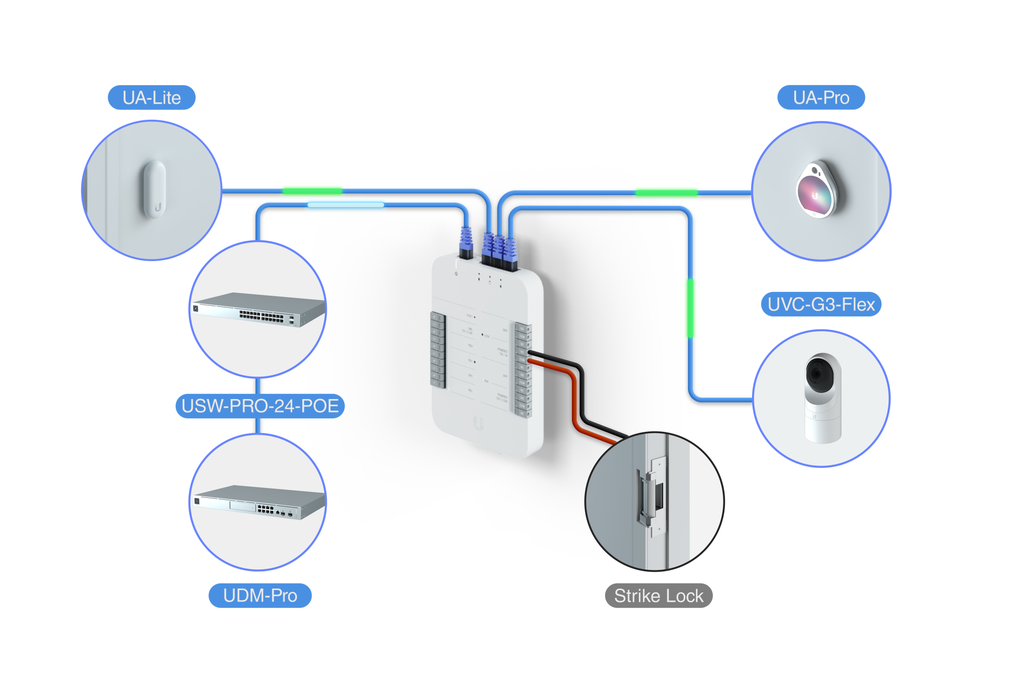

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

Features:

  • Powered by 802.3bt (PoE++) switch
  • Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
  • 12V powered and dry relays compatible with most locks
  • Four inputs for motion sensors, request-to-exit devices and door position switch
  • Managed with UniFi Access Application in UDM-Pro
  • DIN-rail mounting

    Note: UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access

    Product Specifications

    UA-Hub
    Dimensions190 x 126 x 33 mm
    (7.48 x 4.96 x 1.29")
    Weight457 g
    (16.12 oz)
    Enclosure CharacteristicsPlastic Enclosure with Metal Mount Plate
    Mounting OptionsDIN Rail

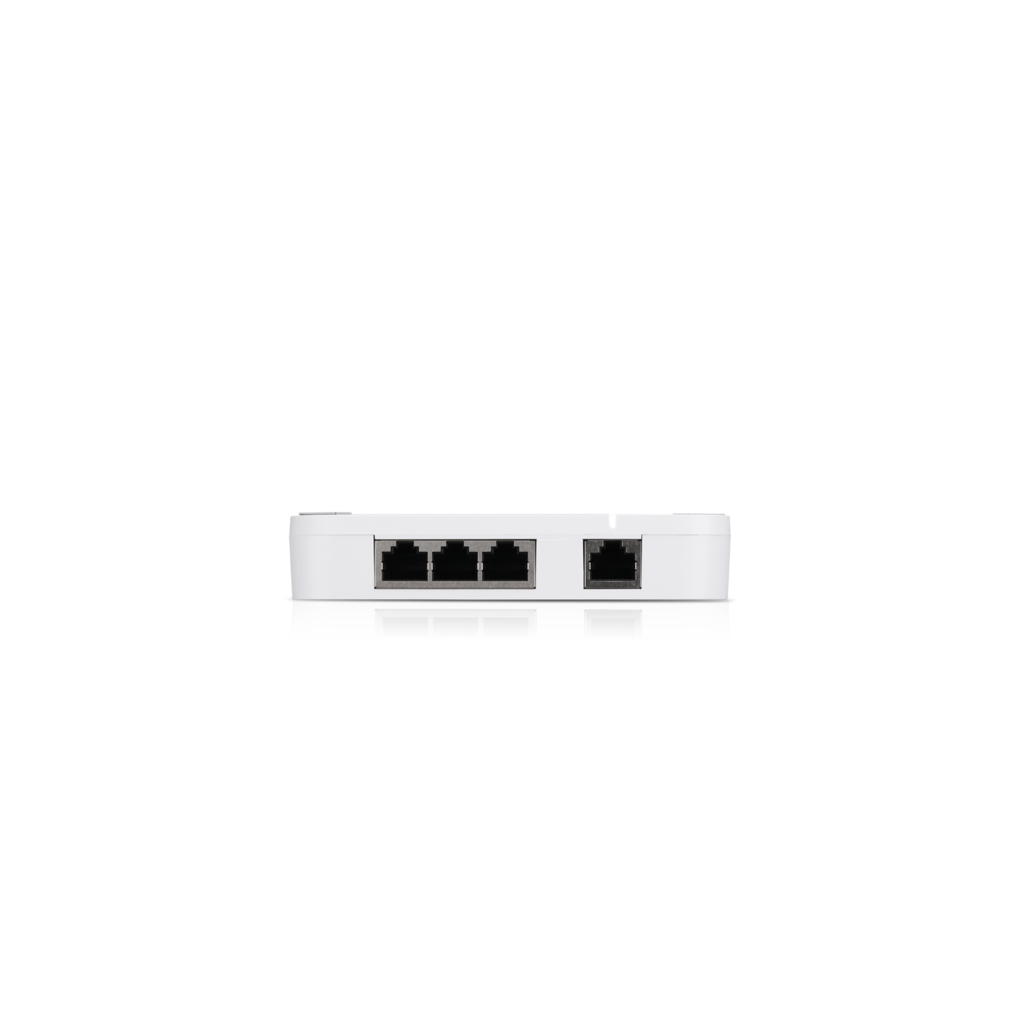

    Networking Interface(4) 1 Gbps Ethernet
    Max. Power Consumption40W
    Power Method802.3bt PoE
    Input RelaysREX - Request to Exit
    REN - Request to Enter
    REL - Remote Release
    DPS - Door Position Sensor
    Dry Output Relay
    Lock
    Aux

    Rated 30VDC, up to 1A
    Rated 30VDC, up to 1A
    Powered Output Relay
    Lock
    Aux
    Line

    12VDC, up to 1A
    12VDC, up to 0.33A
    12VDC, up to 0.33A
    LEDs(1) System, (3) PoE Out, (4) Input
    (2) Output Relays, (1) 12VDC Out
    ButtonsTerminal Blocks, Reset
    Operating Temperature0 to 40° C (32 to 104° F)
    Operating Humidity5 - 90% Noncondensing
    CertificationsCE, FCC, IC
