Description

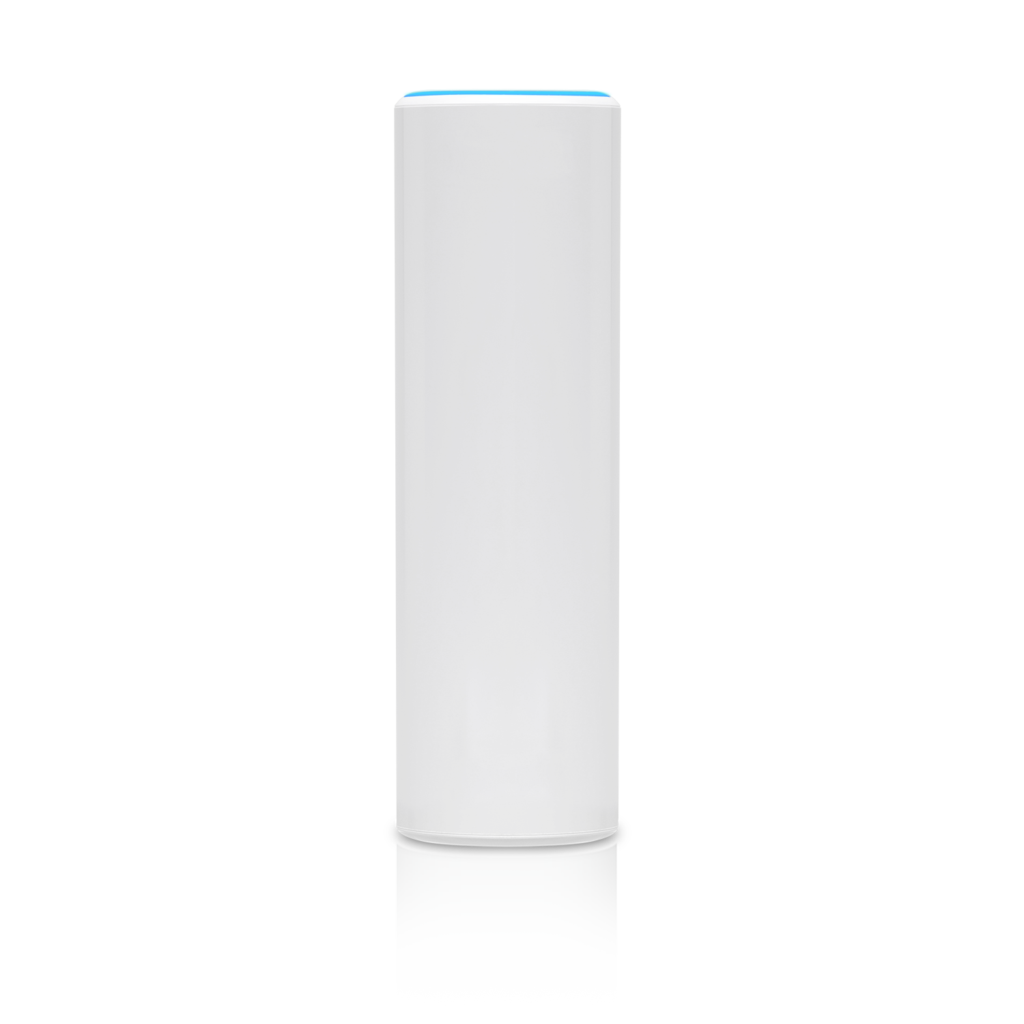

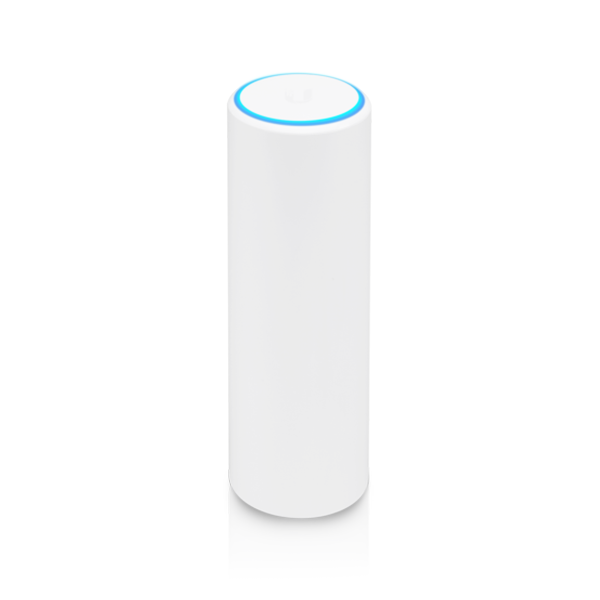

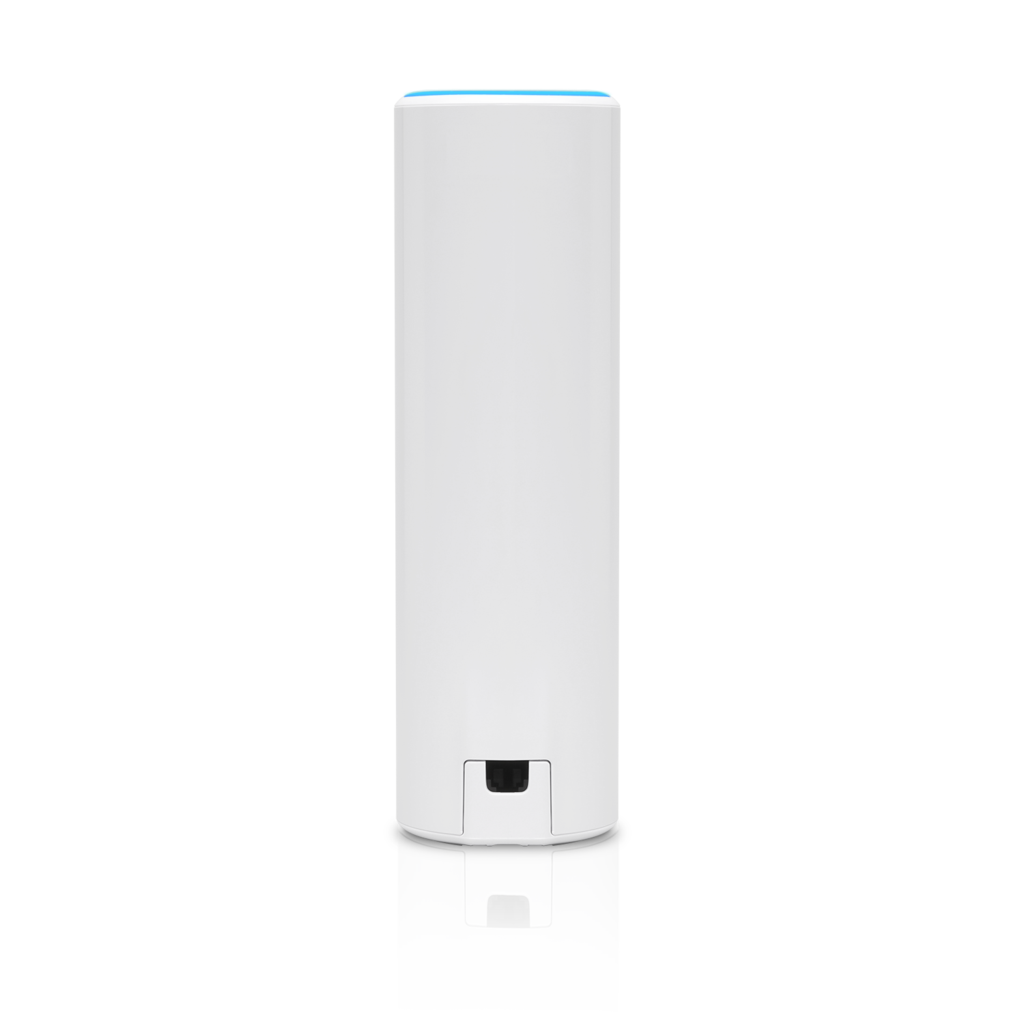

Small and sleek 802.11ac Wave 2 enterprise Wi-Fi Access Point with 4x4 MU-MIMO technology. Ideal for business and home.
Small and sleek, yet powerful, the 802.11ac 4x4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.
Features:
- 802.11ac Wave 2 Technology
- 5 GHz Radio: 802.11ac Wave 2, 4x4 MU-MIMO with Radio Rate of 1.733 Gbps
- 2.4 GHz Radio 802.11n: 2x2 MIMO with Radio Rate of 300 Mbps
- Indoor and Outdoor Use
- Tabletop, Wall, and Pole Mounting Brackets Included
- Seamless Integration and Management with UniFi Network Solution
Managed with UniFi Network Application Version: 5.11.27 or higher
Product Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø 48.50 x 159.49 mm (1.90 x 6.28") |
| Weight | 315 g (0.69 lb) |

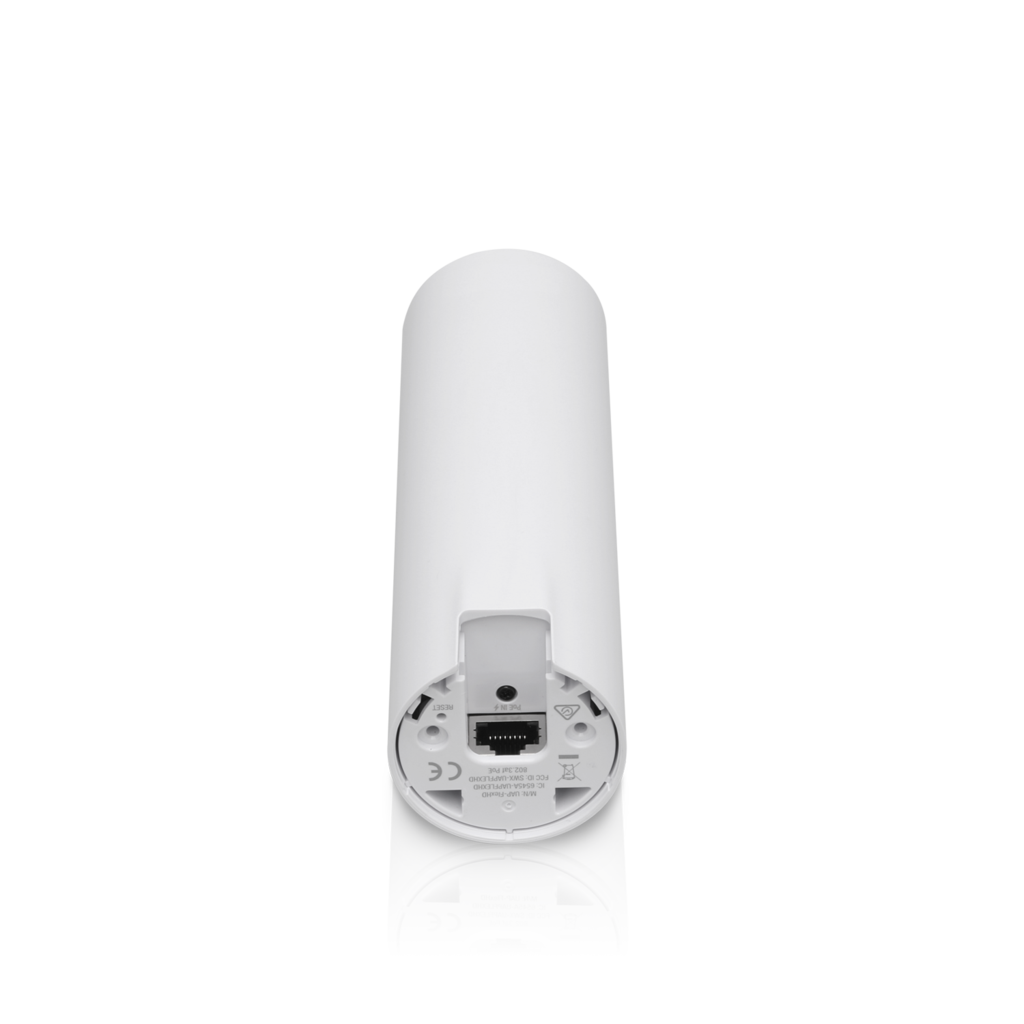

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System / Status |
| Power Method | 802.3af |
| Power Supply | 802.3af 48V, 0.32A Gigabit PoE Adapter |
| Max Power Consumption | 10.5W |
| Voltage Range | 44 - 57VDC |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max TX Power EIRP | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Throughput | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 1.6 dBi 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |

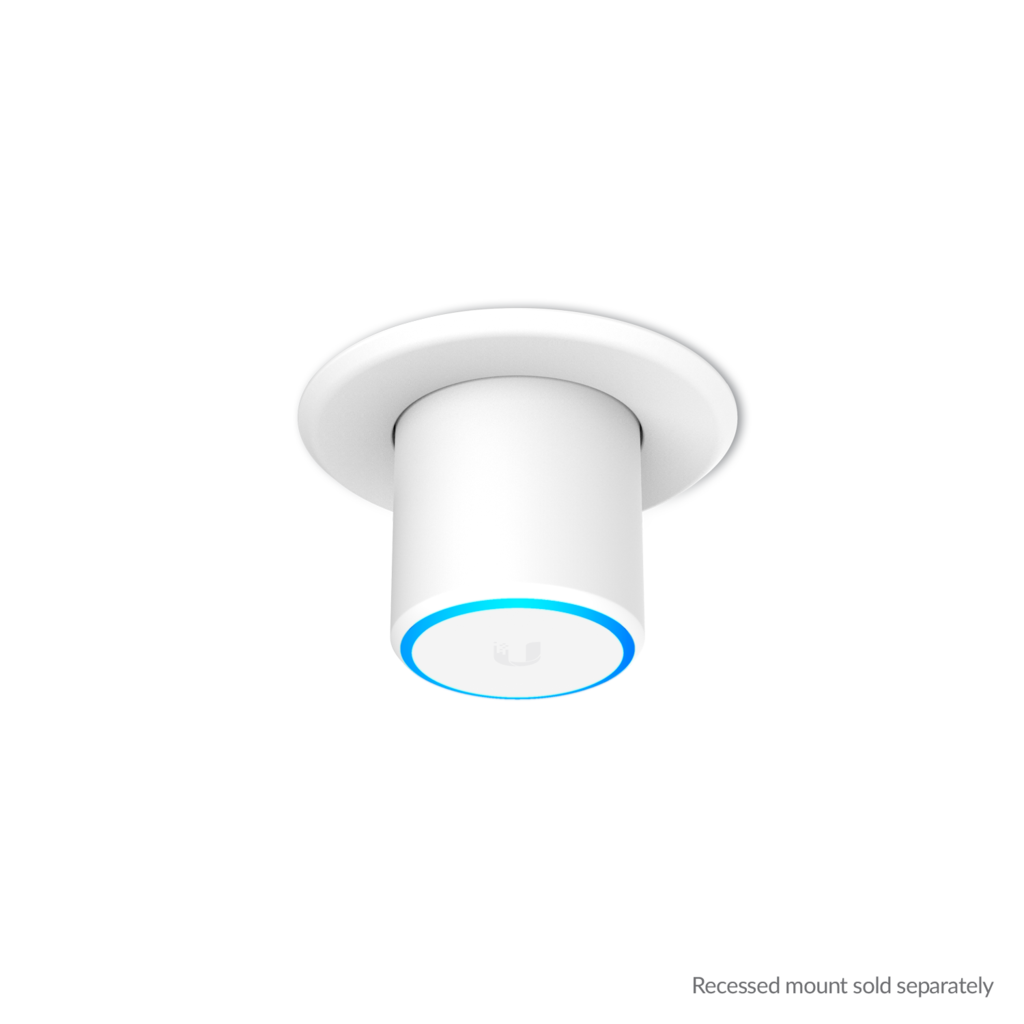

| Mounting | Ceiling / Pole / Tabletop / Wall |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
