Description

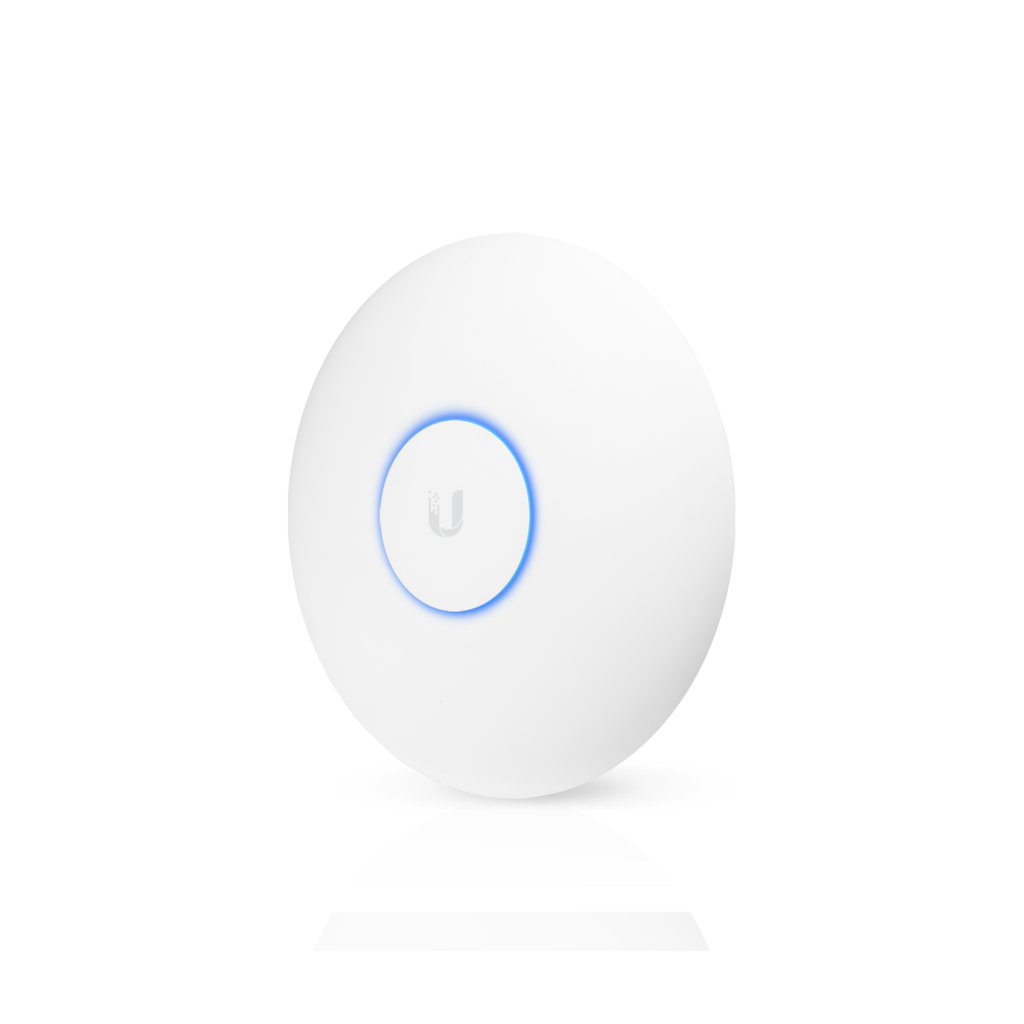

Extend your Wi-Fi network with the UniFi® ac LR Access Point, part of the Ubiquitii UniFi Enterprise WiFi System. The UniFi ac LR Access Point is an indoor, long-range 802.11ac dual-radio access point, capable of speeds up to 1317 Mbps with a range of up to 183 meters.
Features:
- Simultaneous Dual-Band Operation
- 5 GHz Band with Speeds of up to 867 Mbps
- 2.4 GHz Band with Speeds of up to 450 Mbps
- Range up to 183 meters (600 feet)

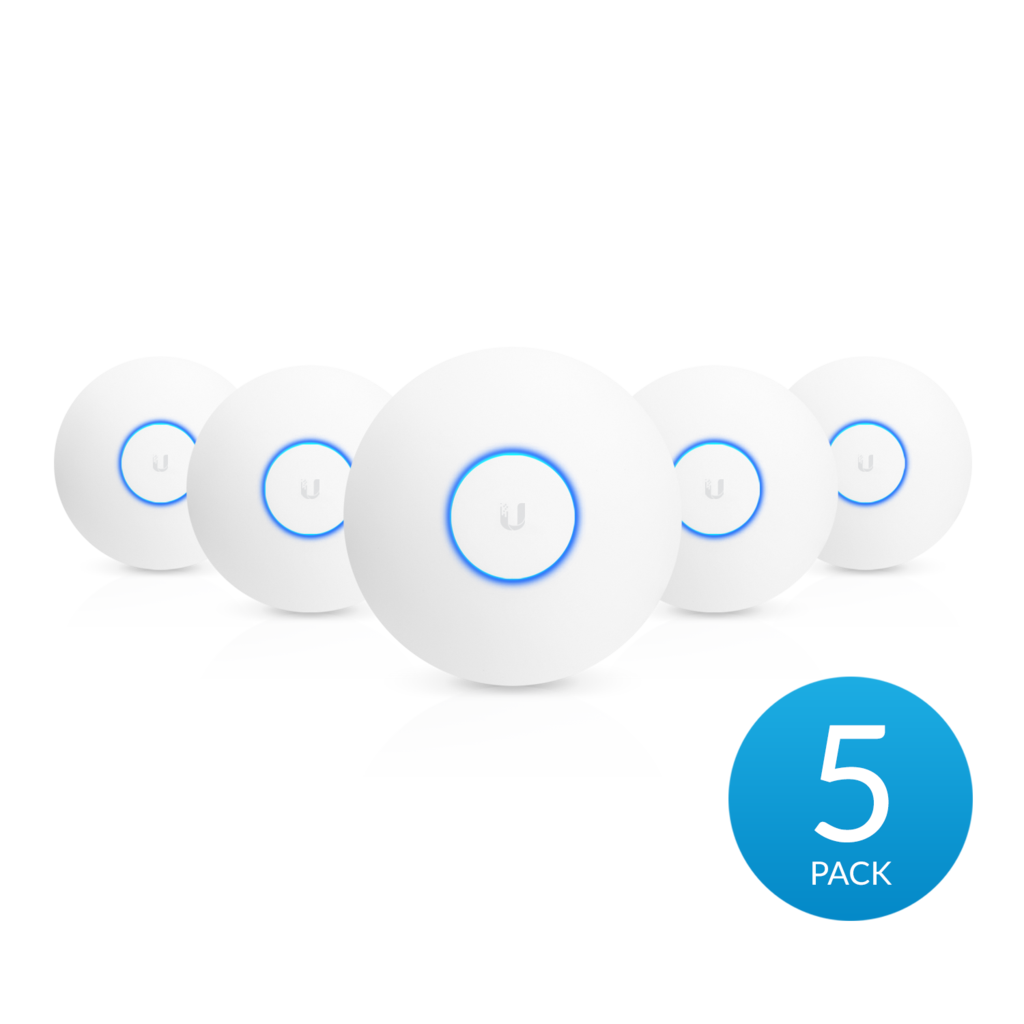

* Please note the 5-pack does not include POE injectors
Product Specifications
| Dimensions | 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
| Weight | 240 g (8.5 oz), With Mounting Kits 315 g (11.1 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3af/A PoE 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Save | Supported |
| Maximum Power Consumption | 6.5W |
| Maximum TX Power | 2.4 GHz: 24 dBm 5 GHz: 22 dBm |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
