Description

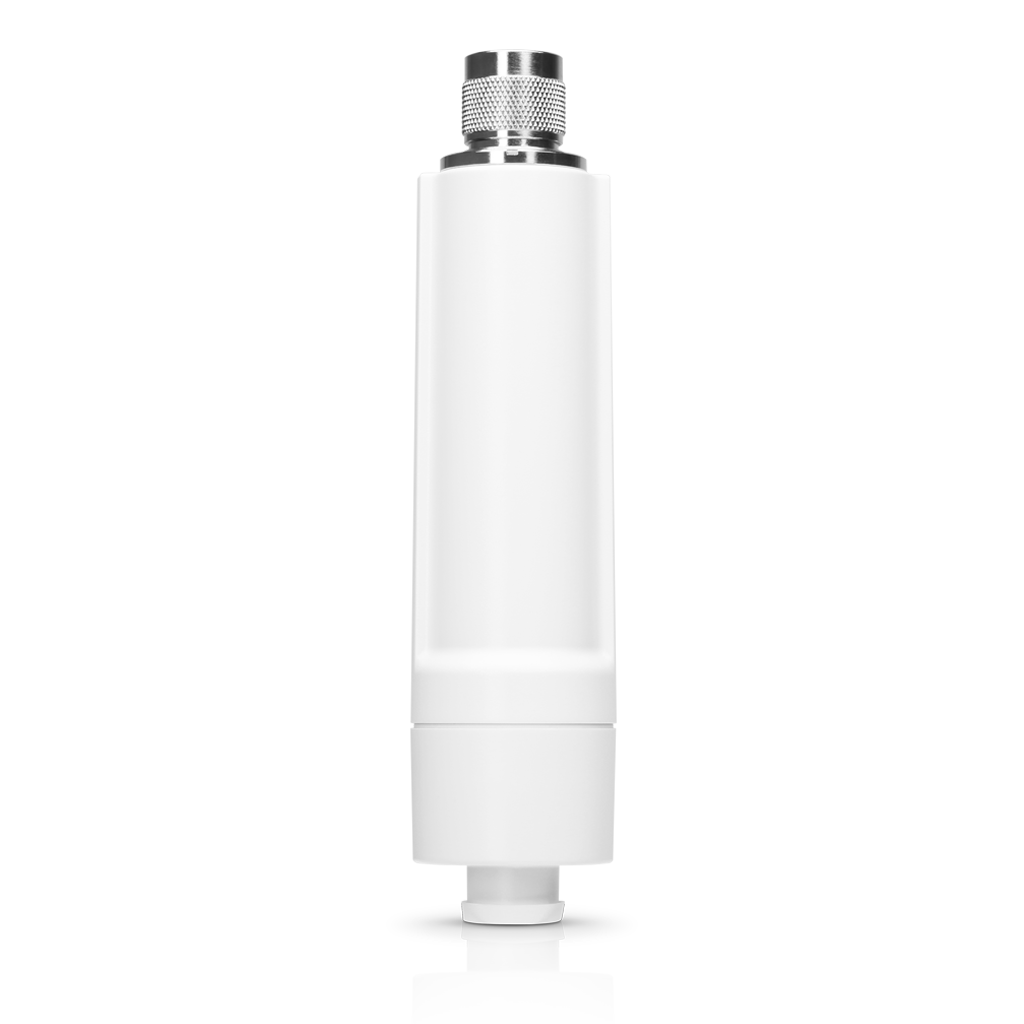

Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.
Ubiquiti designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet ™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Dual Band airMAX ac Radio with Dedicated Wi-Fi Management
- Dual-Band airMAX ac processor
- Dedicated Wi-Fi for easy setup with UISP app
- Powered by Gigabit PoE
- N-Type antenna connector
Product Specifications
| Bullet AC | |
|---|---|
| Dimensions | 190 x 46 mm (7.48 x 1.81") |
| Weight | 116 g (4.09 oz) |
| Enclosure | Polycarbonate |

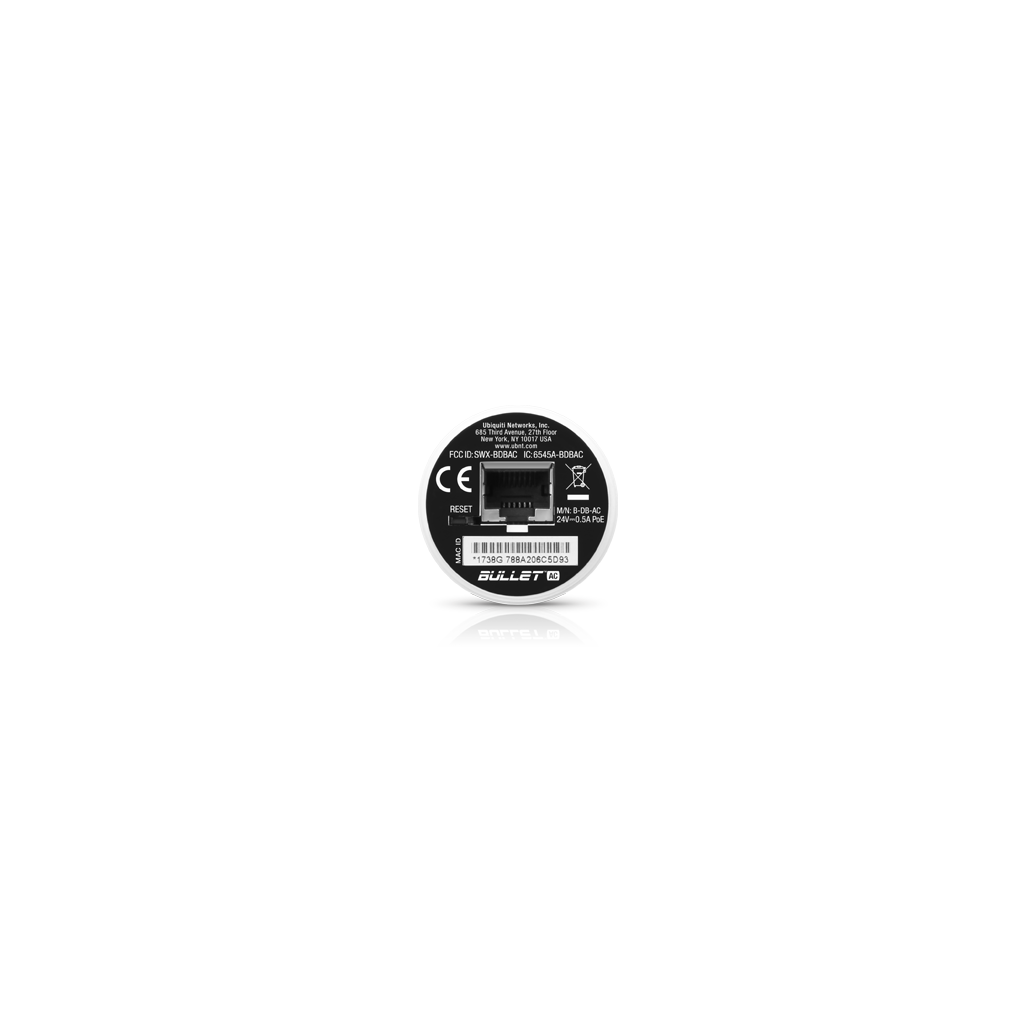

| Networking Interface | Gigabit Ethernet Port |

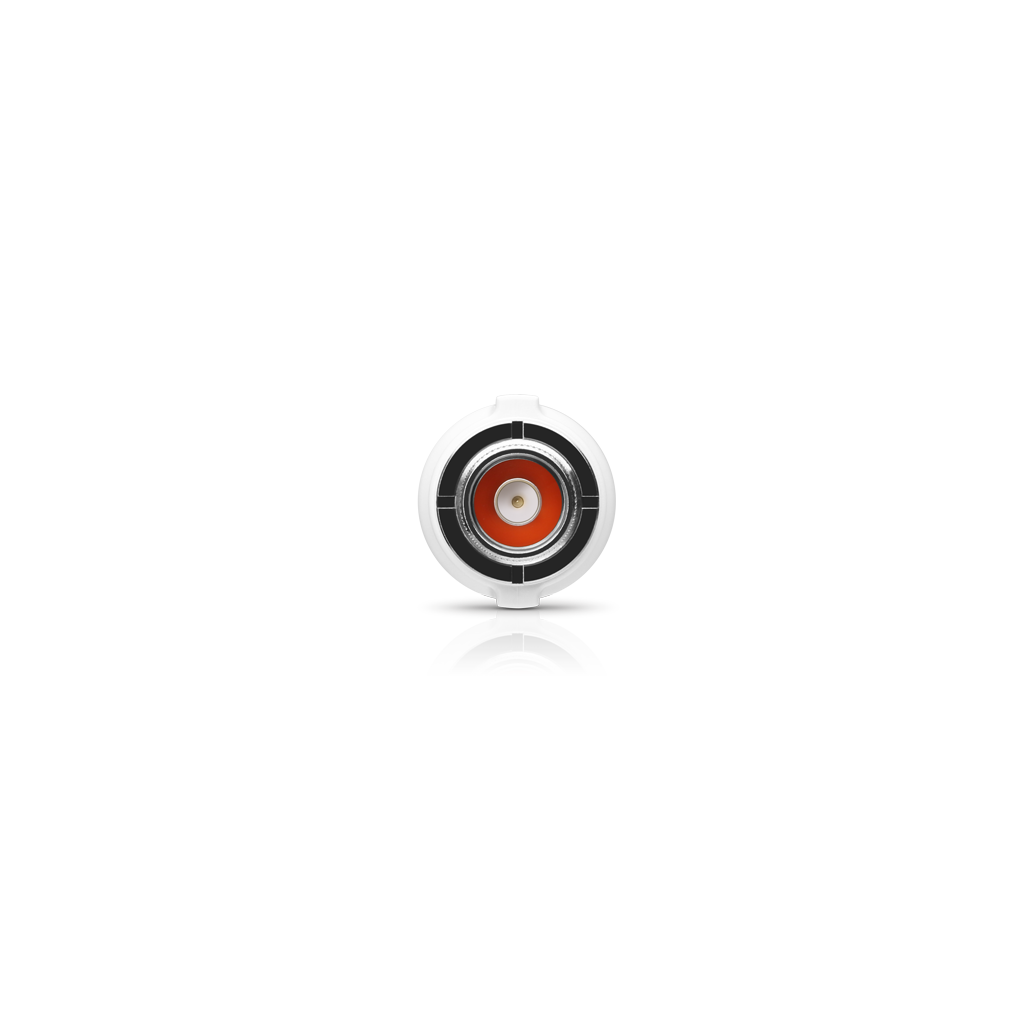

| Antenna Connector | N-Type Connector |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Max. Power Consumption | 7W |
| Output Power | 22 dBm |
| Power Supply | 24VDC, 0.3A (Minimum) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temp | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
