Description

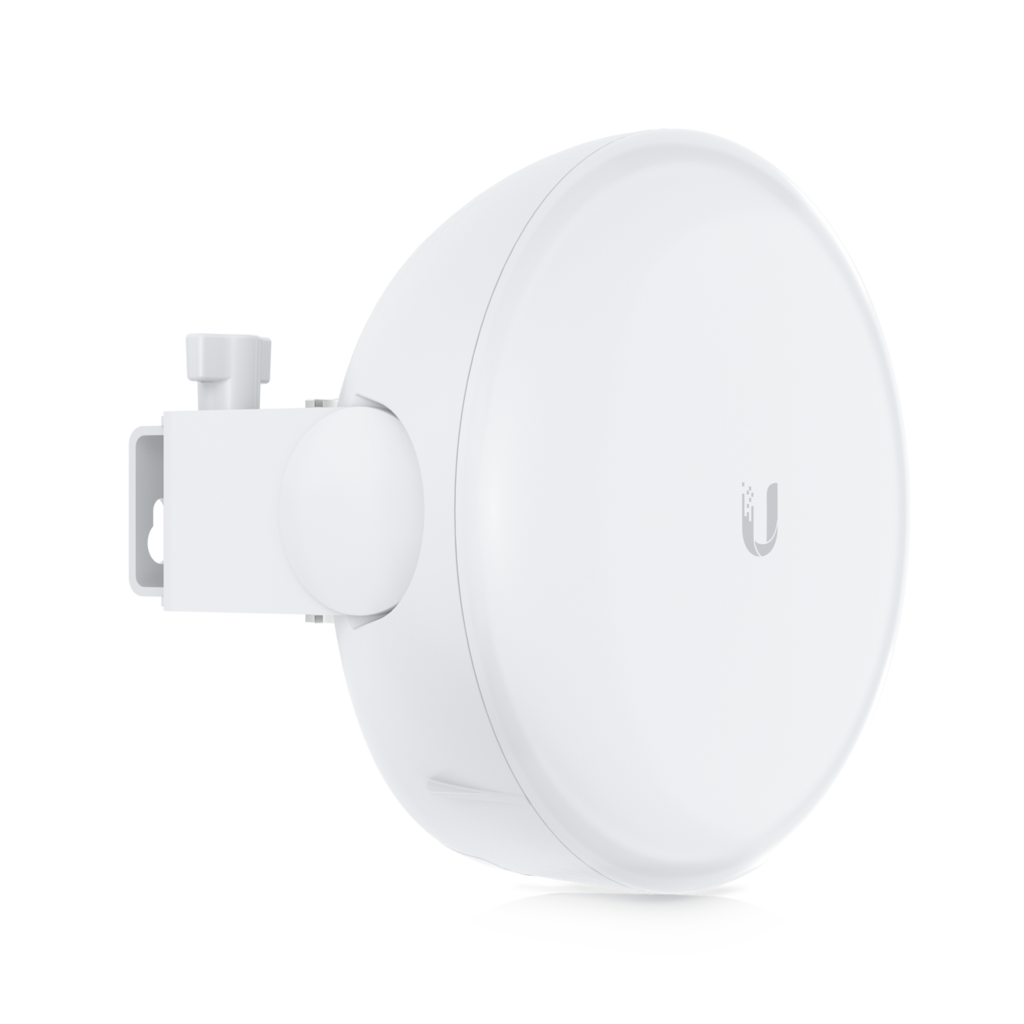

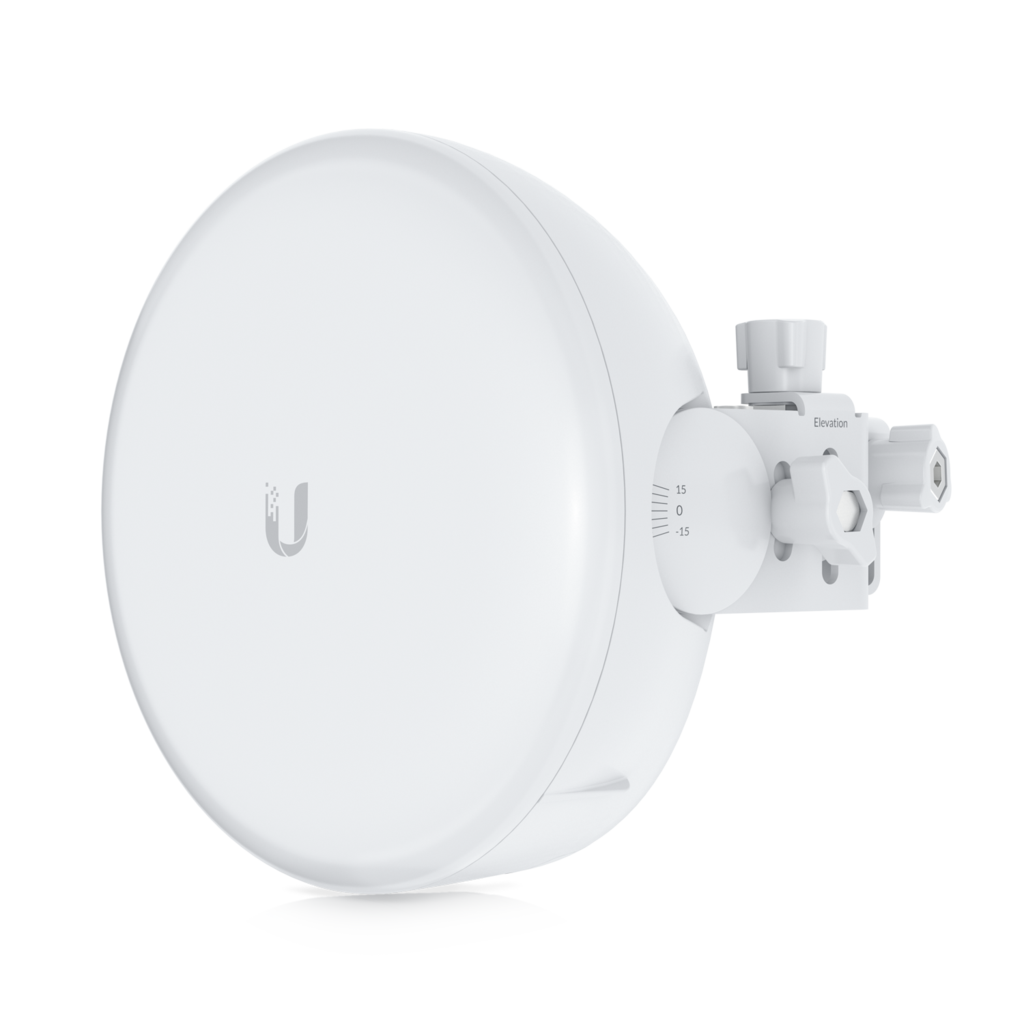

airMAX AC 60 GHz Radio System with True Duplex Gigabit Performance.
GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™️ Mobile app via Bluetooth.
Features:
-
Low-Interference 60 GHz Spectrum
-
35 dBi Antenna Gain with Integrated Reflector
-
1.5+ Gbps Bidirectional Throughput with Low Latency
-
Long Range, up to 1.5 km
-
link.ui.com Planning Support
- Quick Setup Using the UISP™️ App via Bluetooth
Product Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø155 x 137 mm (Ø6.1 x 5.4") |
| Weight | 1kg (2.2 lb) |
| Enclosure Materials | UV Resistance Polycarbonate, Stainless Steel |
| Mount Materials | Metal |
| Wind Loading | 50 N at 200 km/h (11.24 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking Interface | 10/100/1000 Mbps Ethernet RJ45 |
| Management Interface | Ethernet In-Band Bluetooth |
| RF Connections | Internal |
| Max. Power Consumption | 11W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter 24V, 1A for using Motor Accessory |
| Supported Voltage Range | 22 to 26VDC |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | FCC, IC, CE |

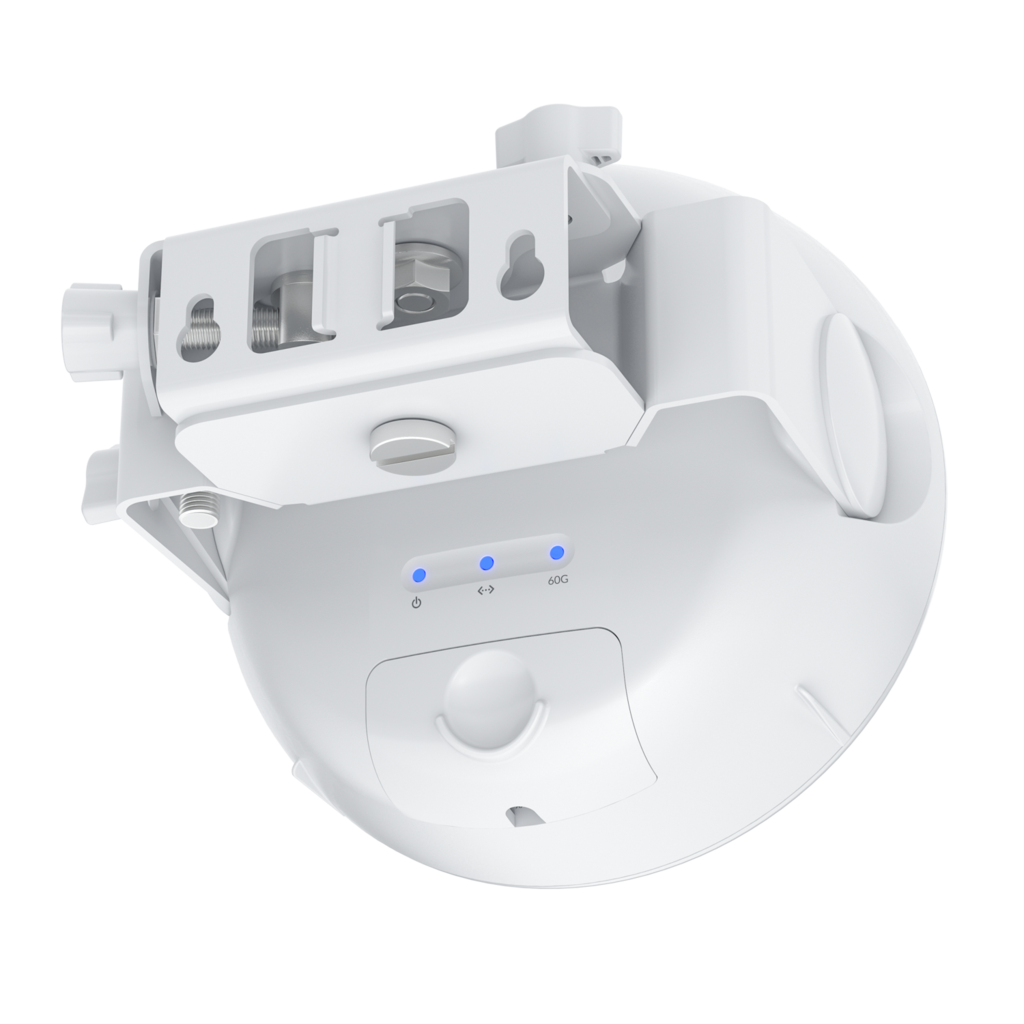

| LEDs | |
| Power | Flashing White: Bootup in Progress White: Not Connected to Ubiquiti® Internet Service Provider (UISP™) Blue: Connected to UISP |
| Ethernet | Flashing Blue: Ethernet Traffic Detected |
| 60GHz | Blue: Active Connection |
| Software | |
| OS | airOS® |
| Operating Modes | PtP as Access Point or Station |
| Ubiquiti Specific Features | Integrated 60 GHz Radio, Discovery Protocol |
| Security | WPA2 AES Only |
| Dashboard | Yes |
| Wireless Settings | Yes |
| Network Settings | Yes |
| System | Yes |
| Services | UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery |
| Tools | Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test |
| Software Management | Bluetooth Management for Easy Setup Over UISP™ App WEB UI |
| Minimum Software Requirements | Any Modern Web Browser/iPhone/Android |
| RF | |
| Operating Frequency* | 57,000 - 66,000 MHz * Depends on regulatory region. |
| Max. Conducted TX Power | 17 dBm |
| Channel Bandwidth | 2160 MHz |
| Operating Channels | 58320, 60480, 62640, 64800 MHz |
| Antenna Gain | 35 dBi |
| Beamwidth | HPOL: NaN (The Antenna is Only Vertically Polarized) VPOL: 3° Elevation: 3° |
| Management Radio | 2400 - 2483.5 MHz |
| Electrical Downtilt | 0° |
