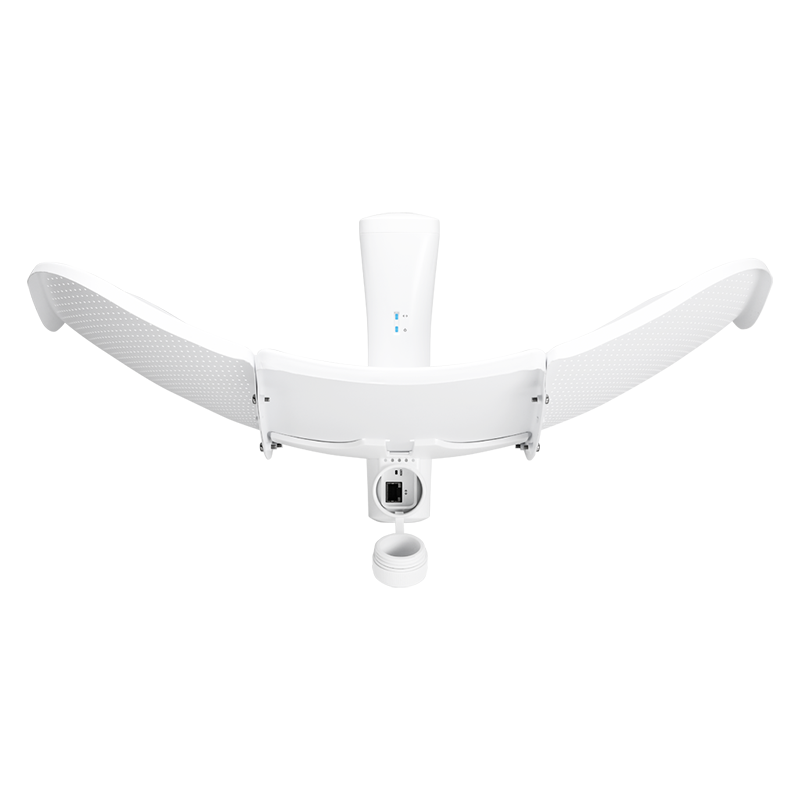

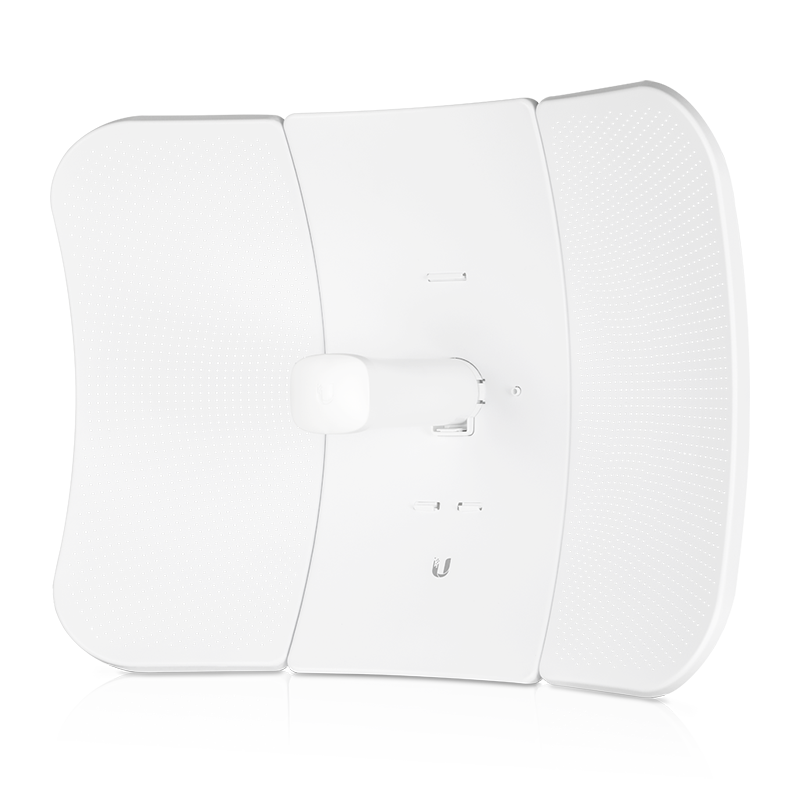

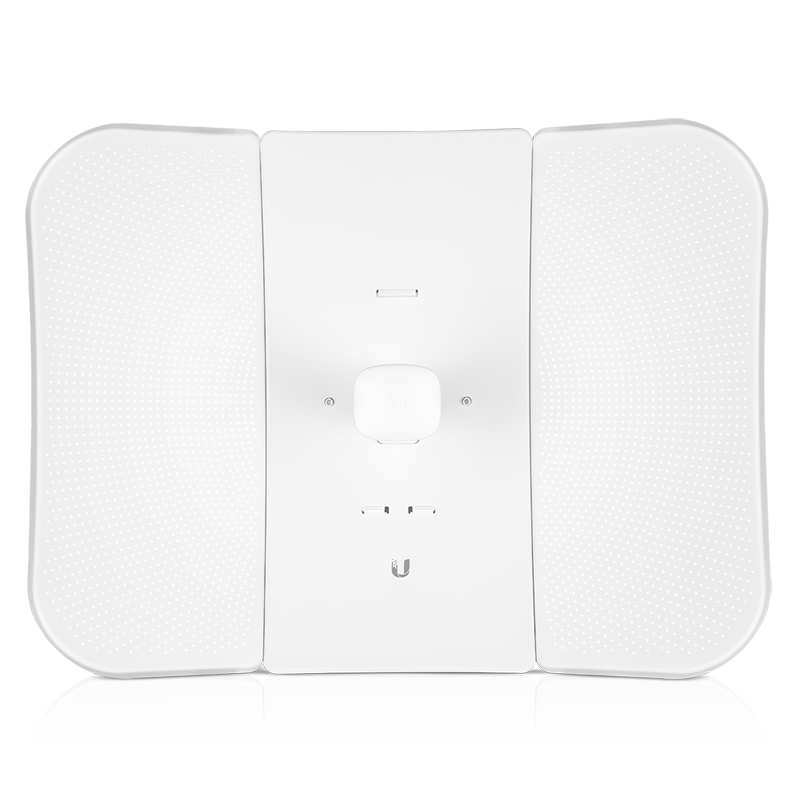

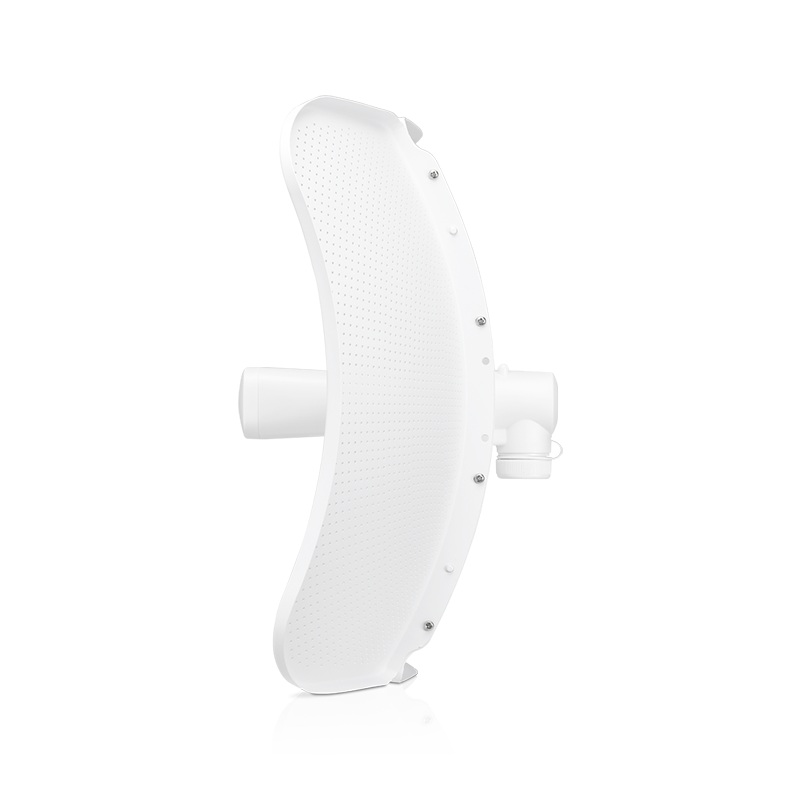

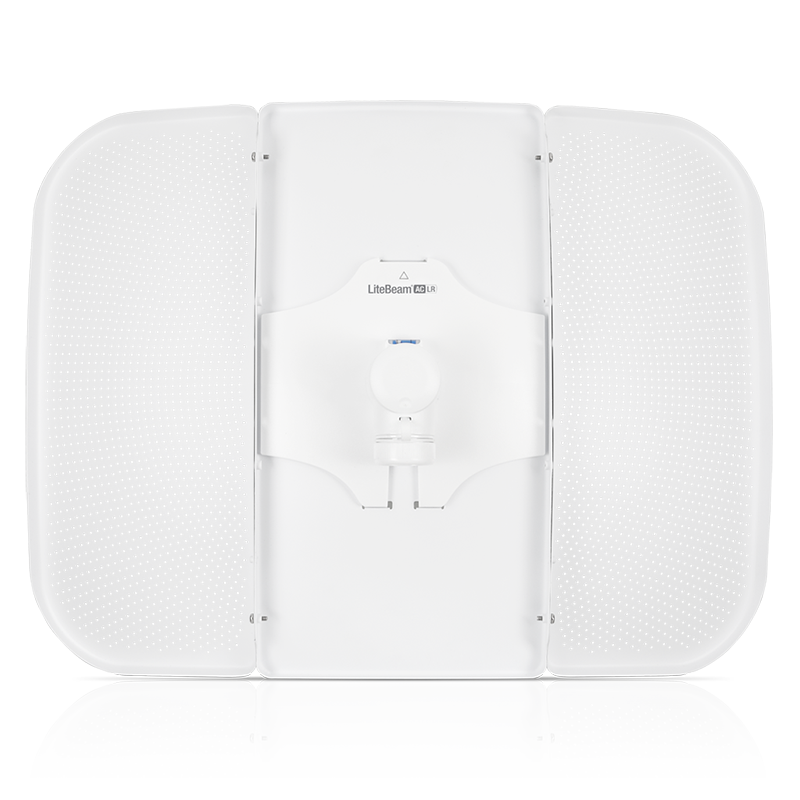

Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station

UbiquitiSKU: LBE-5AC-LR

Sale price$207.90

Tax included

Only 13 units left


The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.


  • Improved Radio Design
  • Improved Mounting
  • Improved Surge Protection
  • Management WiFi Radio/UISP mobile app
  • AirOS 8

UISP mobile app for Android and iOS

Product Specifications

Dimensions512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
WeightWithout Mount: 1.360 kg (2.998 lb), With Mount 1.735 kg (3.825 lb)
Power Supply24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption7W
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range24V ± 10%
Gain26 dBi
Networking Interface(1) 10/100/1000 Ethernet Port
Processor SpecsMIPS 74Kc
Memory64 MB DDR2
LEDsPower, Ethernet
Channel SizesPtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Enclosure CharacteristicsReflector (Aluminium) / Plastic: PC
MountingPole-Mounting Kit (Included)
Wind Loading550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
ESD/EMP Protection± 24 kV Contact / Air
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
