Ubiquiti airMAX NanoStation AC 5 GHz Radio

UbiquitiSKU: NS-5AC

Price:
Sale price$220.83

Tax included

Stock:
Sold out

Description

UISP-supported WiFi radio designed for point-to-point and customer premises applications.

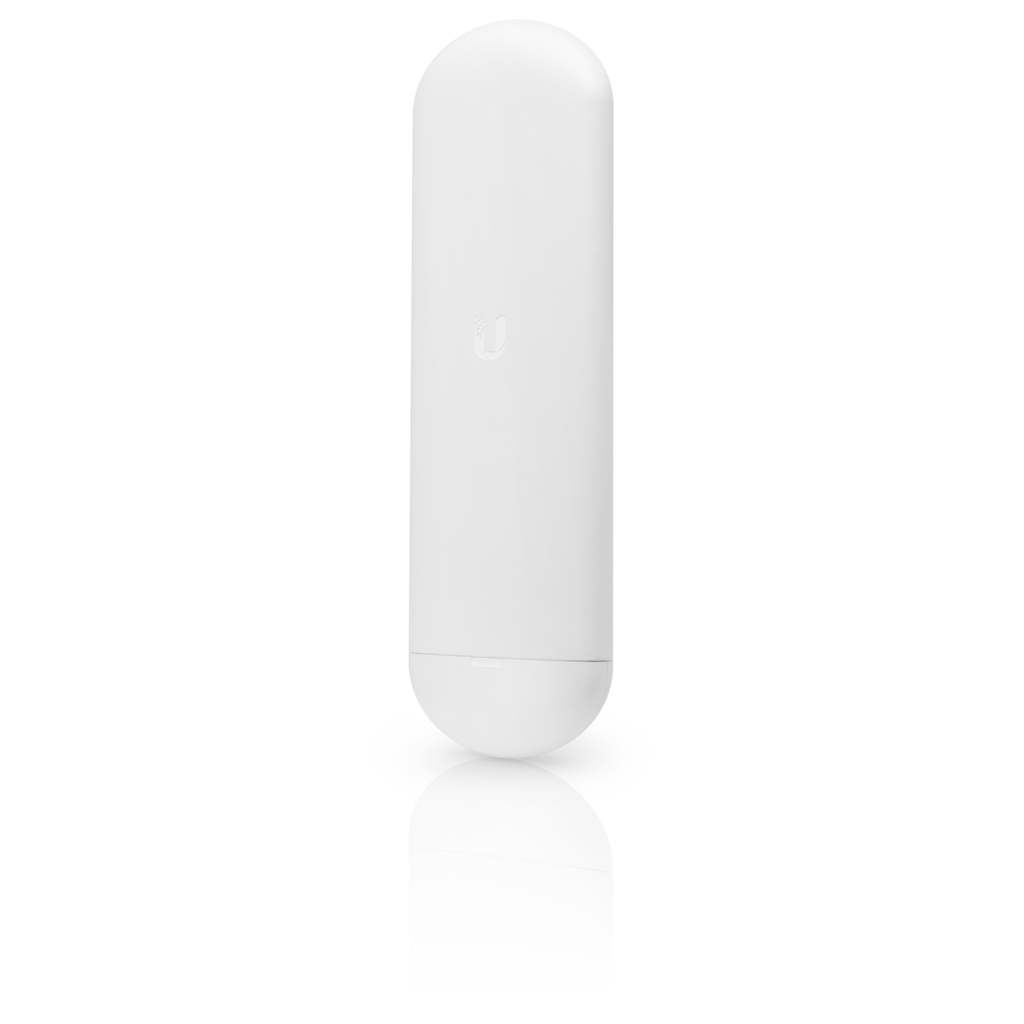

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Features:

  • New antenna
  • Improved design
  • Management Wi-Fi Radio/UISP mobile app
  • AirOS 8

UISP mobile app for Android and iOS

Product Specifications

NS-5AC
Dimensions
With Mount
Without Mount

257 x 84 x 30 mm (10.12 x 3.31 x 1.18")
257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
Weight233 g (8.22 oz)
Gain16 dBi
Max. Power Consumption9W

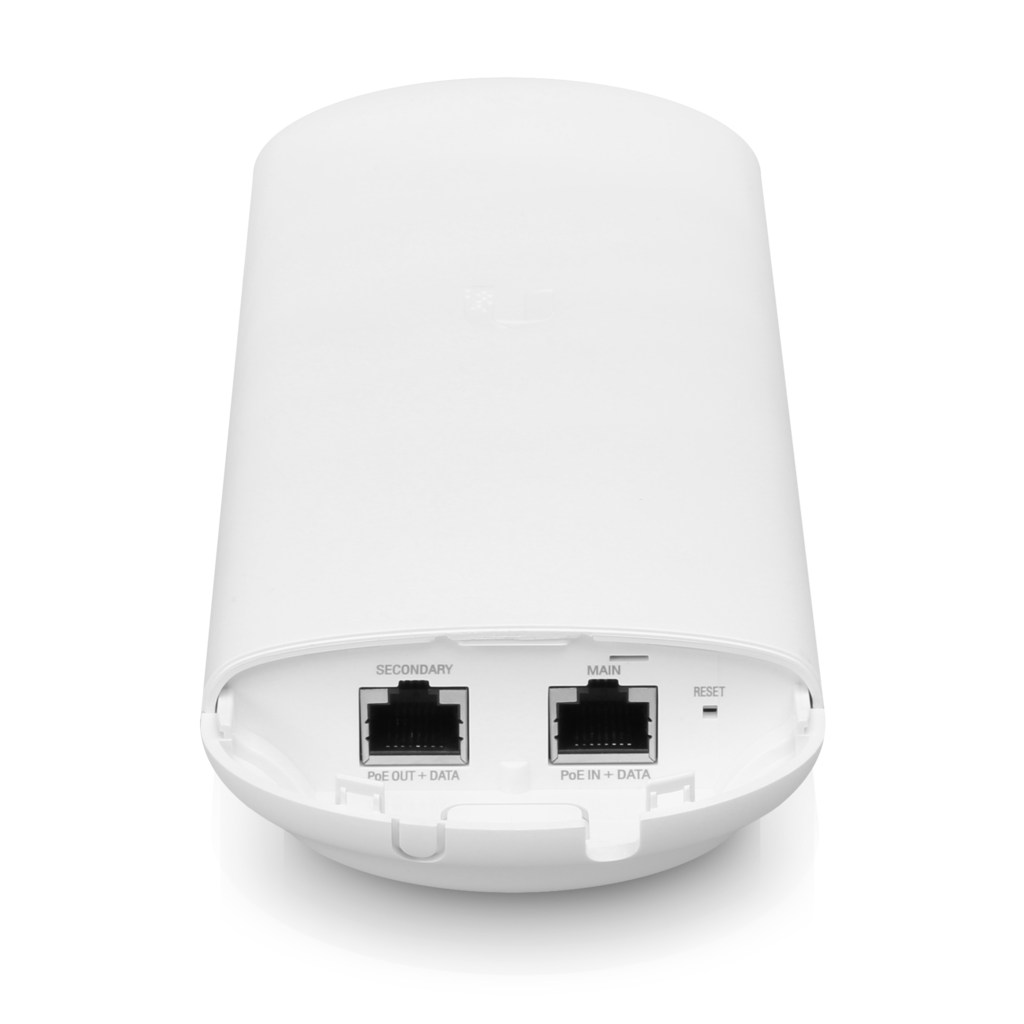

Networking Interface(2) 10/100/1000 Ethernet Ports
LEDsPower, ETH1, ETH2, (4) Signal Strength
Power Supply24VDC, 0.5A Gigabit PoE Adapter
Power Method802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range24V ±10%

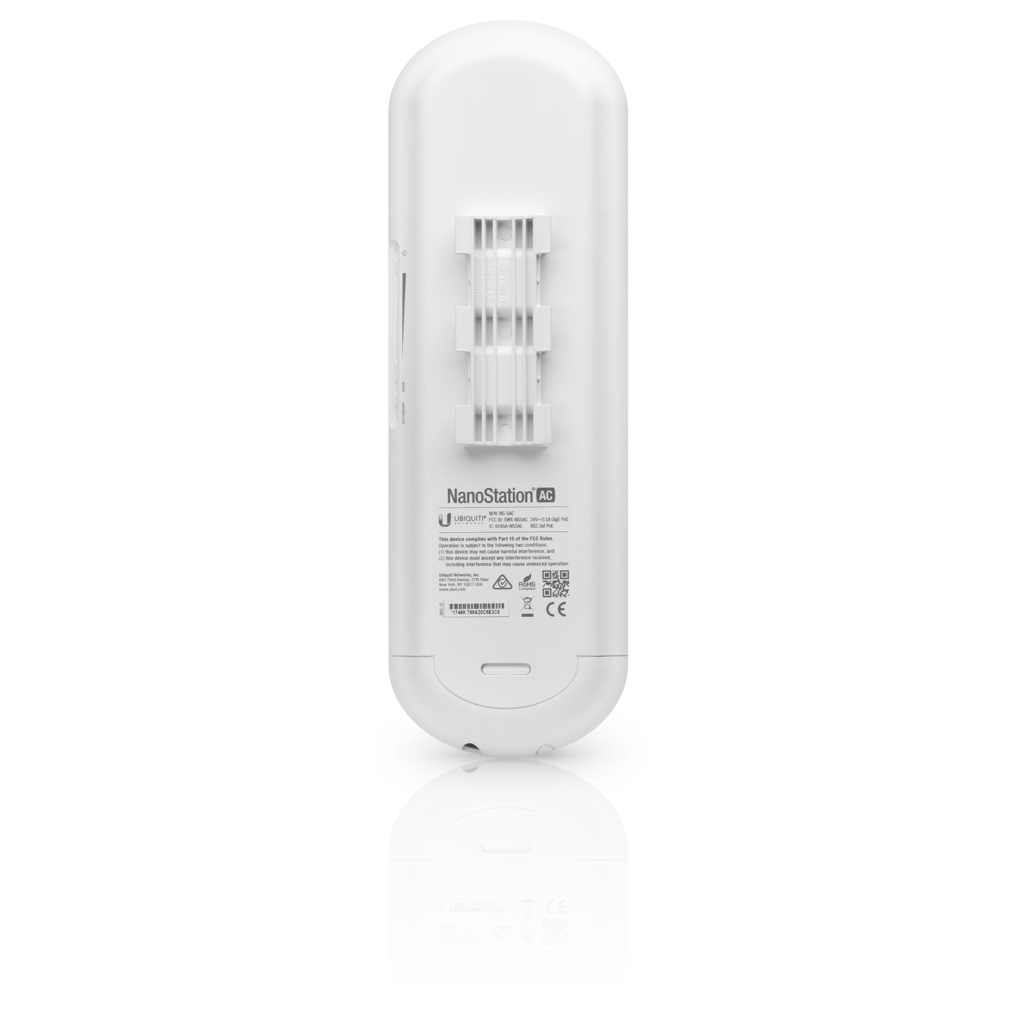

MountingPole and Wall Mounting Kits Included
ESD/EMP Protection±24 kV Contact/Air
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Noncondensing
Operating Frequency (MHz)
Worldwide 5150-5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250
5250-5350
5240-5725
5725-5850
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462
