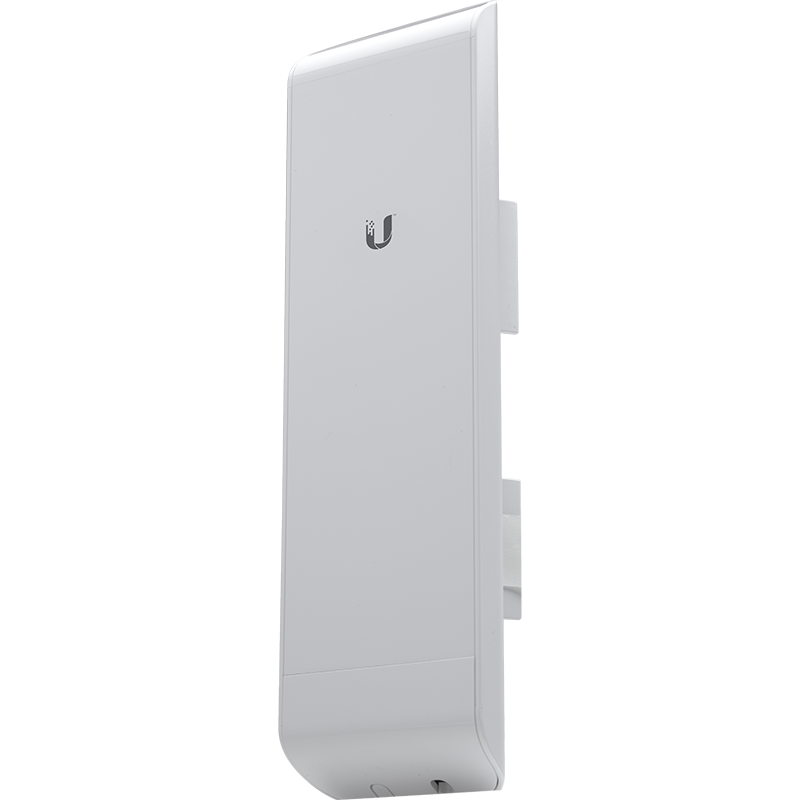

Ubiquiti airMAX NanoStation M2

UbiquitiSKU: NSM2

Price:
Sale price$157.08

Tax included

Stock:
In stock

Description

Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Product Specifications

NSM2
Dimensions 294 x 31 x 80 mm
(11.57 x 1.22 x 3.15")
Weight 400 g
(14.11 oz)
Power Supply (PoE) 24V, 0.5A 24V, 0.5A
Max. Power Consumption 5.5W 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency 2412-2462 MHz
Gain 10.4-11.2 dBi

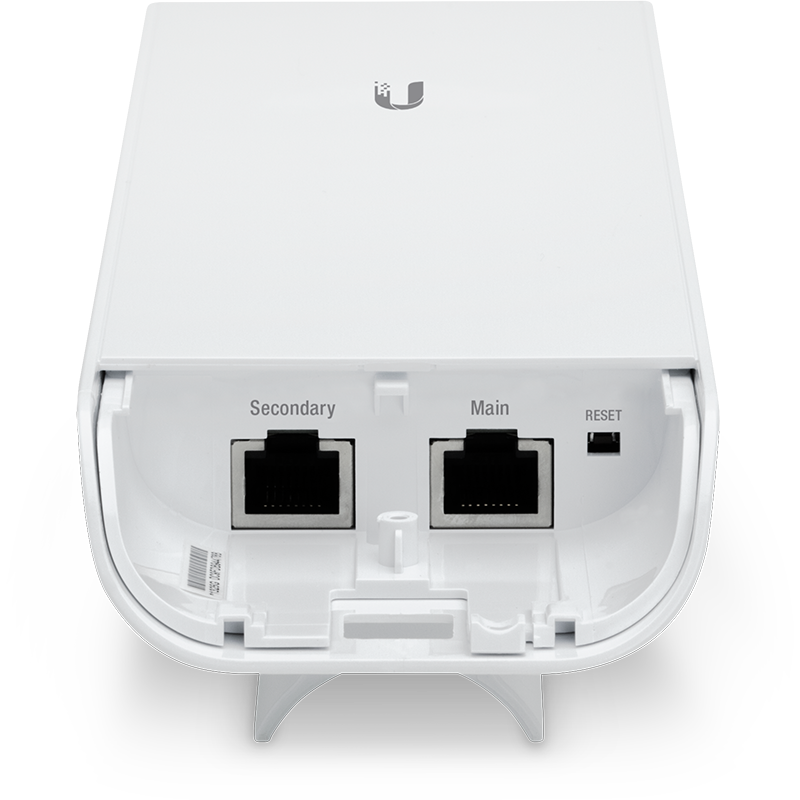

Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Frequency 2.4 GHz
Cross-pol Isolation 23 dB Minimum
Max. VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic

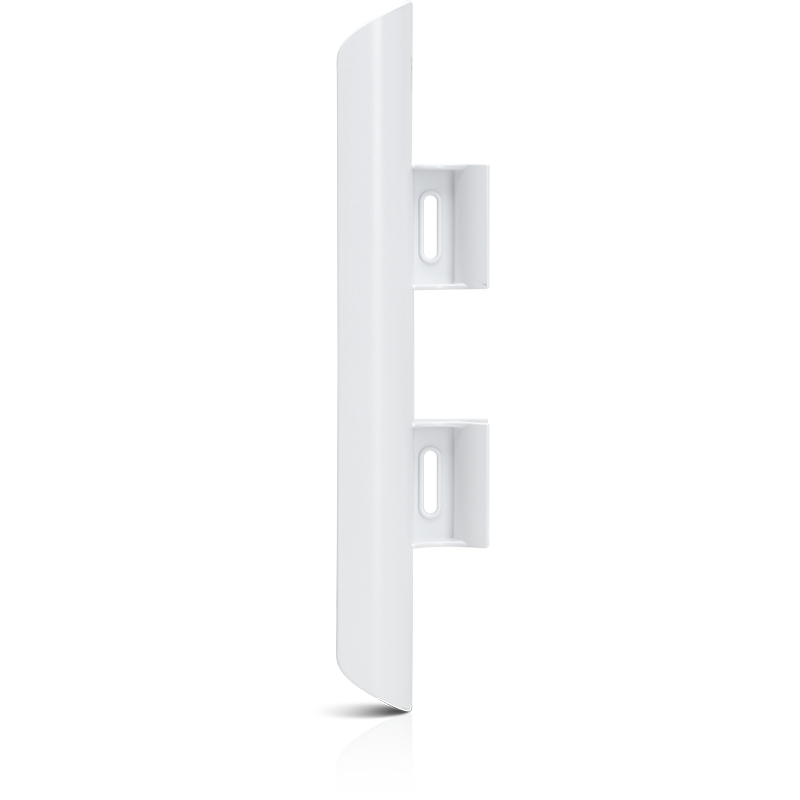

Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
