Description

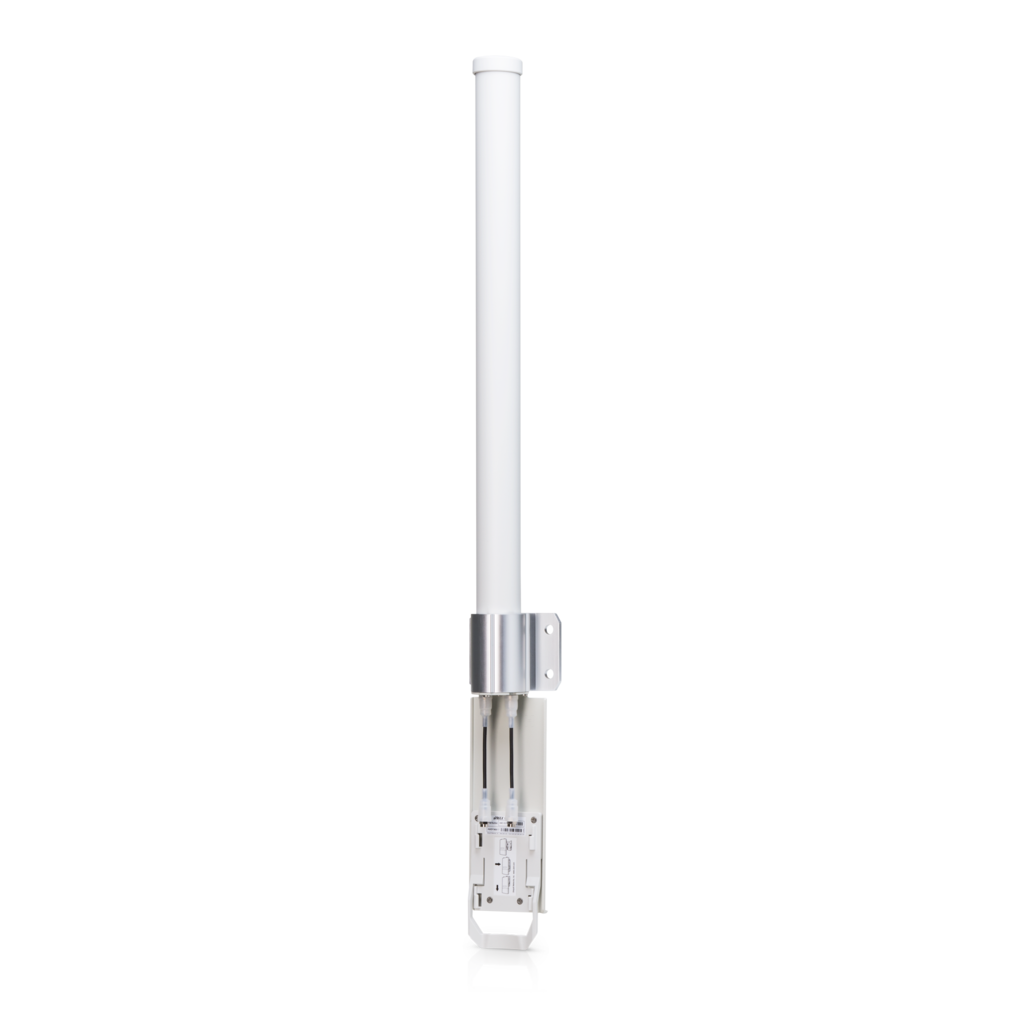

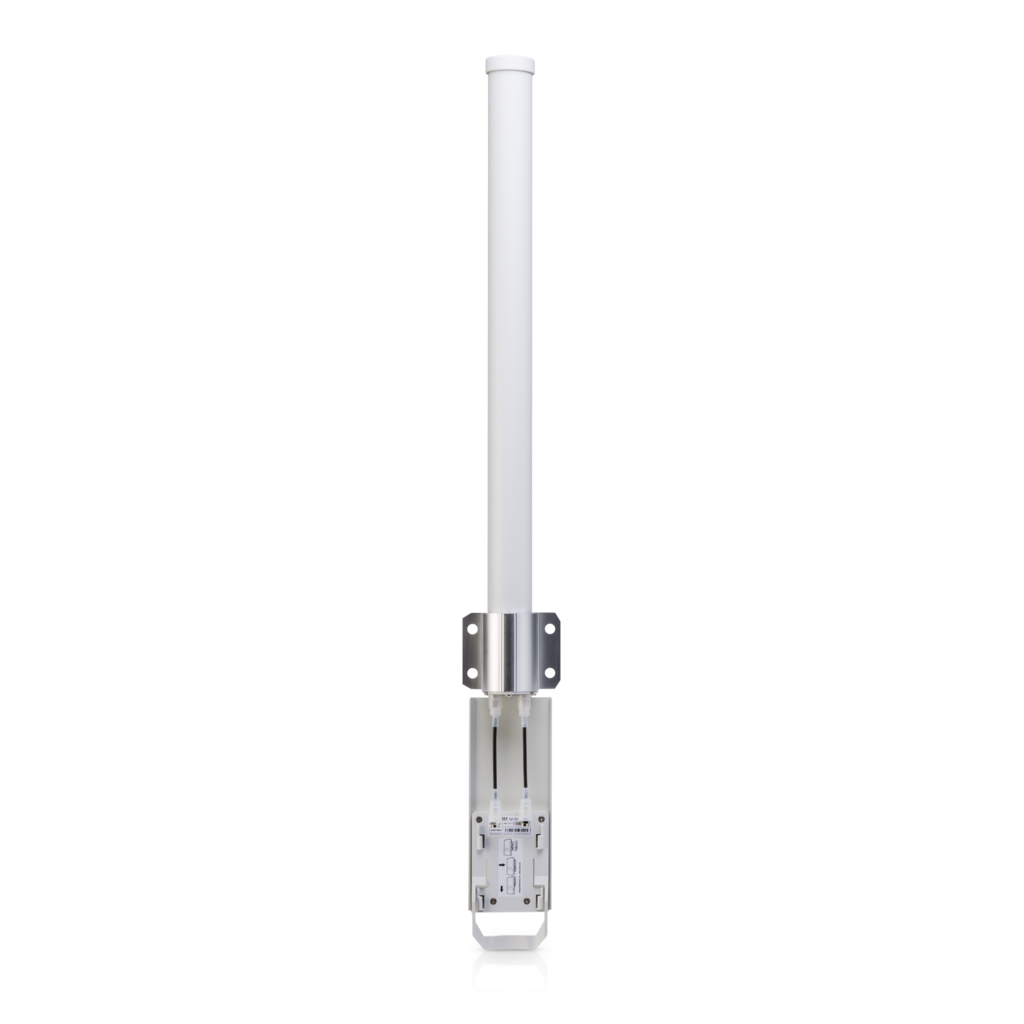

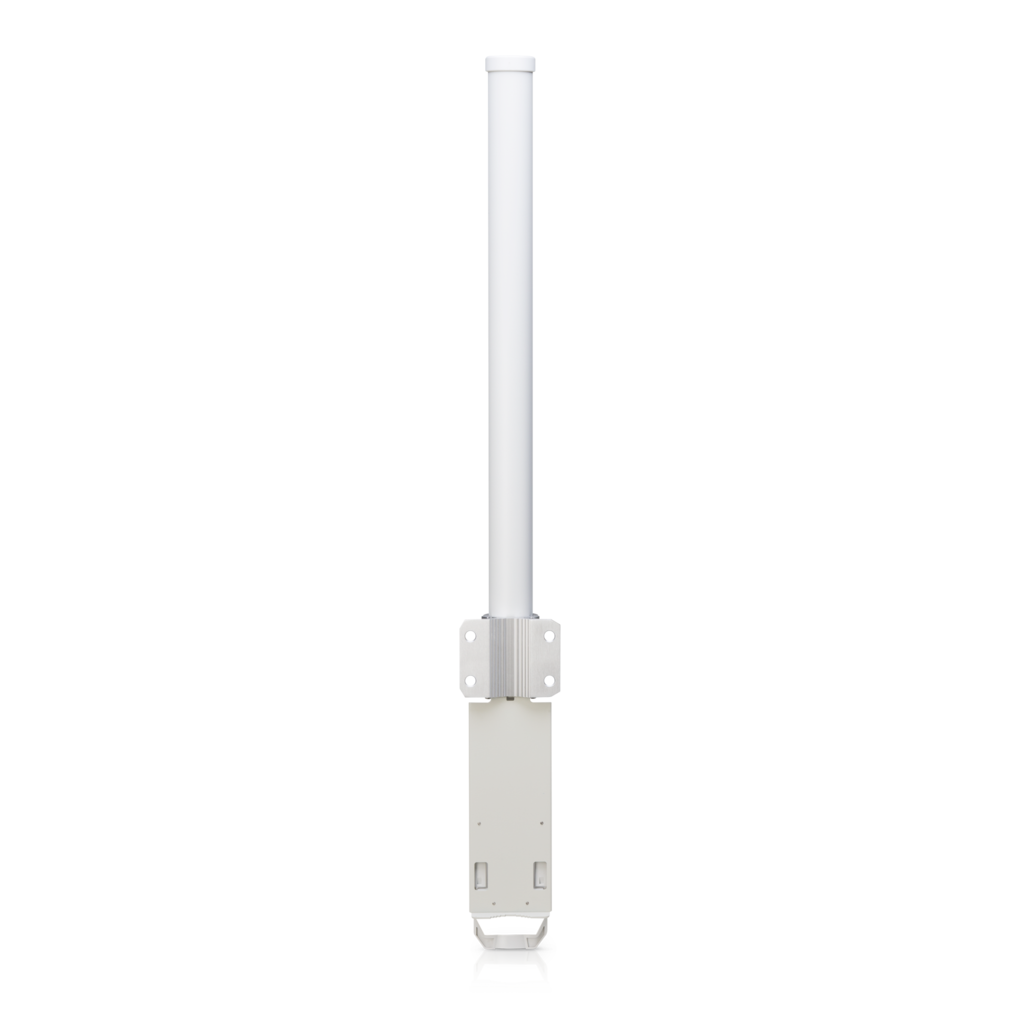

The AMO-5G13 is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Product Specifications
| AMO-5G13 | |
|---|---|
| Dimensions* | 799 x 90 x 65 mm (31.46 x 3.54 x 2.56") |
| Weight* | 0.82 kg (1.81 lb) |
| Frequency Range | 5.45 - 5.85 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max VSWR | 1.5:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
