Description
5 GHz WiFi bridge with a 450+ Mbps Real TCP/IP throughput rate and enhanced surge protection.

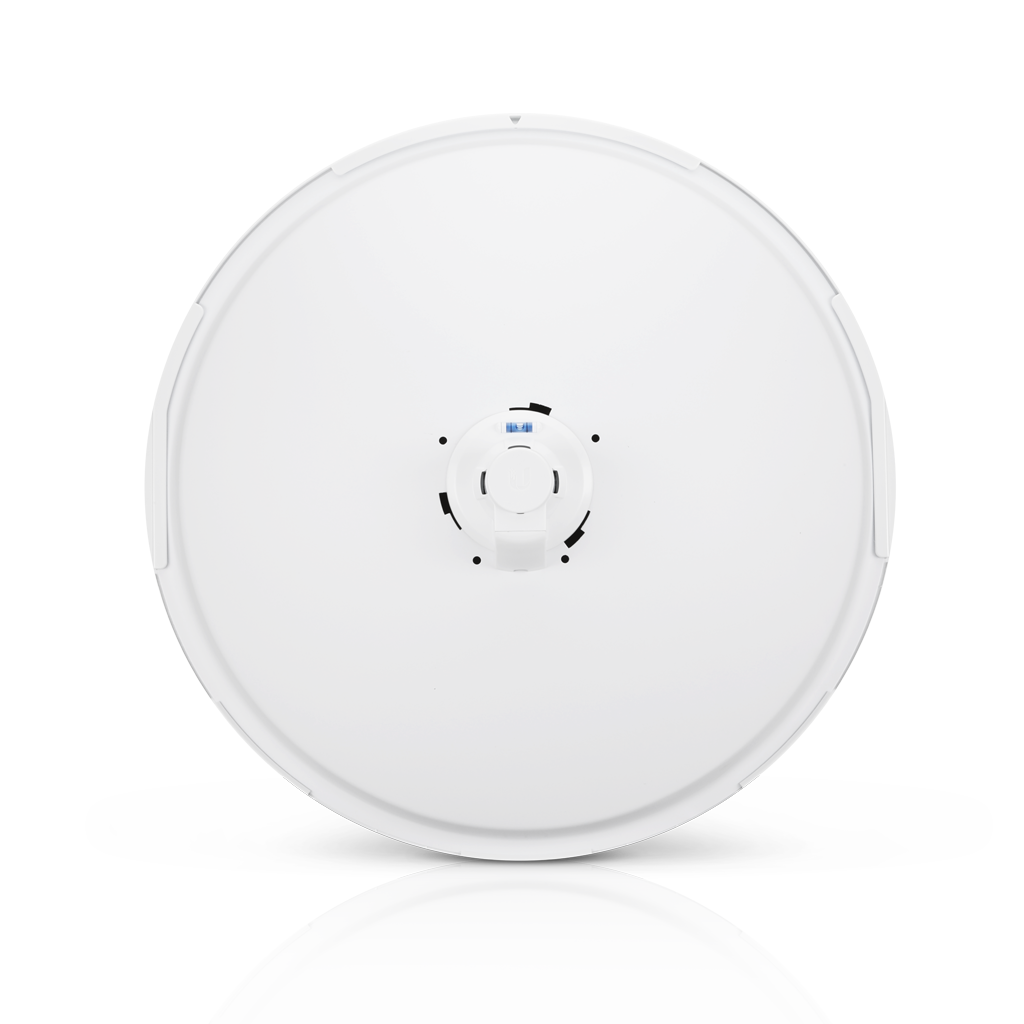

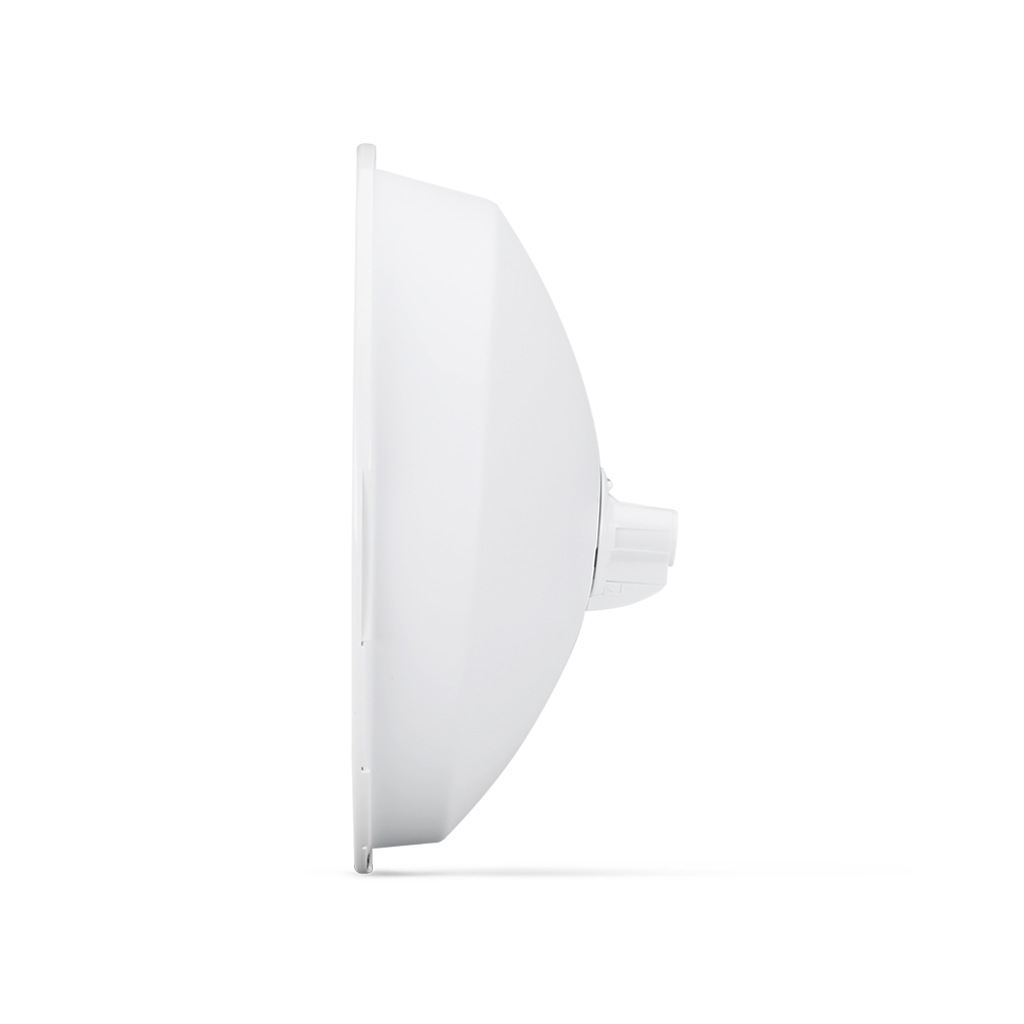

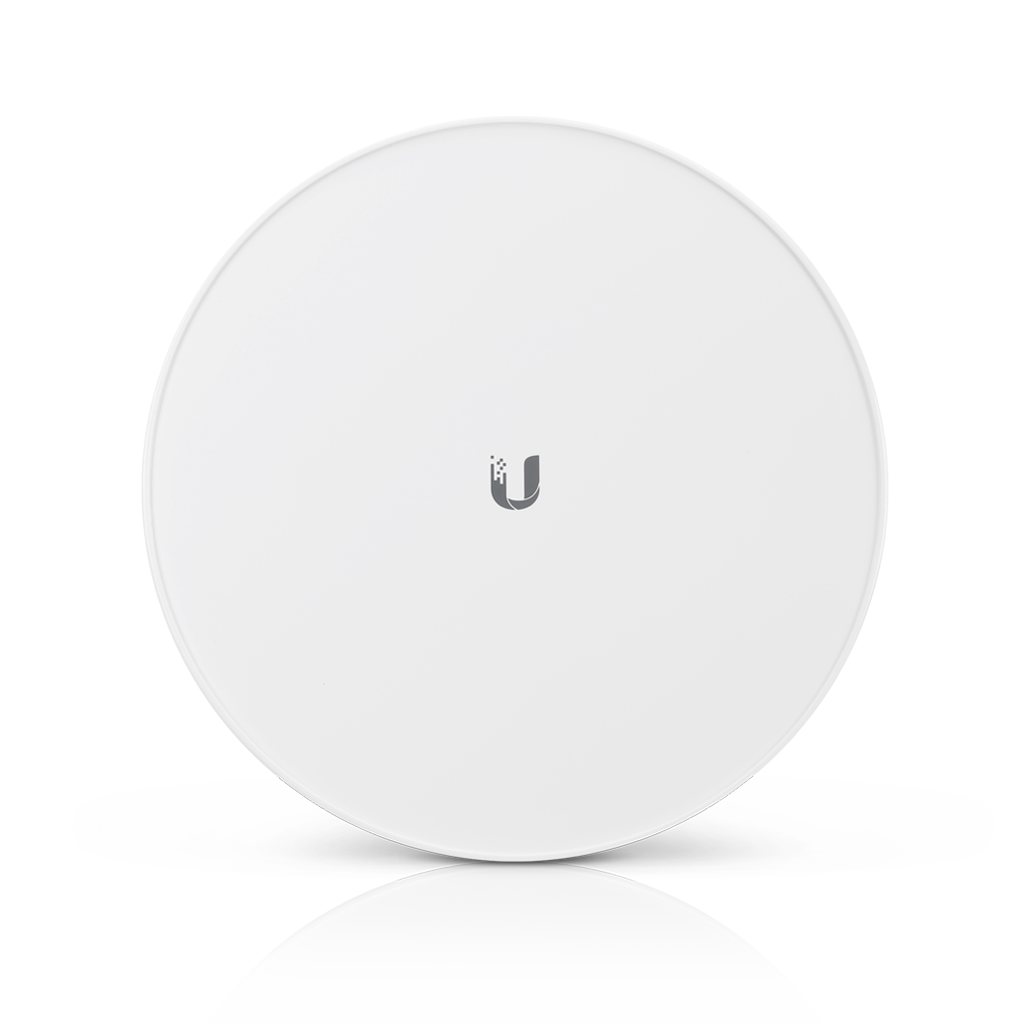

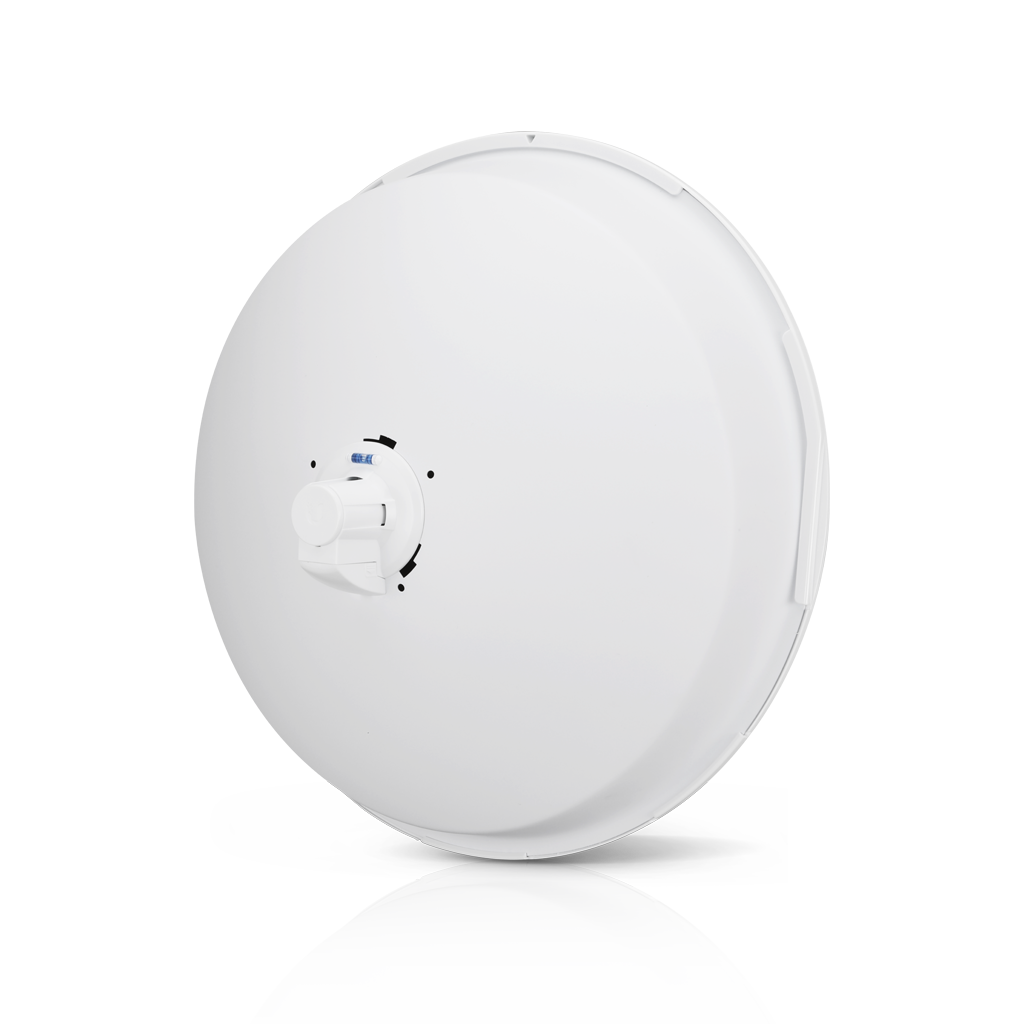

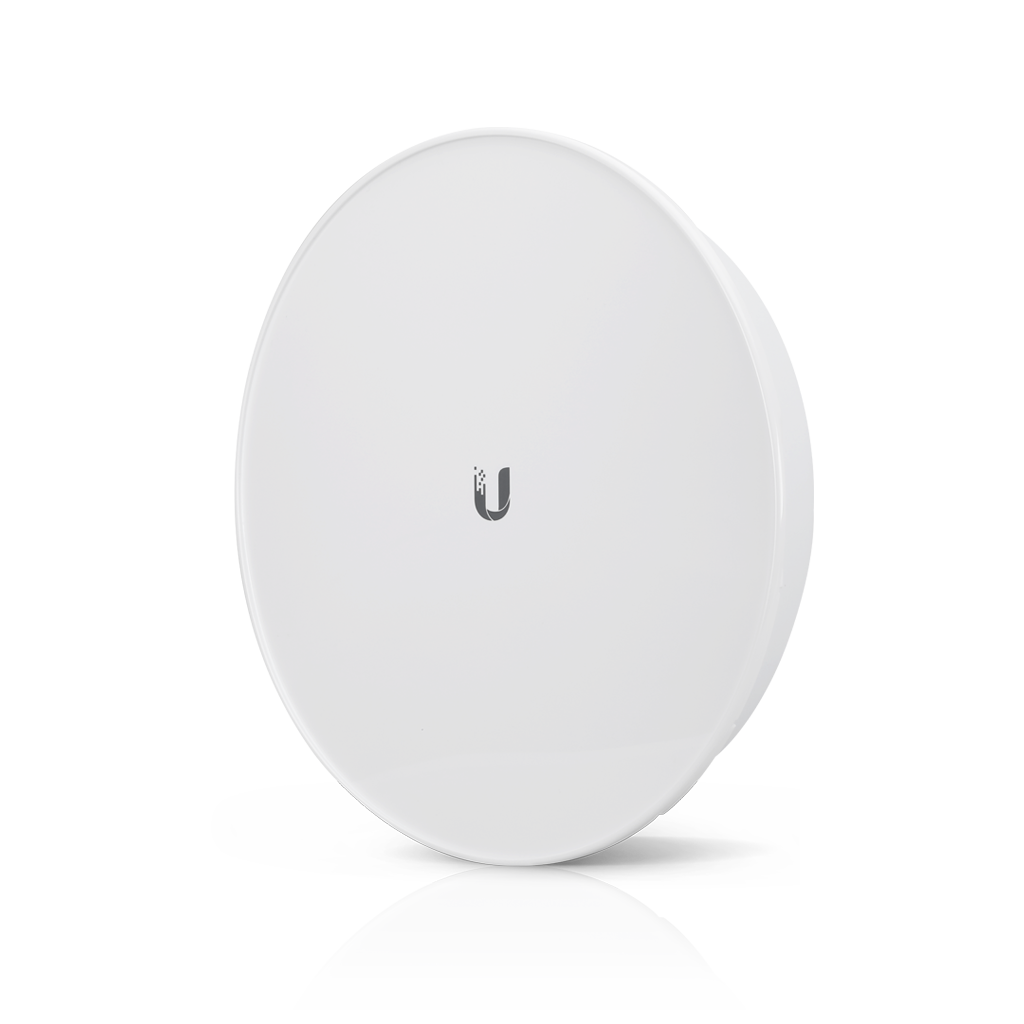

The airMAX PowerBeam AC 5 GHz ISO Bridge supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection. It features a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO from nature's harshest elements. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO delivers improved noise immunity in co-location deployments.
Product Specifications
| PBE-5AC-Gen2 | ||
|---|---|---|
| Dimensions | 420 x 420 x 230 mm (16.54 x 16.54 x 9.06") |
|
| Weight | 2.22 kg (4.89 lbs) |
|
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) | |
| Max. Power Consumption | 8.5W | |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) | |
| Supported Voltage Range | 20 to 26VDC | |
| Gain | 25 dBi | |
| Networking Interface | (1) 10/100/1000 Ethernet Port | |
| Processor Specs | MIPS 74Kc | |
| Memory | 64 MB | |
| LEDs | Power, Ethernet, (4) Signal Strength | |
| Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
|
| Enclosure Characteristics Antenna Feed Dish Reflector |
Outdoor UV Stabilized Plastic Powder-Coated SPCC |
|
| Mounting | Pole-Mounting Kit (Included) | |
| Wind Loading | 380 N @ 200 km/h (85.4 lbf @ 125 mph) | |
| Wind Survivability | 200 km/h (125 mph) | |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | |
| Operating Temperature | -40 to 70° C (-40 to 158° F) | |
| Operating Humidity | 5 - 95% Condensingtd | |
| RoHS Compliance | Yes | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 | |
| Vibration Test | IEC 68-2-6 | |
| Temperature Shock Test | IEC 68-2-14 | |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 | |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 | |
| Certifications | CE, FCC, IC | |
| Operating Frequency (MHz) | ||
| Worldwide | 5150 - 5875 | |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
|
| Management Radio (MHz) | ||
| Worldwide | 2412 - 2472 | |
| USA | 2412 - 2462 |
