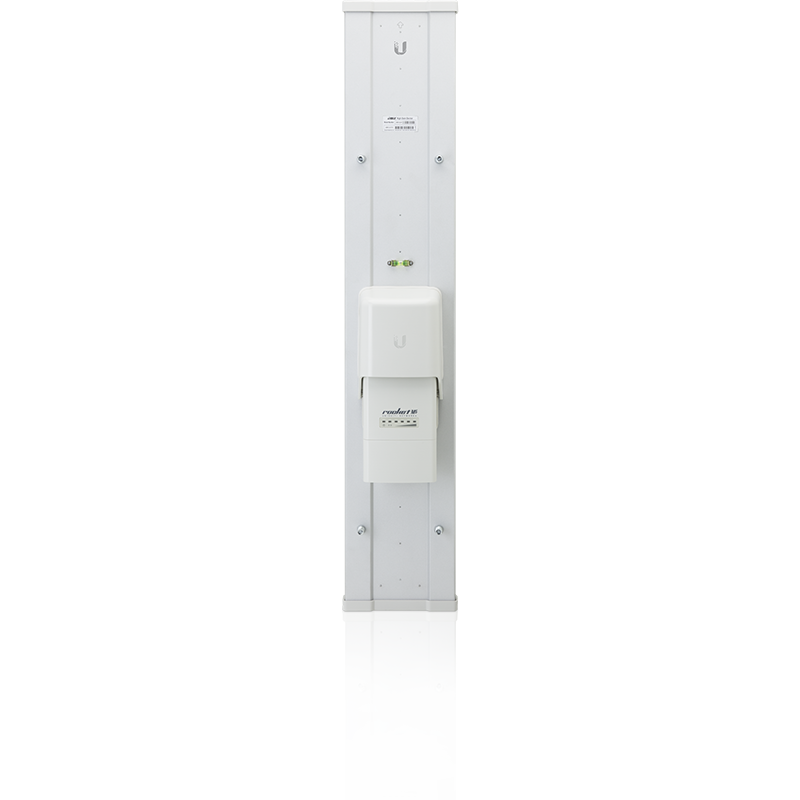

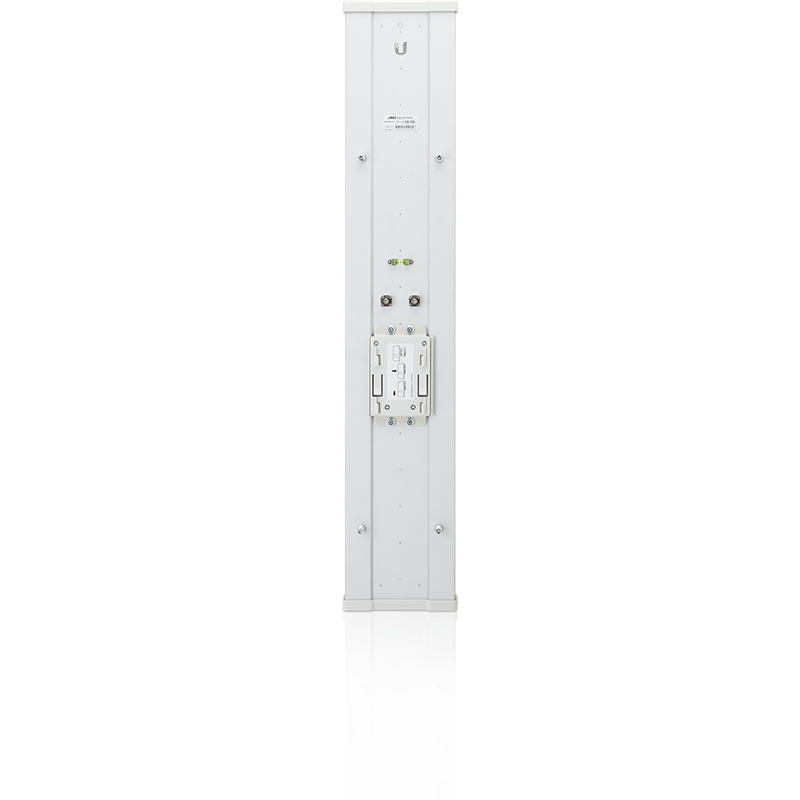

Ubiquiti airMAX Sector 5 GHz, 90º, 20 dBi Antenna

UbiquitiSKU: AM-5G20-90

Sale price$239.04

Tax included

In stock


airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specifications

Dimensions (mm) 700 x 135 x 70
Weight 5.9 kg
Frequency Range 5.15 - 5.85 GHz
Gain 19.4 - 20.3 dBi
HPOL Beamwidth 91° (6 dB)
VPOL Beamwidth 85° (6 dB)
Electrical Beamwidth
Electrical Downtilt
Max. VSWR 1.5:1
Wind Survivability 125 mph
Wind Loading 26 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
