Description

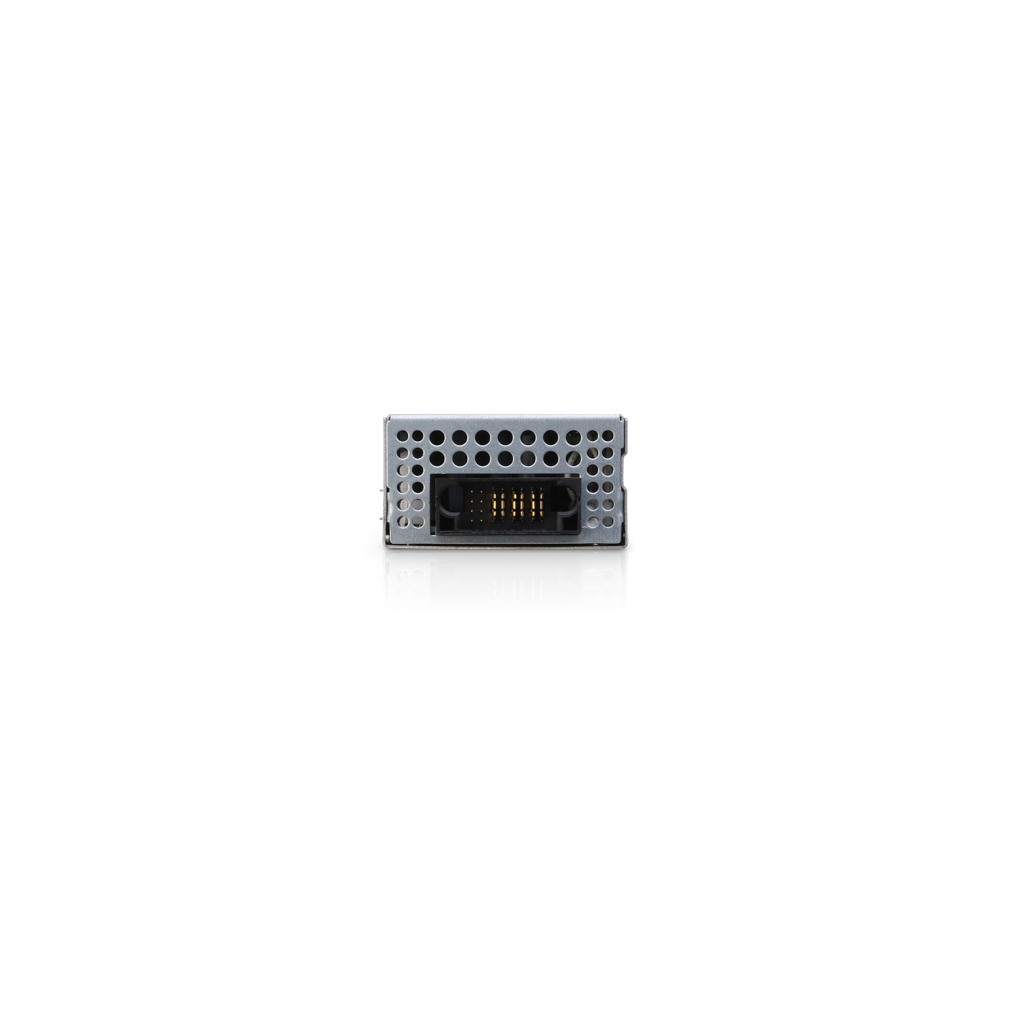

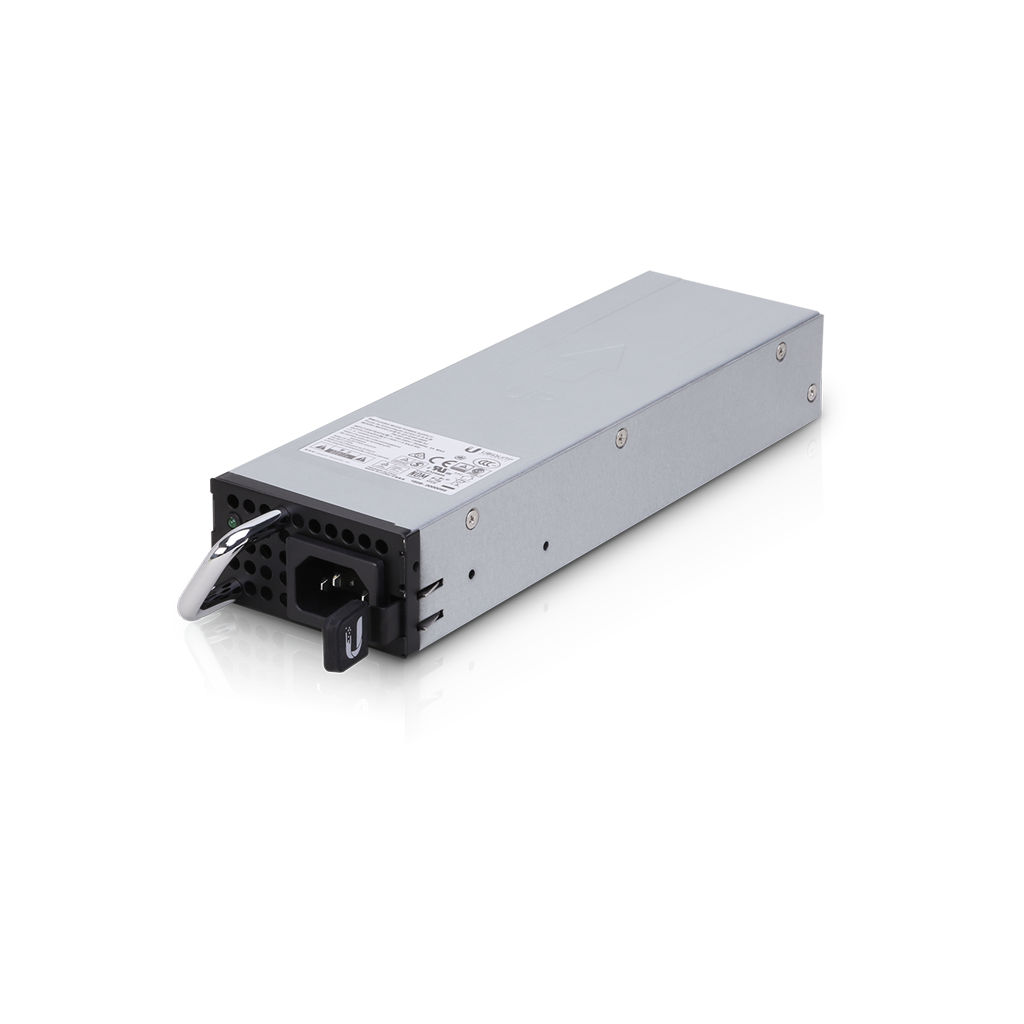

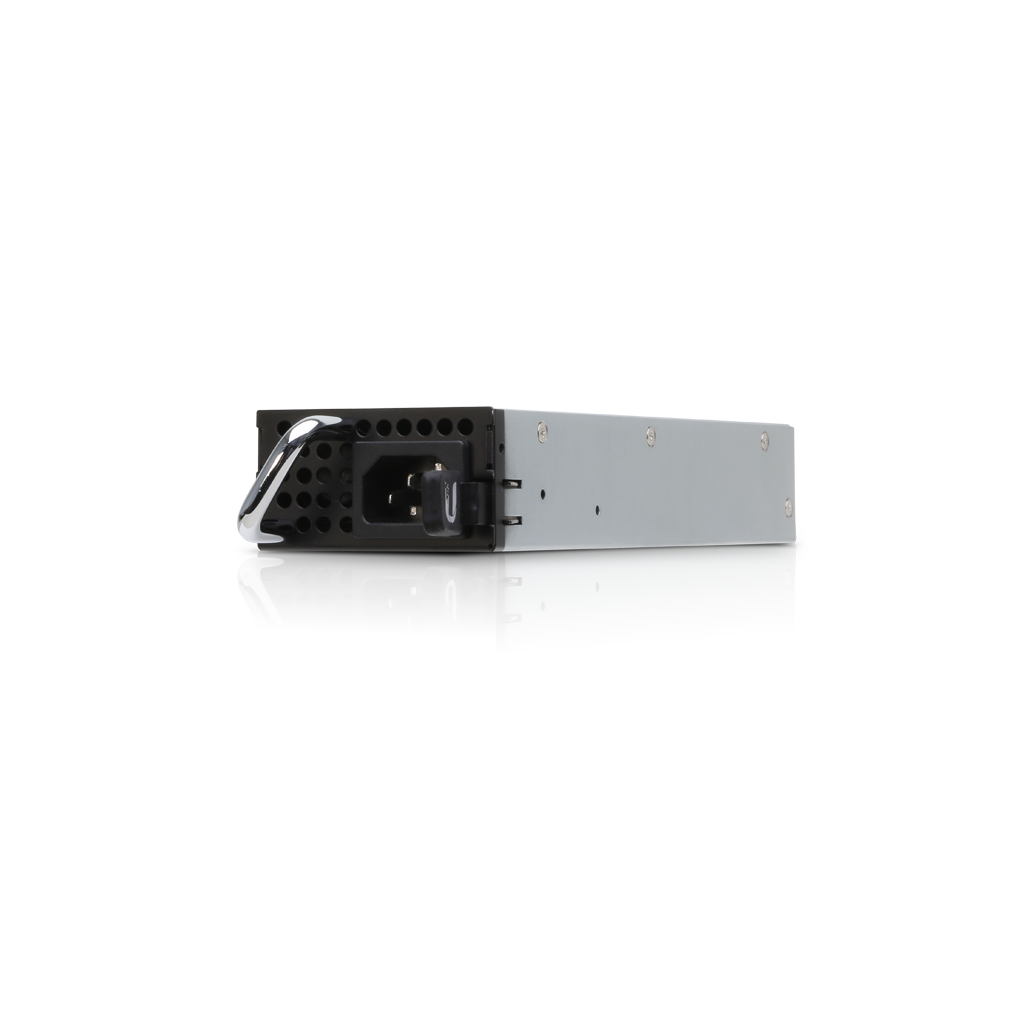

The EP-54V-150W-AC is an AC to DC PSU module designed for use with the EdgePower EP-54V-150W.
It can be used as an auxiliary PSU to deliver an additional 150W of power output, or as a backup to the primary PSU.
Features:
- Modular AC to DC Power Supply Unit
- 54V, 150W Maximum Power Output
- Compatible with EdgePower EP-54V-150W
- Increase Total Power Output up to 300W
Product Specifications
| EP-54V-150W-AC) | |
|---|---|
| Power Method | AC/DC 150W for 110 - 240VAC Input, DC Terminal Block for 54V Output |
| Power Supply | AC/DC 150W for 110 - 240VAC Input |
| Voltage Range | AC/DC for 110-240VAC Input , 54V Output |
| LED | System On/Off |
| ESD/EMP Protection | Air ± 8kV; Contact ± 6kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
