Ubiquiti EdgePower Supply, 54V 72W

UbiquitiSKU: EP-54V-72W

Price:
Sale price$298.23

Tax included

Stock:
Only 6 units left

Description

The EdgePower 54V 72W is a UISP monitored and managed 54V DC power supply with integrated battery backup.

This product provides WISPs with an easy-to-install 54V redundant power supply that includes a management user interface, SNMP, and simple 12V battery backup charger with multiple 54V outputs for small sites.

Features:

  • 100-240VAC, 50-60 Hz, Universal Input

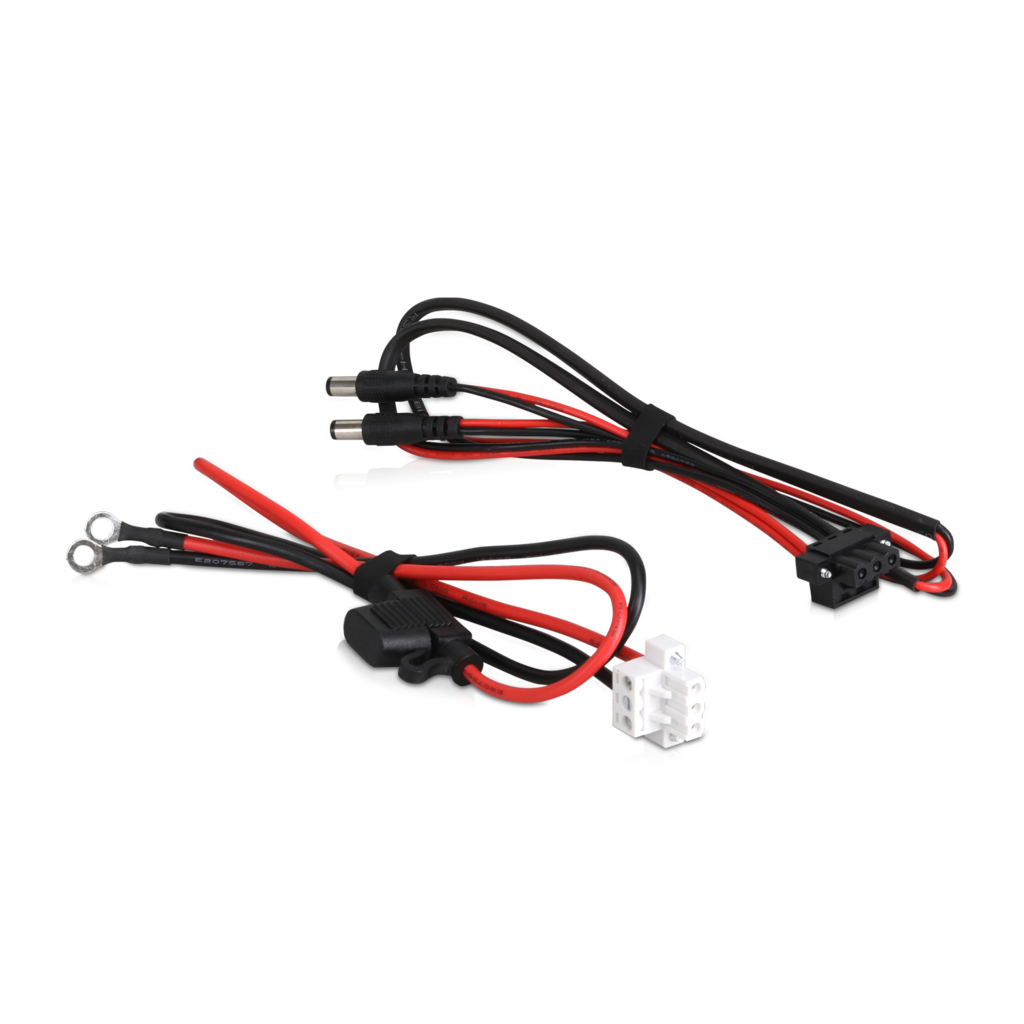

  • 54V DC Output (terminal connector with dual DC barrel jack included)
  • 12V Lead Acid Battery Input*
  • Two, 10/100 Ethernet, 54V Passive PoE output, switch-ports

*12V Battery not included

Product Specifications

EdgePower 54V 72W
Dimensions 115 x 192 x 43.7 mm
(4.53 x 7.56 x 1.72")
Weight 650 g
(1.43 lb)
Interfaces
Networking
Management

2) 10/100 Mbps RJ45 Ports
Ethernet In-Band
PoE Output (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-)
DC Output 54V, 1.3A
Power Method
AC Input
Battery Input

100-240VAC, 50-60 Hz, Universal Input
DC Terminal Block
Power Supply
AC Input
Battery Input

AC/DC 72W
12VDC Lead Acid Battery*
Max. Power Consumption
System
Output

2W
72W
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Activity
ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
