Description
Gigabit router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, a PoE input, and PoE passthrough port.

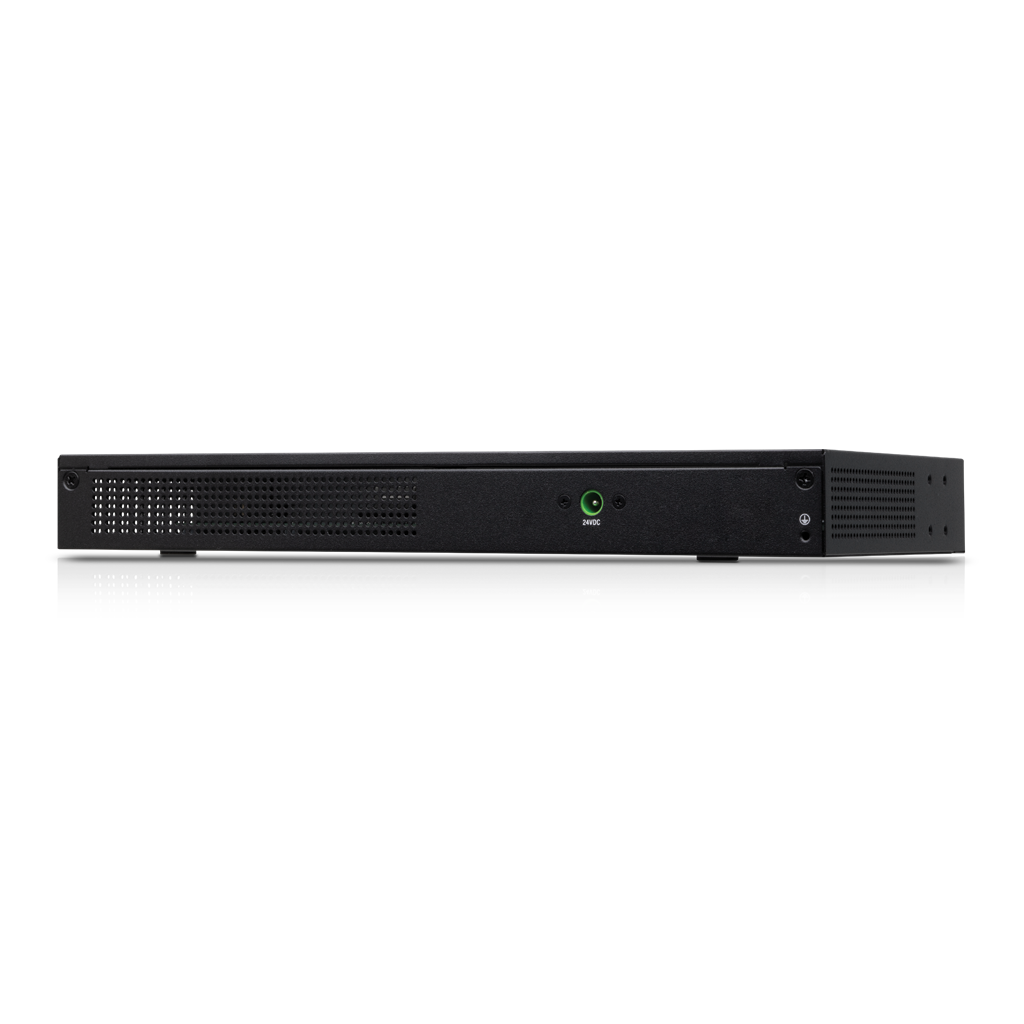

Featuring top price/performance value, the EdgeRouter™ 10X is an advanced Gigabit Router with PoE flexibility. Ten Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 10. The EdgeRouter 10X supports Layer-2 switching with one internal switch. For scalable configuration, use EdgeOS® or UISP.
Features:
- (10) Gigabit RJ45 Ports
- Support PoE Passthrough on Port 10 (software-selectable)
- Powered by 24V Passive PoE or External AC/DC Adapter
- Extended Input Voltage Range up to 30V
- Dual-Core, 880 MHz, MIPS1004Kc Processor
- 512 MB DDR3 RAM
- 512 MB NAND Flash Storage
- (1) Internal Switch
- Serial Console Port
- Wall or rack-mountable*
Product Specifications
| EdgeRouter 10X | |
|---|---|
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") |
| Weight | 600 g (1.32 lb) |
| Max. Power Consumption | 8W (Excludes PoE Output) |
| Power Method | External AC/DC Power Adapter, 24W (24V, 1A) (Included) 24V Passive PoE |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | DC: 9 - 30VDC 24V Passive PoE: 20 - 30V |
| Button | Reset |
| LEDs | Data Ports: Link/Activity, PoE (Port 9 Only) |
| Interfaces | Management:(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0) Networking: (10) 10/100/1000 RJ45 Ports |
| Layer 3 Forwarding Performance | Packet Size: 64 Bytes - 260,000 pps Packet Size: 1518 Bytes or Larger - 1 Gbps (Line Rate) |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 512 MB DDR3 RAM |
| On-Board Flash Storage | 512 MB NAND |
| Mounting | Wall, Rack (With optional Rack Mount Kit, model ER-RMKIT) |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC | PoE |
| PoE Interfaces | PoE In: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-) PoE Out: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-) |
| Passive PoE Max. Wattage Per Port | 15W (24V, 0.63A) |
| Passive PoE Output | DC/PoE Passthrough |
