Ubiquiti EdgeSwitch 12F

UbiquitiSKU: ES-12F

Price:
Sale price$371.09

Tax included

Stock:
Sold out

Description

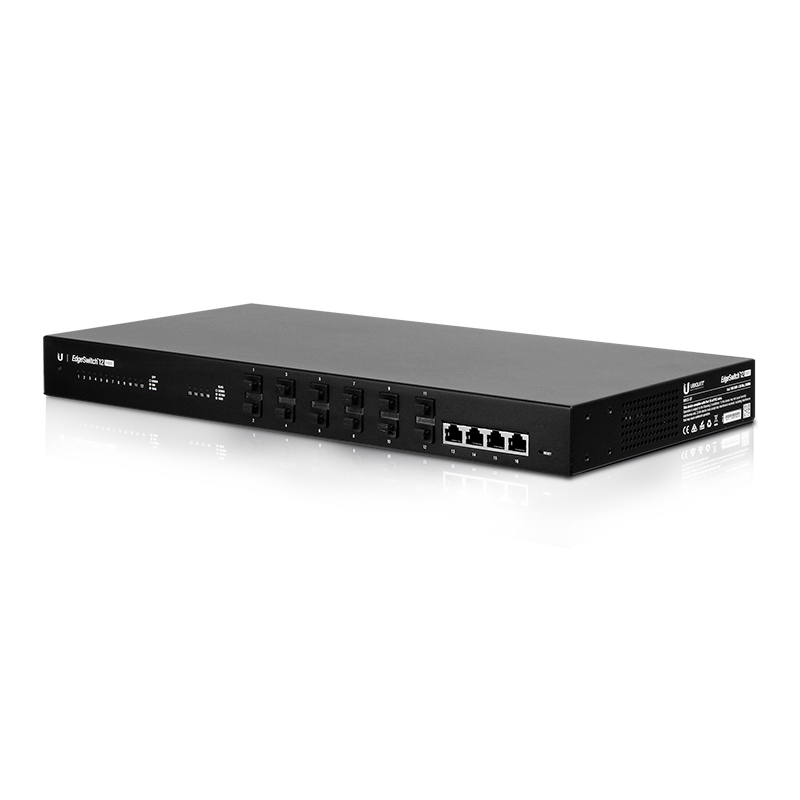

Rack-mountable, Gigabit switch with (12) SFP ports and (4) Gigabit RJ45 ports.

Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Features:

  • (12) Gigabit SFP Ports
  • (4) Gigabit RJ45 Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 16 Gbps
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
  • Maximum AC Power Consumption: 56W
  • Rackmountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)

Product Specifications

EdgeSwitch 12F
Dimensions443 x 221 x 43 mm
(17.44 x 8.70 x 1.69")
Weight
Rack-Mount Brackets
Included Rack-Mount Brackets Excluded

2.68 kg (5.91 lb)
2.59 kg (5.71 lb)
Total Non-Blocking Line Rate16 Gbps
Max. AC Power Consumption56W
Power Method
AC
DC

100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power SupplyAC/DC, Internal, 56W DC
Supported Voltage Range100 to 240VAC 25 to 16VDC
LEDs Per Data PortSpeed/Link/Activity
Networking Interfaces(8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
RackmountYes, 1U High
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
