Fully managed, 10-gigabit aggregation switch with (12) SFP+ ports and (4) 10 GbE RJ45 ports.

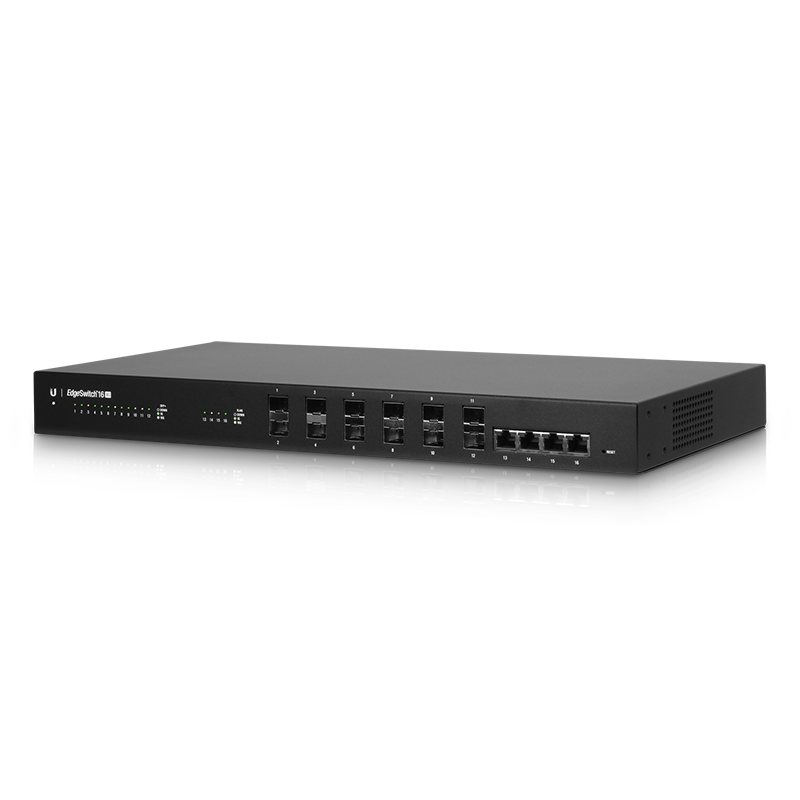

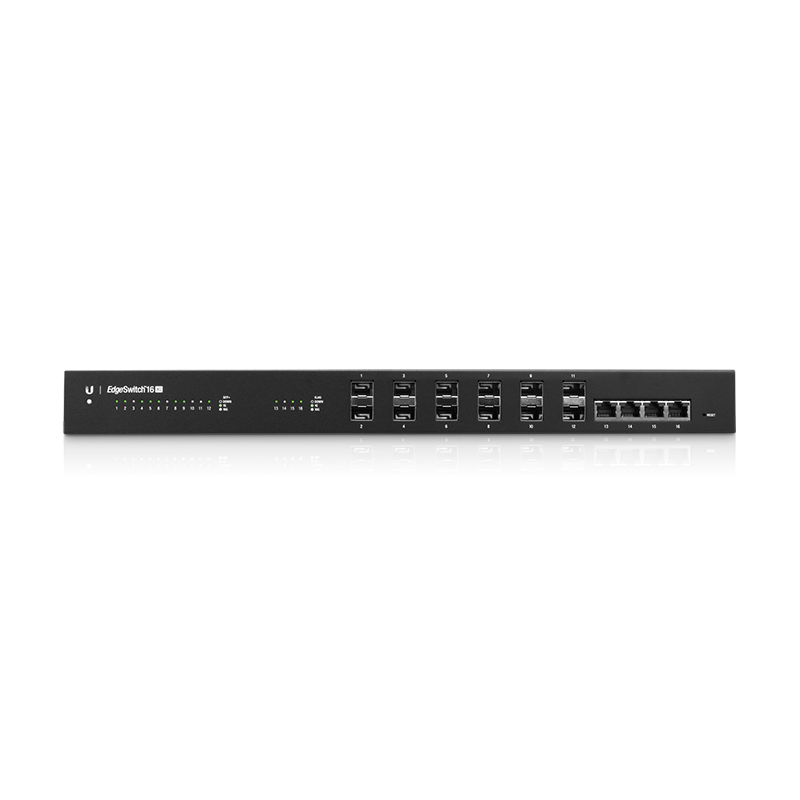

The ES-16-XG is a fully managed, carrier-class 10 Gigabit aggregation switch with twelve 10G SFP+ ports and four 10G RJ45 ports. The ES-16-XG provides up to 160 Gbps total, non-blocking line rate for concurrent, full-capacity support of up to sixteen 10G switches and devices.


  • (12) SFP+ Ports
  • (4) 10G RJ45 Ports
  • (1) RJ45 Serial Console Port
  • Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.10 Mpps
  • Rack Mountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)

Product Specifications

EdgeSwitch 16 XG
Dimensions443 x 221 x 43 mm
(17.44 x 8.70 x 1.69")
Weight2.62 kg
(5.78 lb)
With Mount Brackets2.71 kg
(5.97 lb)
Total Non-Blocking Line Rate160 Gbps
Max. DC Power Consumption36W (excludes SFP/SFP+ module)
Power Method

100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector
Power SupplyAC/DC, Internal, 56W DC
Supported Voltage Range100 to 240VAC 25 to 16VDC
Rack-MountYes, 1U High
LEDs Per Port
SFP+ Data Ports
RJ45 Data Ports

Networking Interfaces(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface(1) RJ45 Serial Port, Ethernet In-Band
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
