Description
ESD protection for outdoor high-speed networks.
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

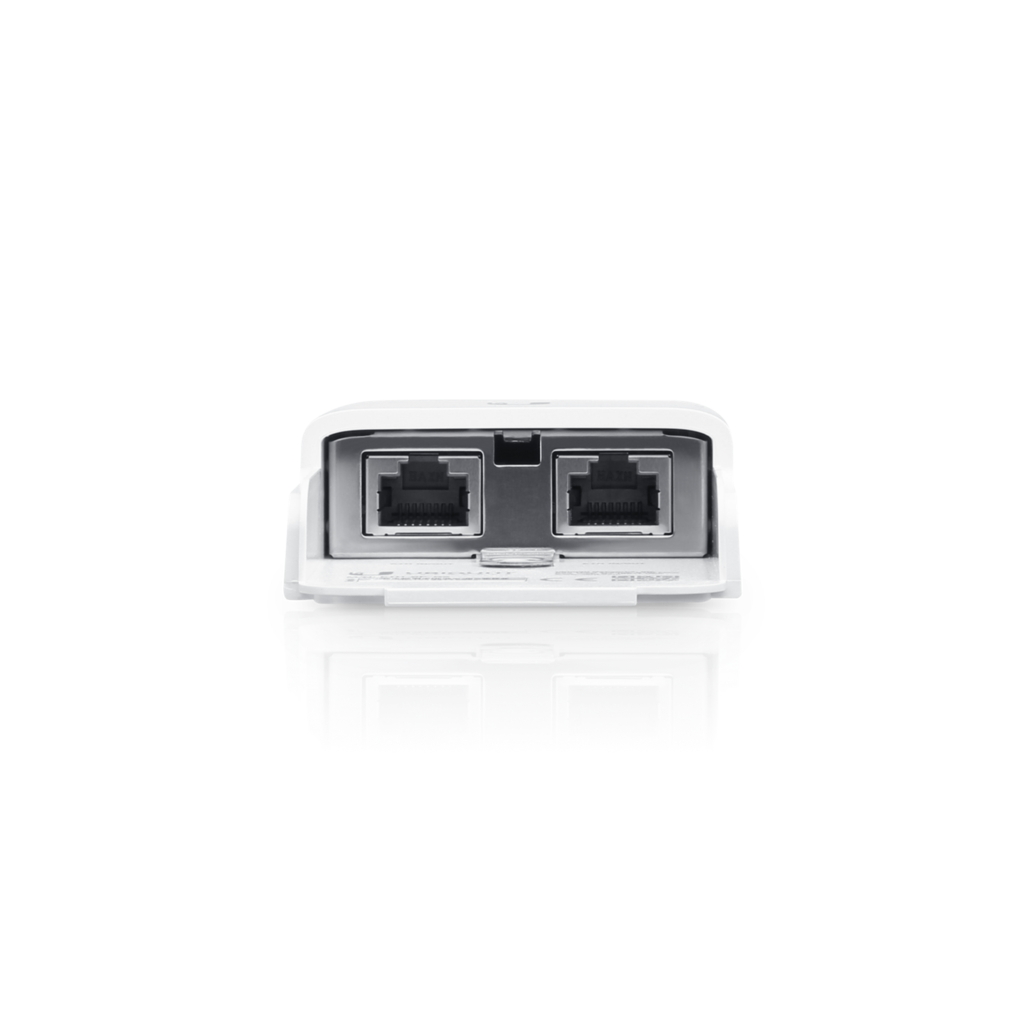

The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
- Low-Cost Protection and Fast Installation
- Protects Outdoor Ethernet Devices
- Compatible with 10/100/1000 Mbps Networks
Product Specifications
| ETH-SP-G2 | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28") |
| Weight | 80 g |
| Interface Connections | (2) RJ45 Female Connectors |
| ESD/EMP Protection | Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Maximum Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| IEEE 802.3af PoE Support | Yes |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Operating Humidity | 10 to 90% Noncondensing |
