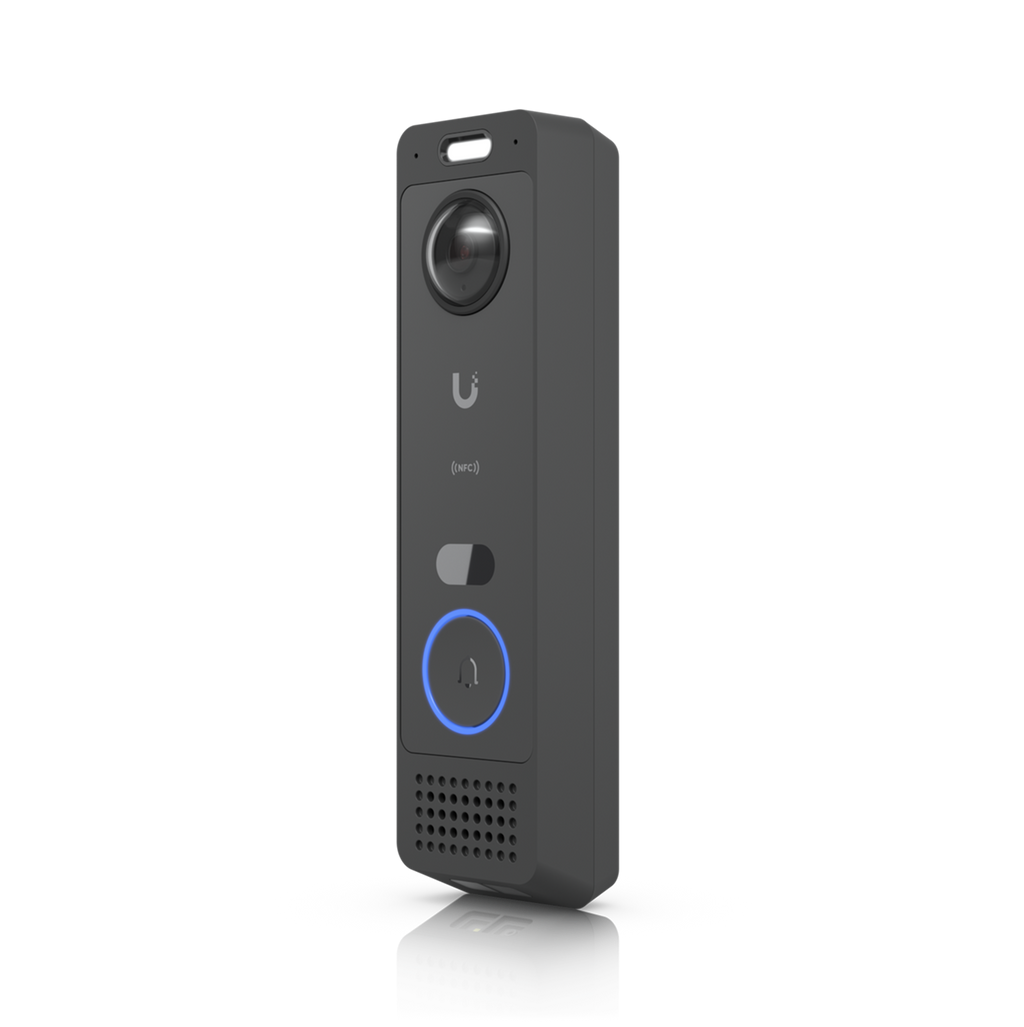

Description
An intelligent door entry system with native UniFi Protect and UniFi Access integration, including enhanced two-way audio.
Technical Specifications
Dimensions
176 x 45 x 29.6 mm
(6.9 x 1.8 x 1.2")
Integrated Camera
✓
IR Night Vision
5 m (16 ft)
Resolution
Main camera: 5MP
Package camera: 8MP
UniFi Application Suite
Protect
Access
Face Recognition
✓
NFC Card & Keyfob Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Two-Way Intercom & Doorbell Access
✓
Weatherproofing
IP55
Smart Detections (People, Vehicles, Animals)
✓
Tamper Resistance
IK07
Audio
Two-way audio
NDAA Compliant
✓
Weight
275 g (9.7 oz)
Enclosure Material
Aluminum
Mount Material
Wall mount: Stainless steel
Gangbox mount plate: SGCC steel
Gangbox mount cover: Polycarbonate
Wedge mount: Aluminum
Mounting

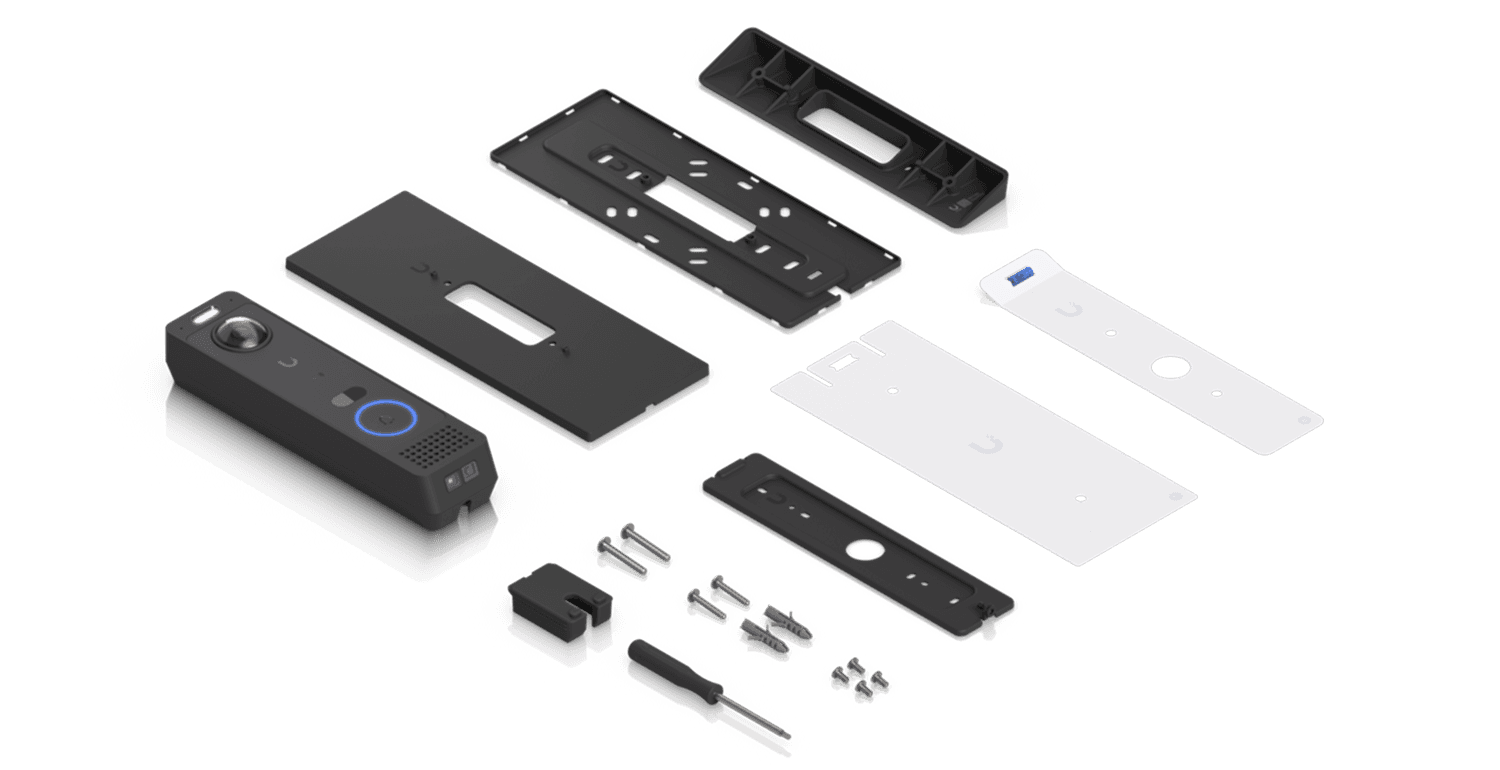

Wall mount, Gangbox mount plate, 20° wedge mount (Included)
Junction box (Optional)
Networking Interface
GbE RJ45 port
Connectivity
BLE 4.1
NFC
Power Method
PoE+
Max. Power Consumption
16W
Supported Voltage Range
42—57V DC
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
Main camera: 30 FPS
Package camera: 3 FPS
Resolution
Main camera: 5MP, 1920 x 2560 (3:4)
Package camera: 8MP 3264 x 2448 (4:3)
Optics
Resolution
Main camera: 5MP CMOS
Package camera: 8MP CMOS
Field of View
Main camera: H: 100°, V: 135°, D: 180°
Package camera: H: 66°, V: 51.7°, D: 78°
Sensor
Main camera: 5MP CMOS
Package camera: 8MP CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
LEDs
R/G/B/W
Learn More
Button
(1) Ring button
(1) Factory reset
(1) Tamper switch
Processor
Quad-core Arm® Cortex®-A53 based chip
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 90% noncondensing
