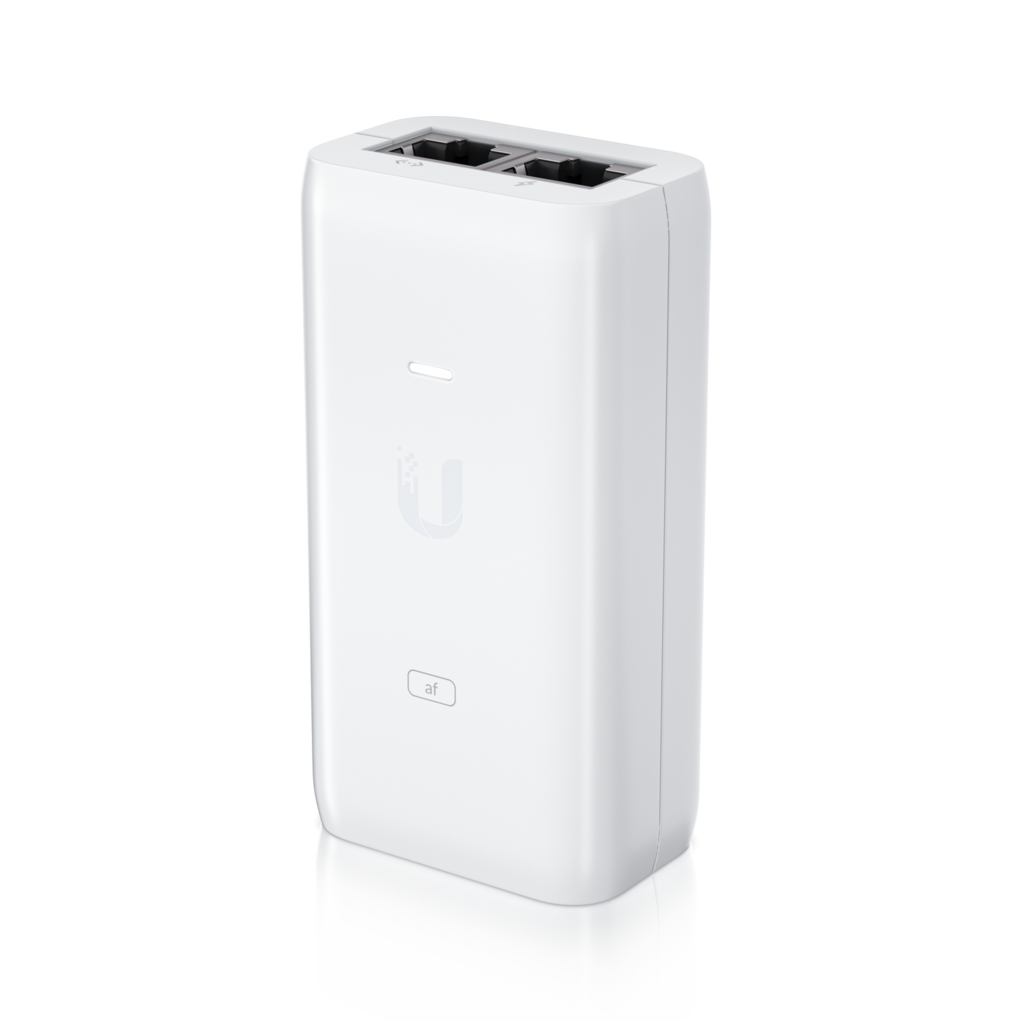

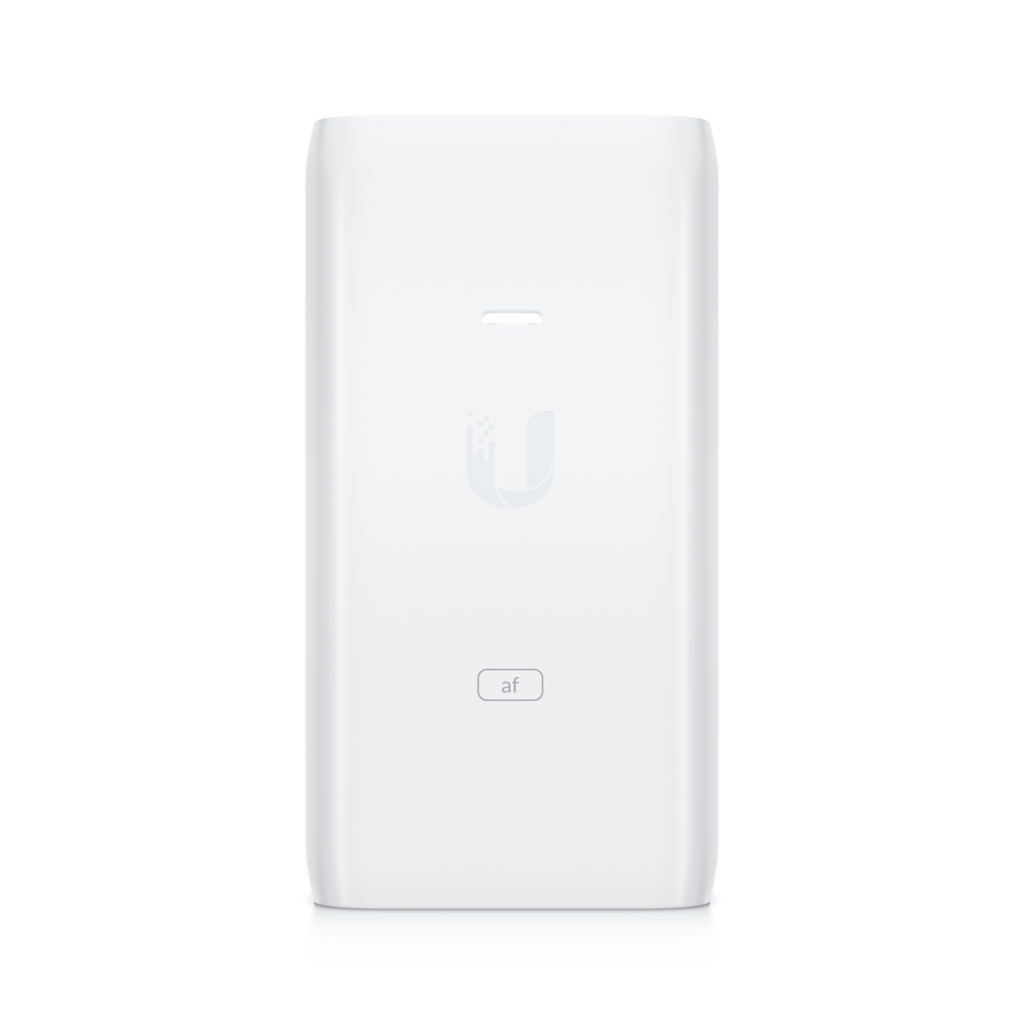

Ubiquiti PoE Injector, 802.3AF

UbiquitiSKU: U-POE-af

Price:
Sale price$22.77

Tax included

Stock:
In stock

Description

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Product Specifications

U-POE-af
Dimensions 86 x 46 x 33 mm
(3.39 x 1.81 x 1.30")
Weight 100 g
(3.53 oz)
Output Voltage 48VDC @ 0.32A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current
Efficiency 84.25+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature 0 to 40° C
(32 to 104° F)
Storage Temperature -30 to 70°C
(-22 to 158° F)
Operating Humidity 5 to 90% Noncondensing

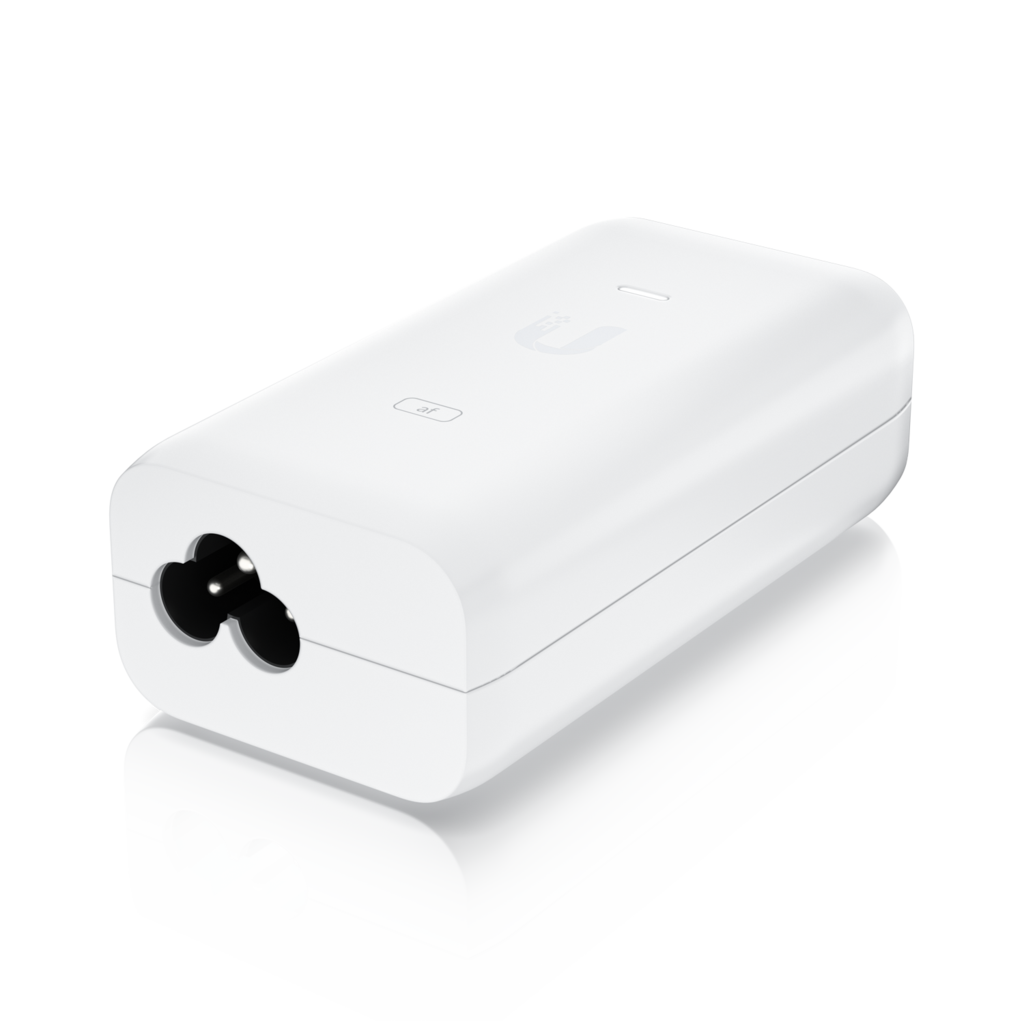

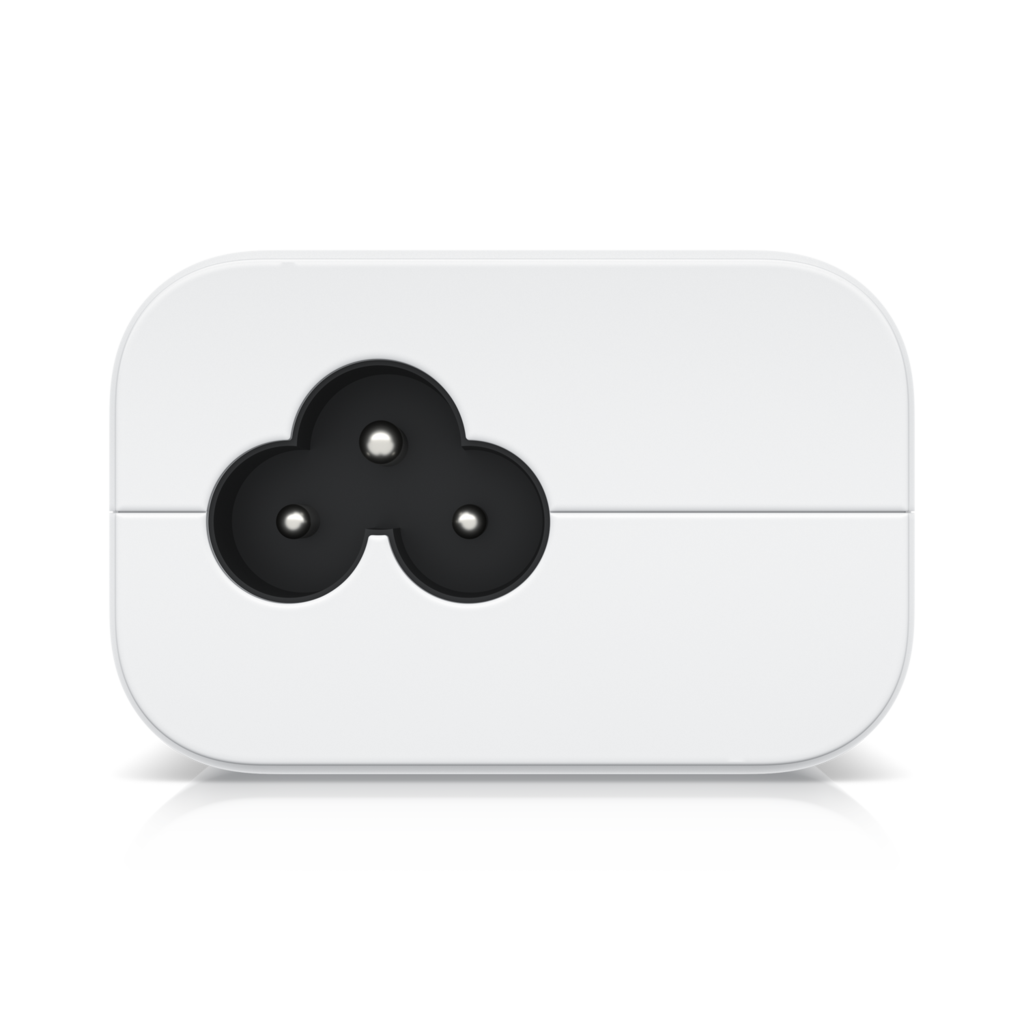

AC Connector IEC-320 C6

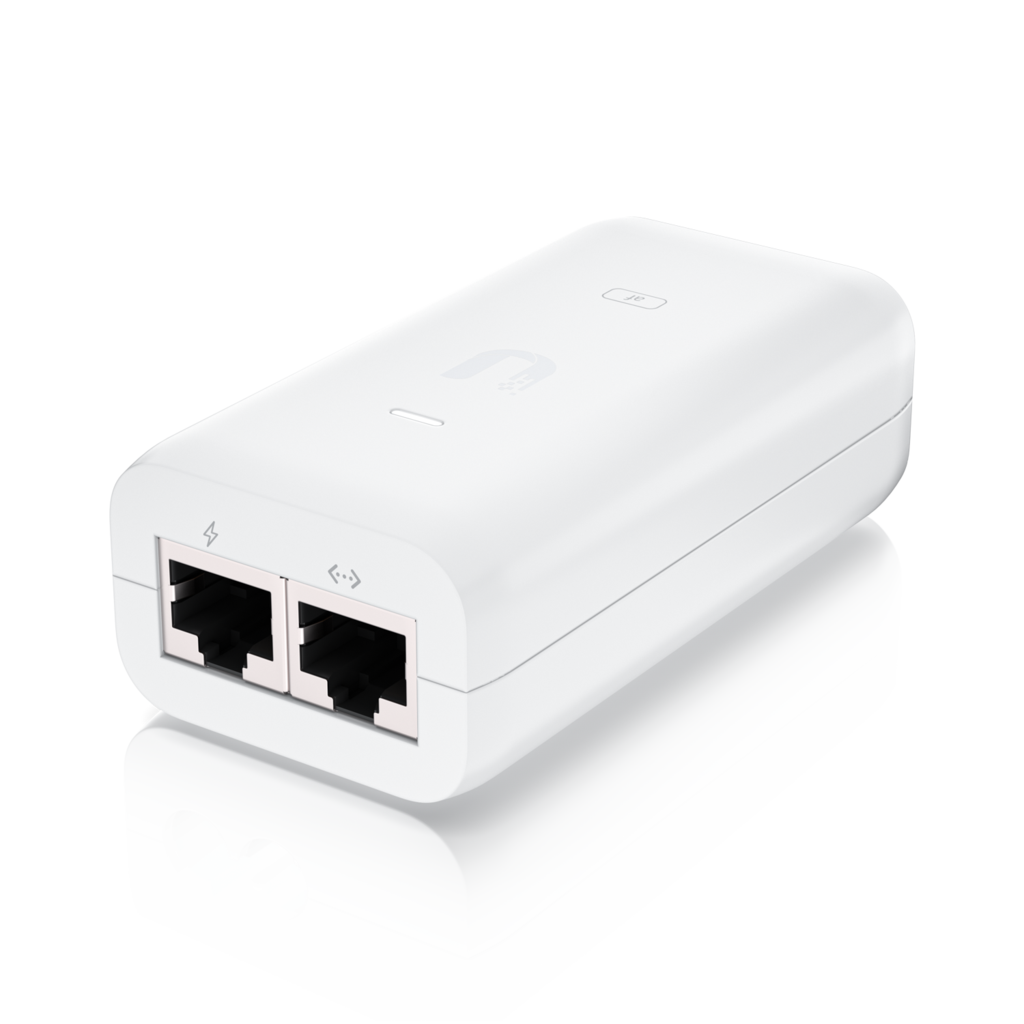

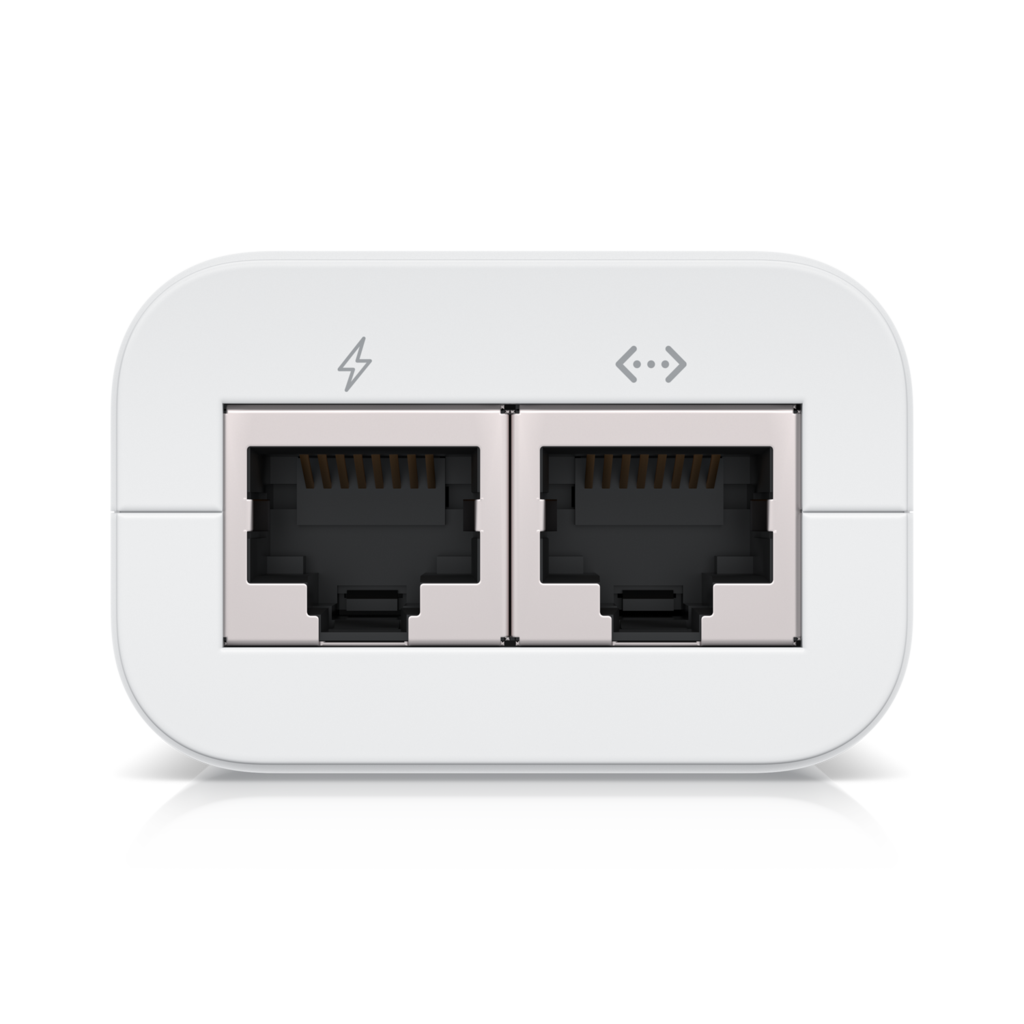

Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance
Response Time

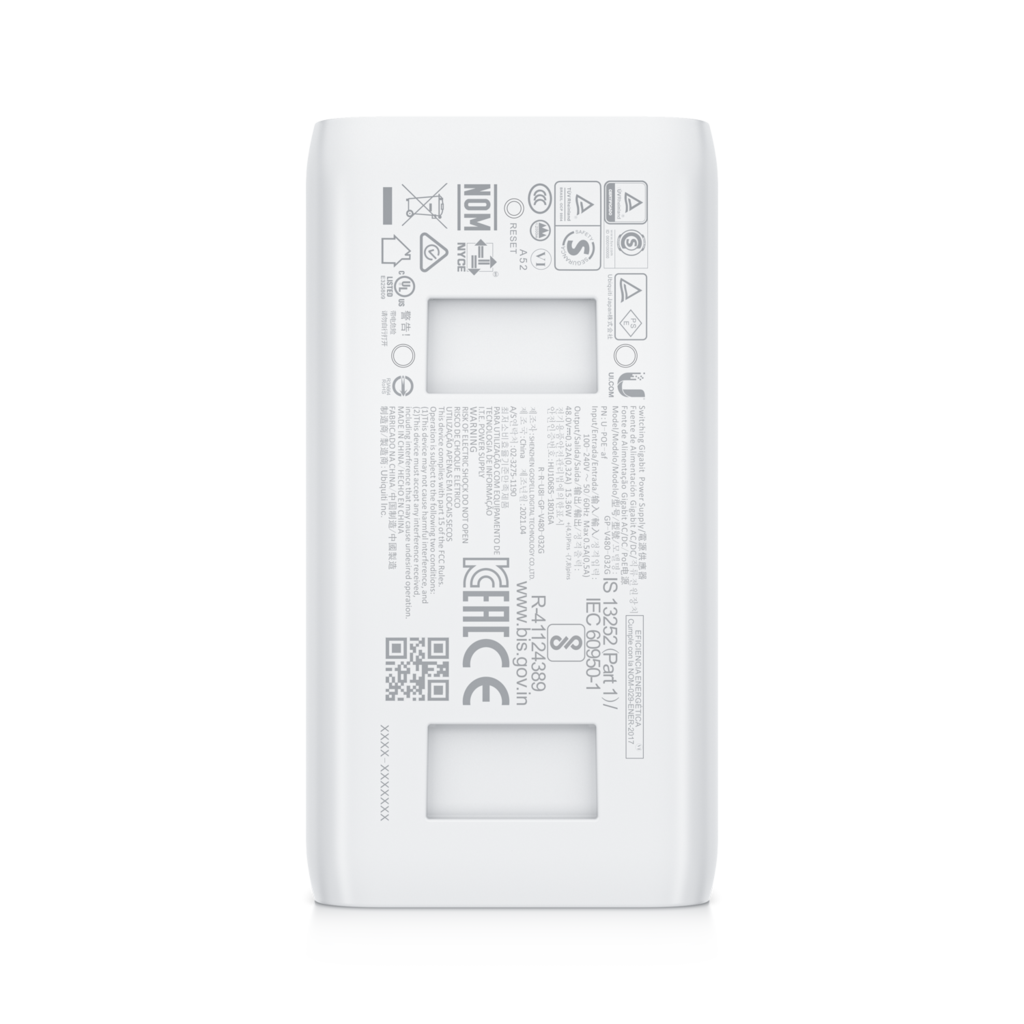

Certifications CE, FCC, IC, UL
