Ubiquiti PoE Injector, 802.3at

UbiquitiSKU: U-POE-at

Price:
Sale price$31.90

Tax included

Stock:
In stock

Description

Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other 802.3at devices.

The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+ standard. It also provides enhanced protection against electrical surges.

Features:

    • Delivers up to 30W of PoE+
    • Compatible with the U6 LR, U6 Pro, and other 802.3at PoE+ devices
    • Surge and clamping protection
    • AC cable with earth ground

Product Specifications

Mechanical
Dimensions93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight156 g (5.5 oz)
Output Voltage48VDC @ 0.65A
LAN Activity IndicatorNo
Gigabit LAN PortYes
Remote Reset CapabilityYes
Reset ButtonNo
Rated Voltage100-240VAC @ 50/60Hz
Input Current0.75A@90VAC
Inrush Current<100A Peak @230VAC, 26℃
Efficiency87%
Output Ripple1% Max.
Switching Frequency70 kHz Max.
Line Regulation≤ 3%
Load Regulation≤ 5%
2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity35 to 90% Noncondensing

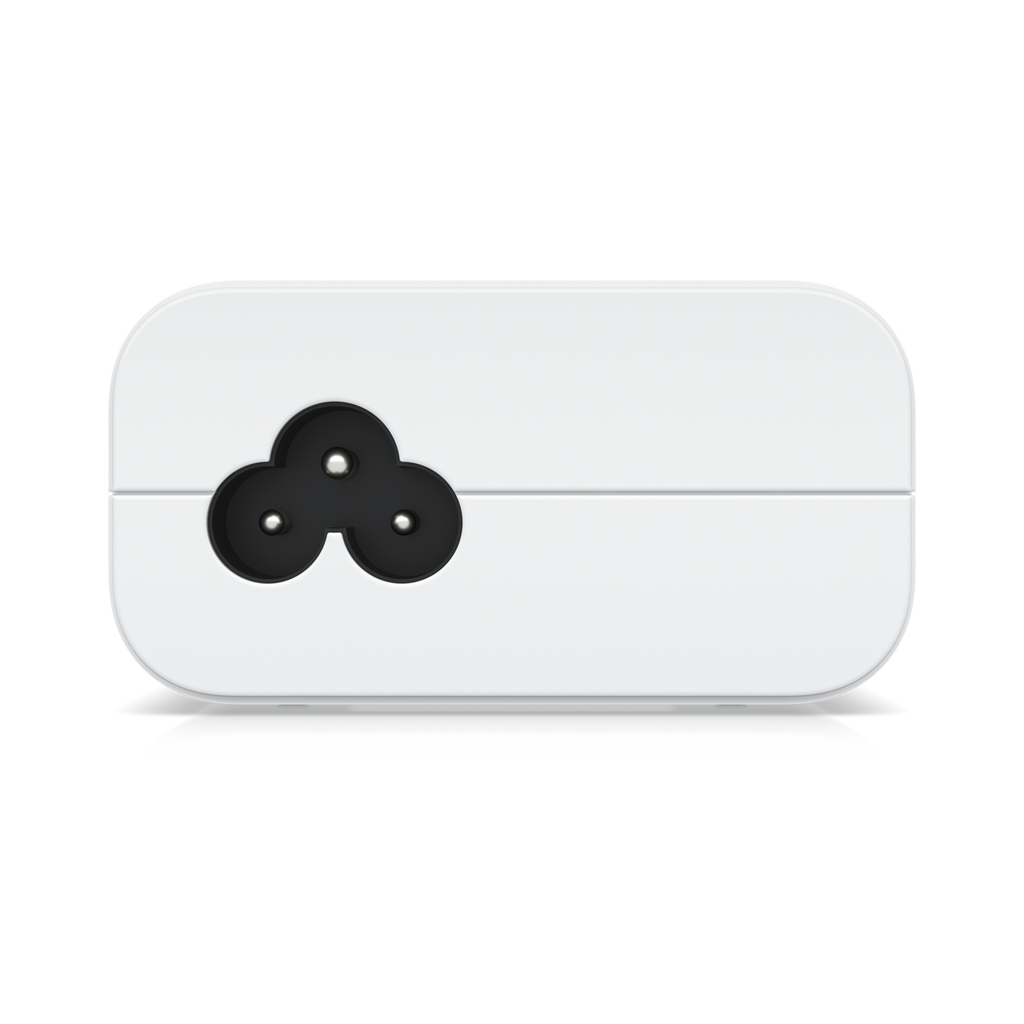

AC ConnectorIEC-320 C6
Data IN / POERJ45 Shielded Socket
Surge ProtectionDifference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20 μs) Power
Peak Pulse Current36A (10/1000 μs) Data
Shunt Capacitance<5 pF data
Response Time<1 ns
CertificationsCE, FCC, IC, UL
