Description
Ubiquiti introduces the UniFi® Security Gateway, which extends the UniFi Enterprise System to encompass routing and security for your network.
The UniFi Security Gateway combines reliable security features with high‐performance routing technology in a cost‐effective unit.
Features:
- Advanced Security, Monitoring, and Management
- Sophisticated Routing Features
- Integrated with UniFi® Application
Product Specifications
| USG | |
|---|---|
| Dimensions | 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
| Weight | 366 g (12.9 oz) |

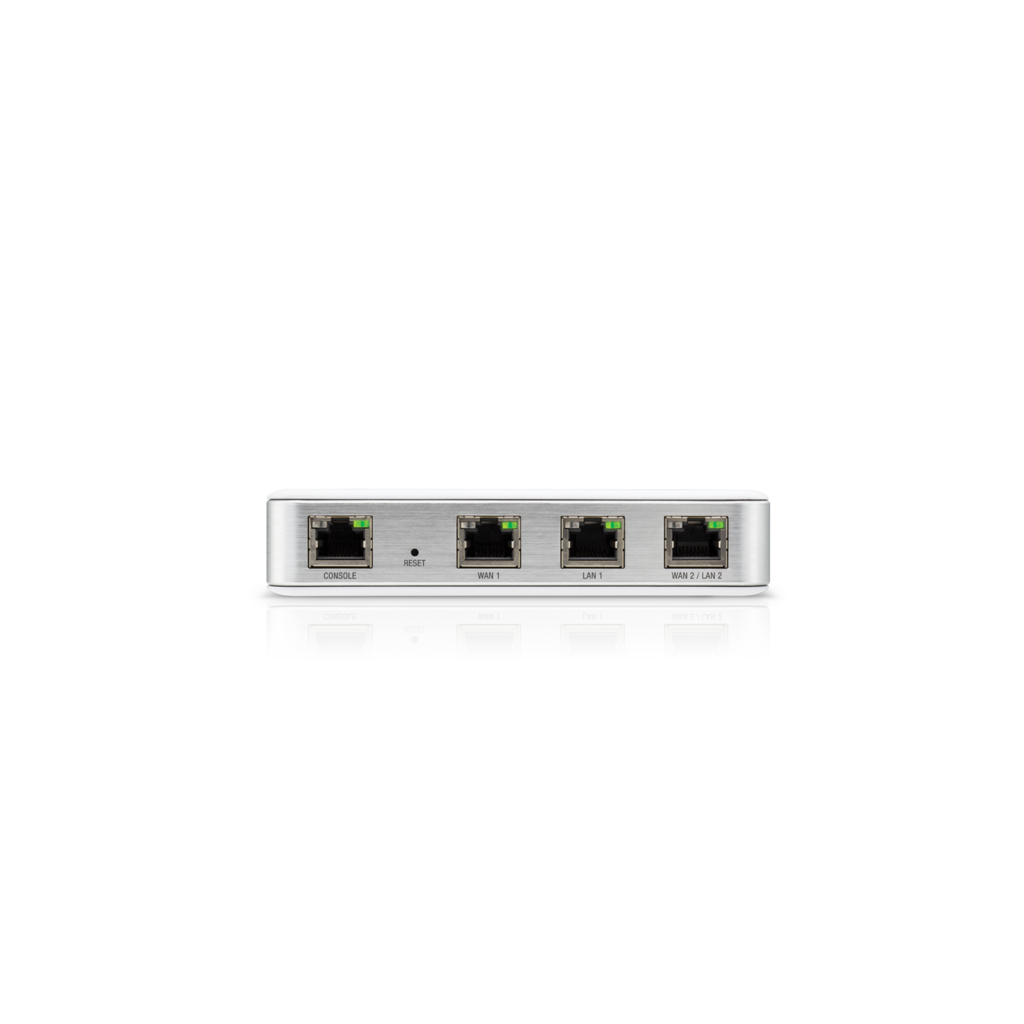

| Networking Interfaces Serial Console Port Data Ports | (1) RJ45 Serial Port (3) 10/100/1000 Ethernet Ports |
| Max. Power Consumption | 7W |

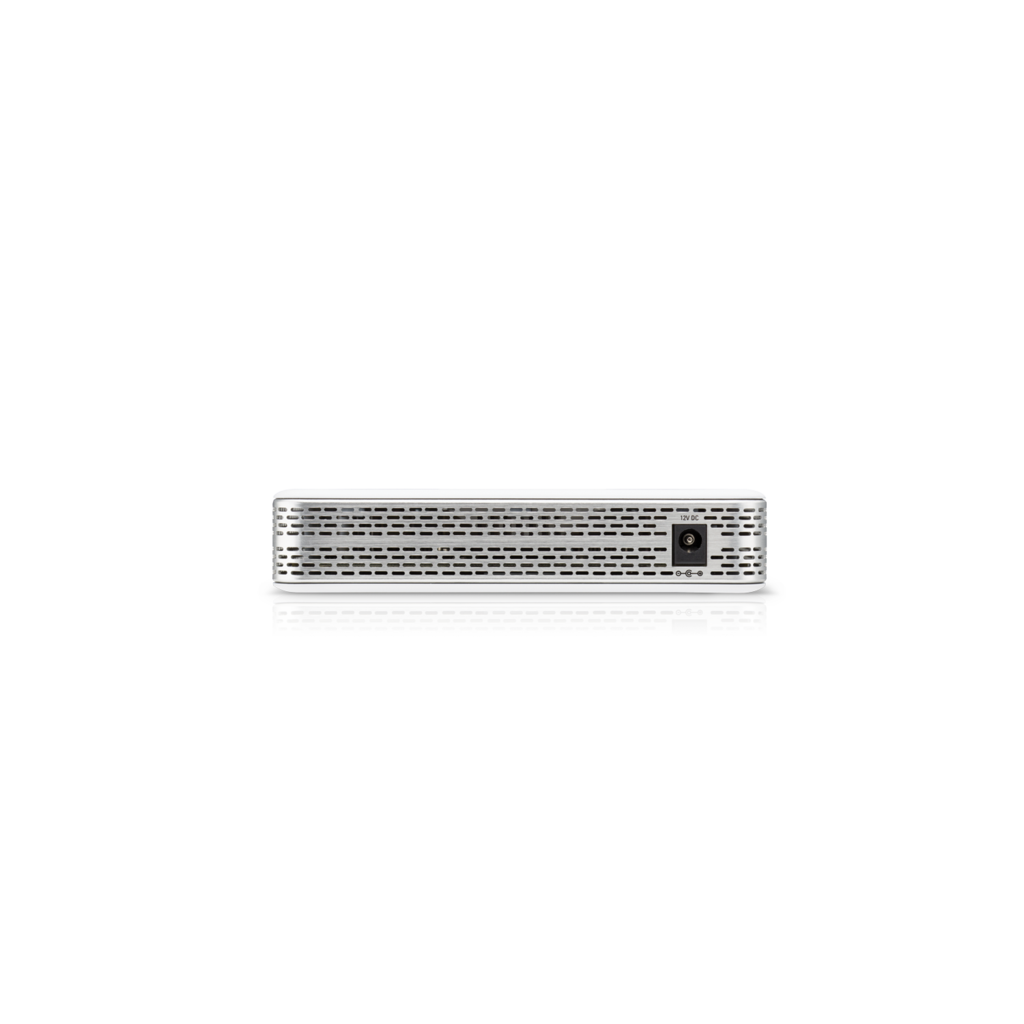

| Power Supply | 12VDC, 1A Power Adapter (Included) |
| Supported Voltage Range | 9 to 24VDC |
| LEDs System Serial Console Port Data Ports | Status Power Speed/Link/Activity |
| Layer 3 Forwarding Performance Packet Size: 64 Bytes Packet Size: 512 Bytes or Larger | 1,000,000 pps 3 Gbps (Line Rate) |
| Processor | Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Rackmount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
