Description
Remotely managed MPPT 24V 7A solar site charging appliance with a built-in, four-port, 24V PoE switch.

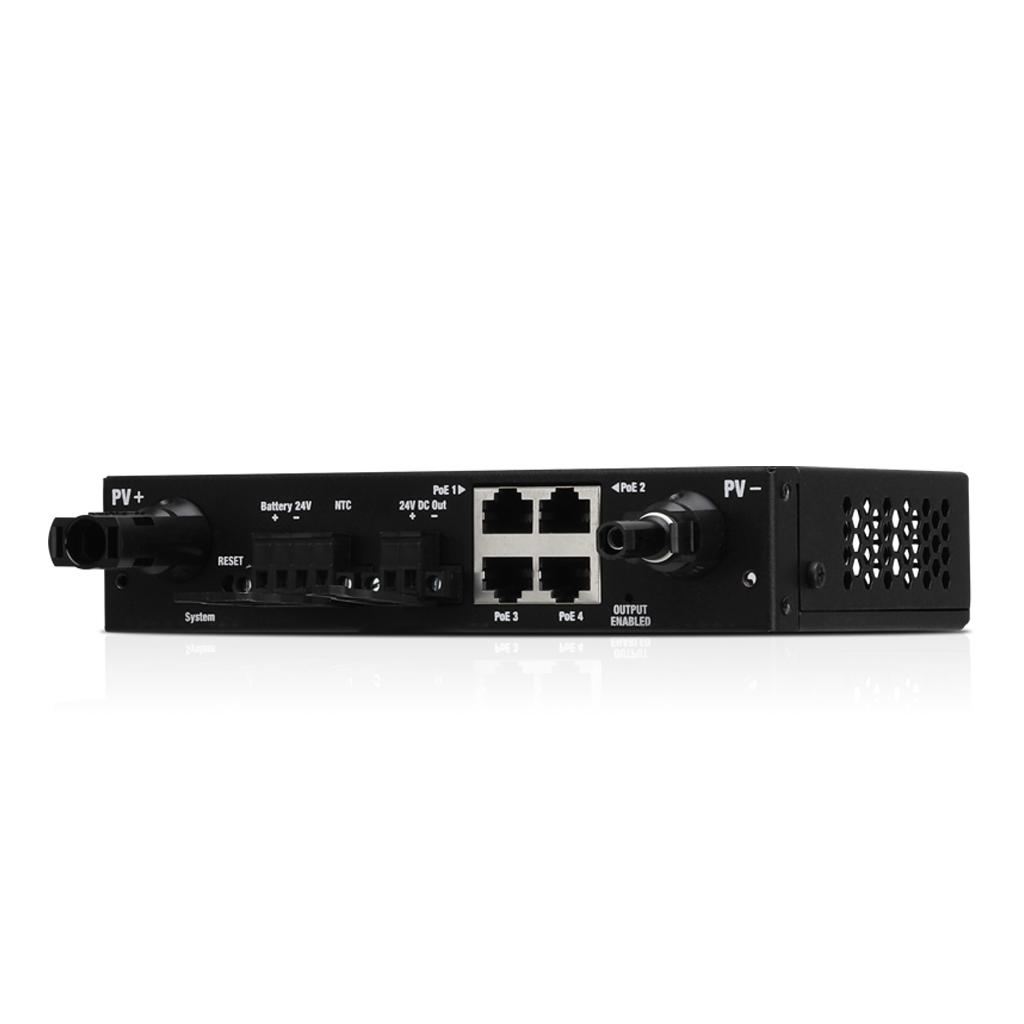

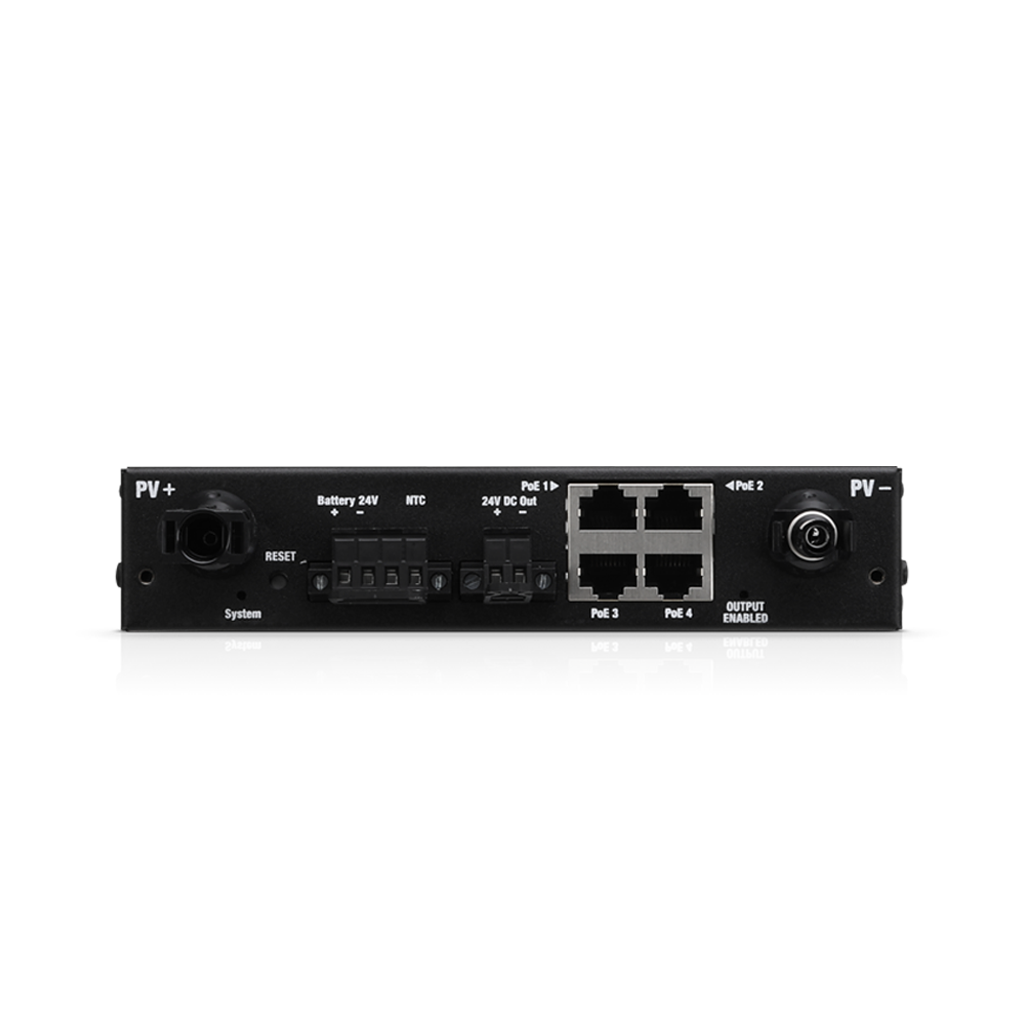

The SunMAX™ SolarSwitch™ is a remotely managed MPPT 24V 7A charging appliance with a built-in, four-port, 24V PoE, 10/100Mbps switch and one DC output that delivers up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site`s existing and future performance.
Features:
- Indoor or Cabinet(rack mountable) use
- PV Panel Input 10 – 60V
- 4-port 24V PoE output 10/100 switch
- 24V DC-Out Terminal
- Max output power 40W
- External 24V Battery Charging up to 7Amps (supports SLA, AGL,AGM)
Managed with UISP Application.
* Batteries and solar panels are not included
Product Specifications
| SM-SW-40 | |
|---|---|
| Dimensions | 168 x 136 x 36 mm (6.14 x 5.35 x 1.42") |
| Weight | 543 g (1.2 lb) |
| Enclosure Characteristics | Steel, Indoor Use |
| Max. Power Consumption | 2W |
| Networking Interface | (4) 10/100 Fast Ethernet Ports |
| Management Interface | Ethernet + Wi-Fi (2.4 GHz) |
| Button | Reset |
| LEDs | System, Output |
| Power Source | PV Panel (H4 connectors) |
| PV Input Voltage Range | 10-60V (Reverse Protection, Surge Protection) Maximum Open Circuit Voltage 60V |
| PV Maximum Current | 10A |
| PV Power Control | MPPT |
| Output Interfaces | 24VDC Passive PoE (Pins 4, 5+; 7, 8-) 24VDC Terminal Block |
| Output Voltage | Battery Voltage Limited to 24V (Surge Protection) |
| Maximum Power Output | PoE: 17W, DC OUT: 24W, Max 40W Total |
| Battery Type | 24V SLA, AGM, Gel Lead Battery |
| Absorption Voltage Steps | 27.4V, 28.2V, 29.1V, 30V |
| Float Charge Voltage | 95% of Absorption Voltage |
| Max. Charge Current | 7A |
| Under Voltage Protection | 22 – 23.6V Software Configurable 22V Hardware Protection 2 Priority Levels for Output Disable |
| Operating Temperature* | -20 to 50° C (-4 to 122° F) |
| Certifications | FCC/IC/CE |
