Description

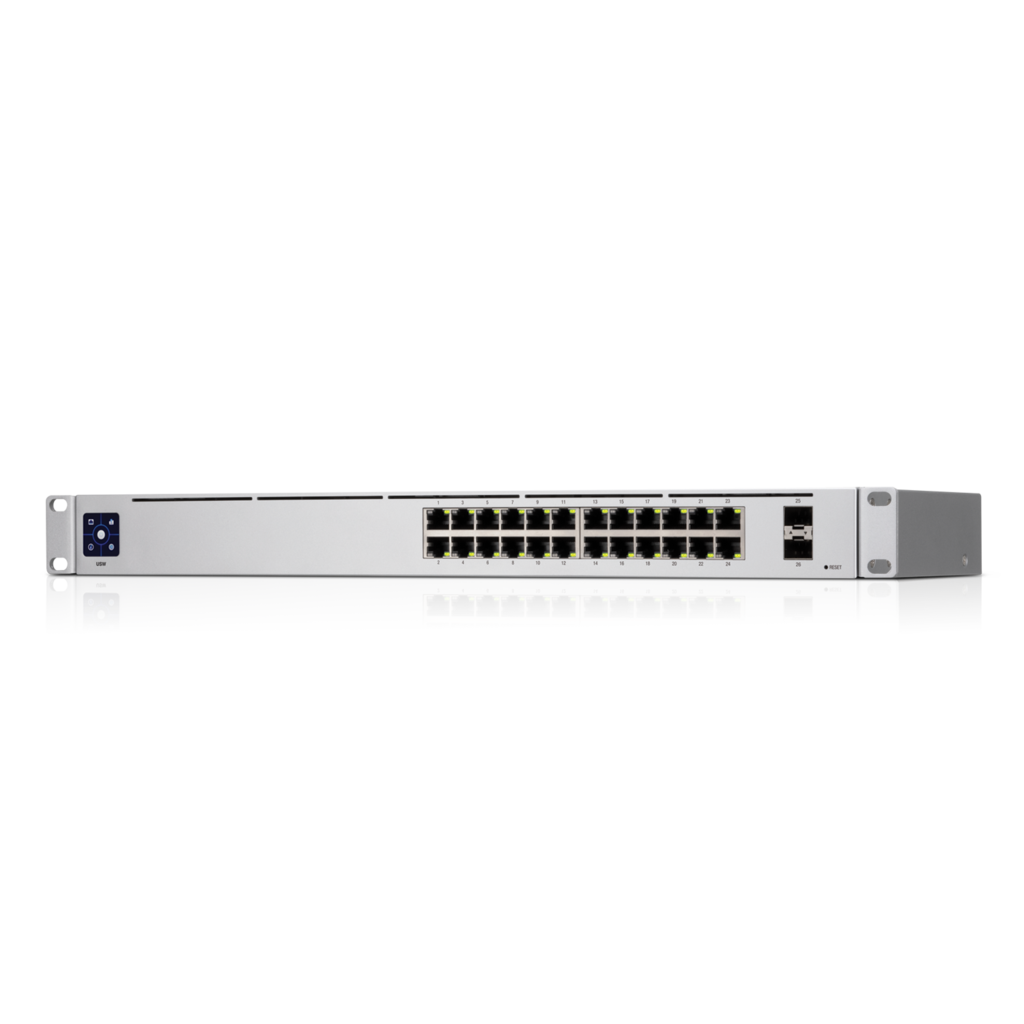

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3" color touchscreen for status information
- Managed with UniFi Network application
- 1U rackmountable (kit included)
Managed with UniFi Network Application Version: 5.12.32 or higher
Product Specifications
| USW-24 | |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight With Rackmount Brackets | 2.70 kg (5.95 lb) 2.79 kg (6.15 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 36W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption | 25W |
| LEDs RJ45 Data Ports SFP Data Ports | Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
