Ubiquiti Switch PoE+ 48 (500W)

UbiquitiSKU: US-48-500W

Sale price$1,468.40

Tax included

In stock

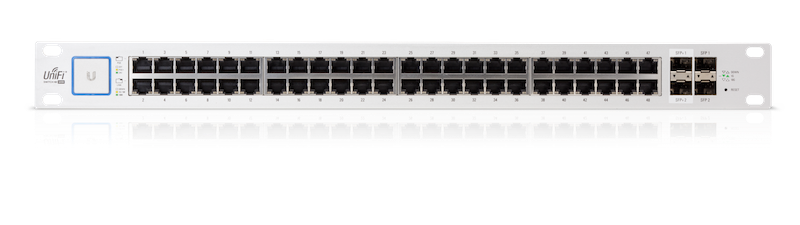

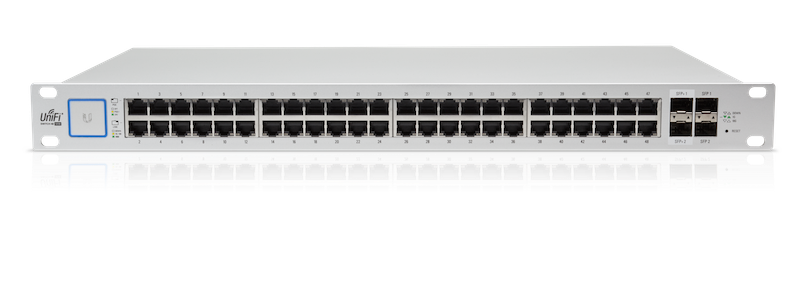

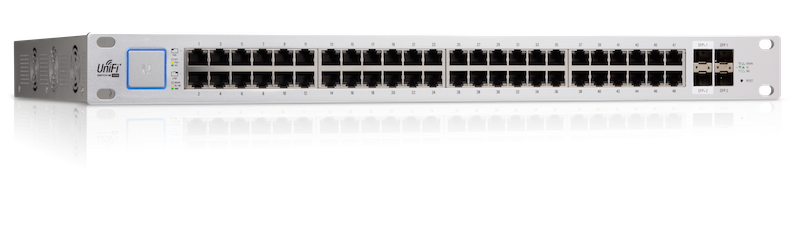

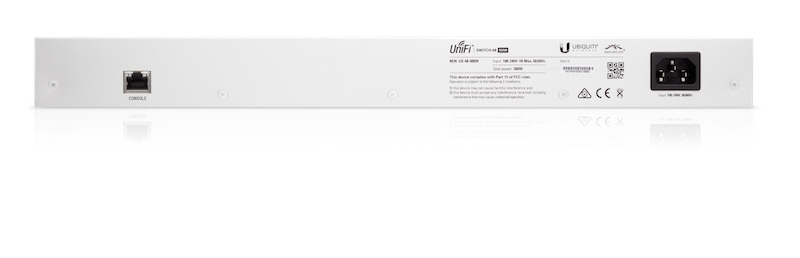

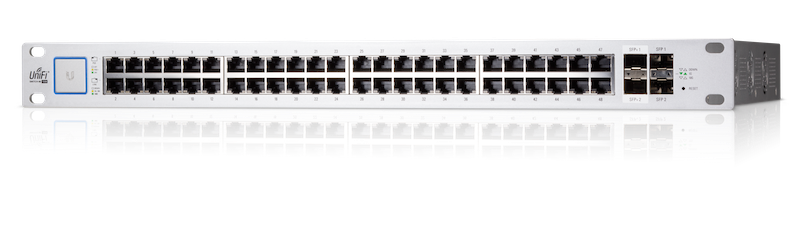

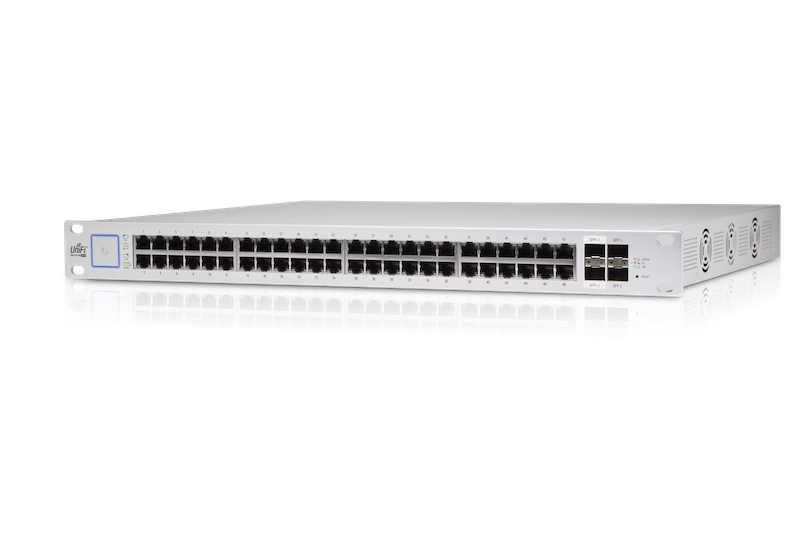

The UniFi Switch 48 PoE+ 500W (USW 48 500W) is a fully managed, PoE+ Gigabit switch that delivers robust performance and intelligent switching for enterprise networks. The USW 48 500W offers 48 ports of auto-sensing IEEE 802.3af/at and configurable 24V PoE to simplify your network infrastructure. Additionally, two SFP+ and two SFP ports provide fiber uplinks capable of delivering speeds up to 10 Gbps.


  • (48) Gigabit RJ45 Ethernet ports
  • Auto-sensing IEEE 802.3af/at PoE+
  • Configurable 24V passive PoE
  • (2) 1G SFP ports
  • (2) 10G SFP+ ports
  • 500W power supply
  • Managed with the UniFi Network application
  • 1U rack-mount height

Product Specifications

Dimensions 485 x 43.7 x 374.6 mm
(19.09 x 1.72 x 14.75")
Weight 6.1 kg
(13.5 lb)
Networking Interfaces ((48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
MAC Address Table 16384
Maximum Aggregations 6
Monitoring Sessions 1
Maximum VLANs 255
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 500W DC
Max. Power Consumption
Including PoE Output
Excluding PoE Output

LEDs Per Port
RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity
Sound Level*
Fan Level 0
Fan Level 1
Fan Level 2
Fan Level 3

10.7 dBr
16.2 dBr
19.3 dBr
23.6 dBr
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE+ Per Port
PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
