Description

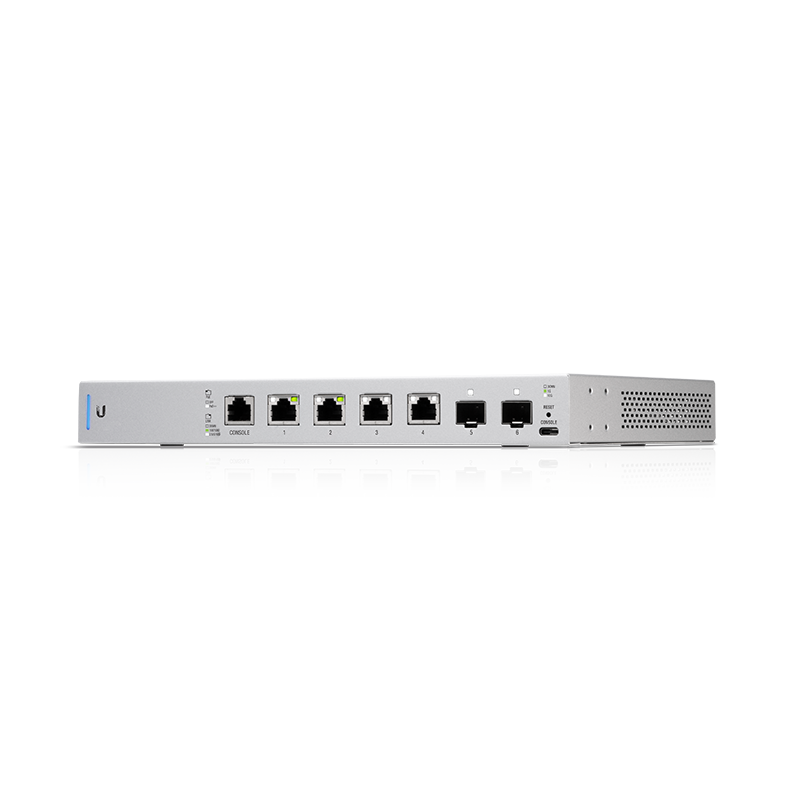

UniFi Switch XG 6 PoE (US XG 6 PoE) is a fully managed Layer 3 switch with (4) 1/2.5/5/10 Gigabit 802.3bt (PoE++) RJ45 ports. The 802.3bz compliant ports extend Multi-Gigabit range over existing cabling. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The US XG 6 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. Each 10G PoE++ port provides up to 60W of PoE power, making the US XG 6 PoE ideal for use with UniFi BaseStation XG, UniFi UAP XG, and UniFi UAP SHD. The UniFi Network and Protect applications (web and mobile) allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
- (4) 1/2.5/5/10 Gigabit RJ45 802.3bt PoE++ ports
- Multi-gigabit, 802.3bz-compliant ports
- (2) 10G SFP+ ports
- Layer 2 and Layer 3 features
- Up to 60W PoE capacity
- RJ45 and USB-C console ports
- External 210W power supply with DC connector
- Managed in the UniFi Network application
Product Specifications
| US-XG-6POE | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25") |
| Weight | 1.3 kg (2.87 lb) |
| Interfaces |
Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band |
| Power Method | 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block |
| Power Supply | External AC/DC Adapter (Included) or DC Power Source |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption (Excluding PoE Output) | 40W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 18 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. 802.3bt Wattage per Port by PSE | 60W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at/bt Mode | 50-57V |
