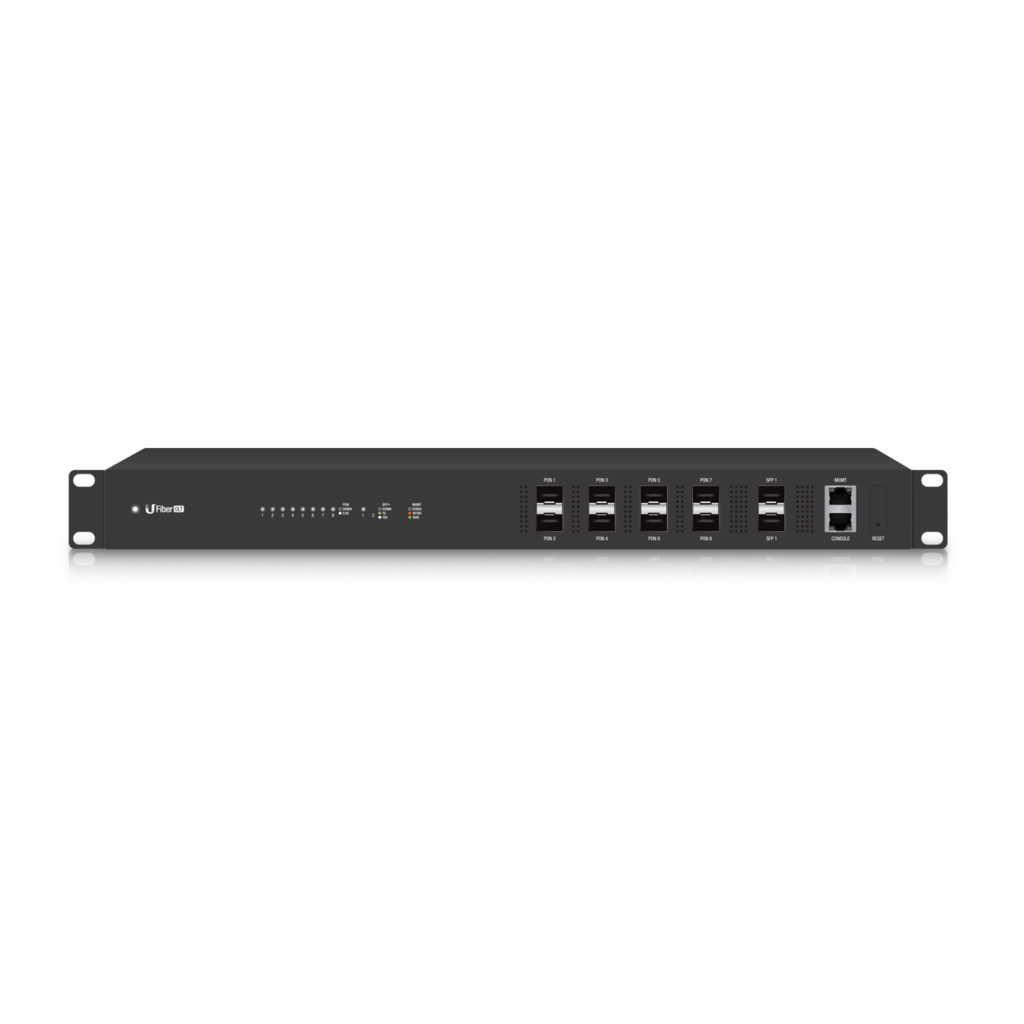

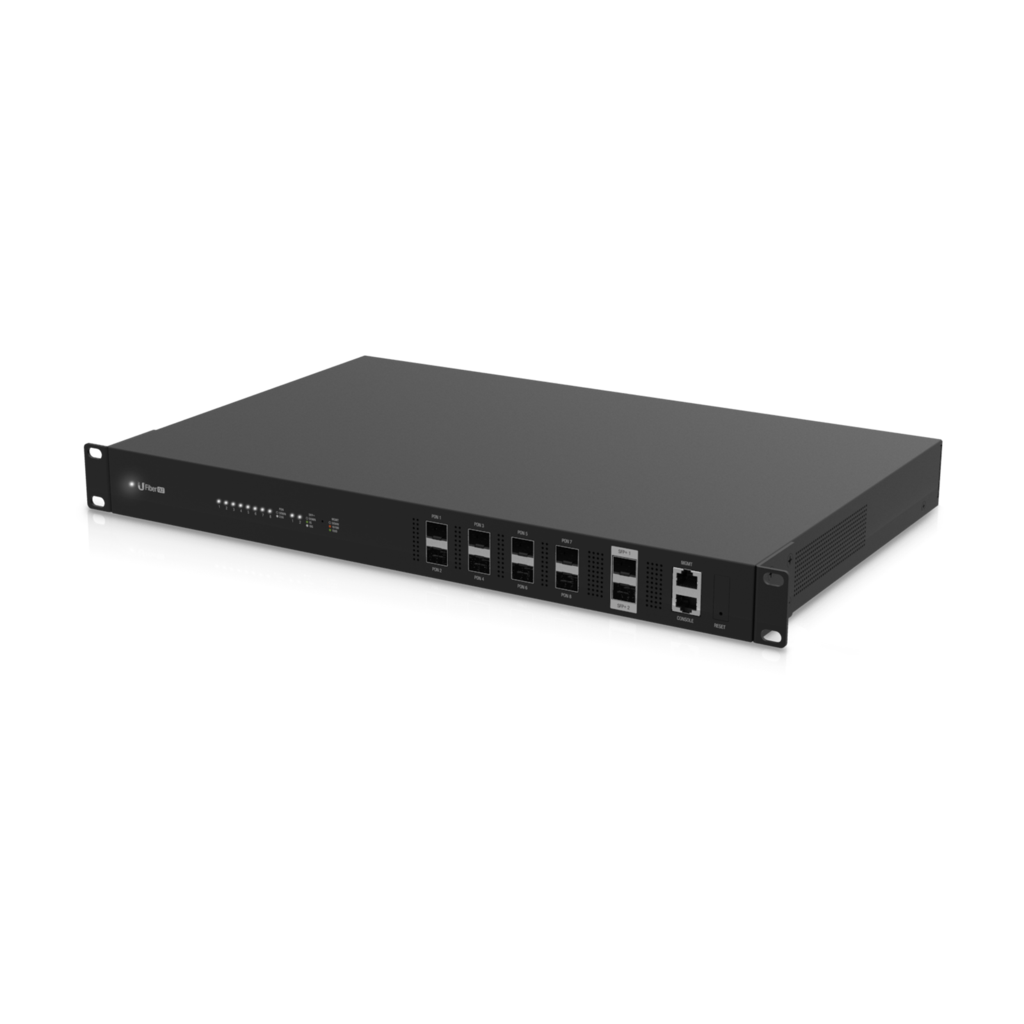

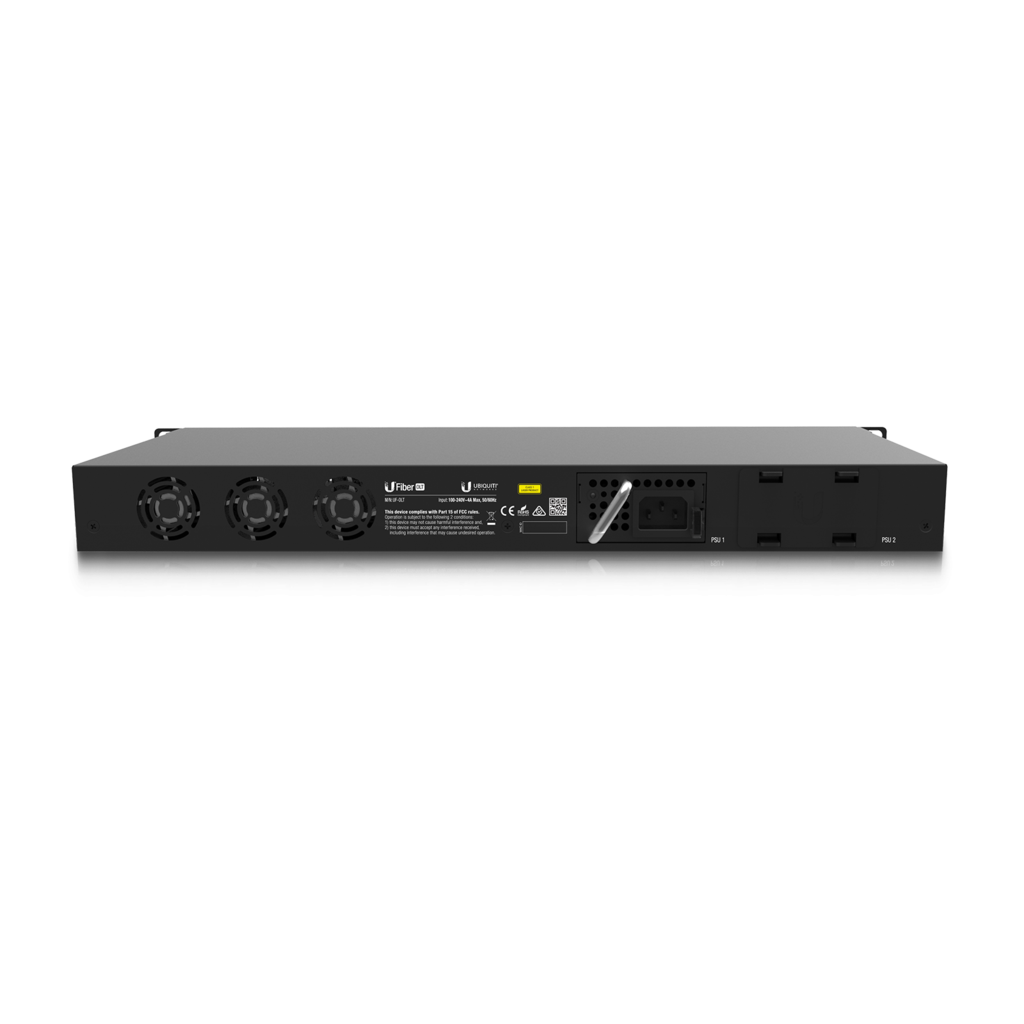

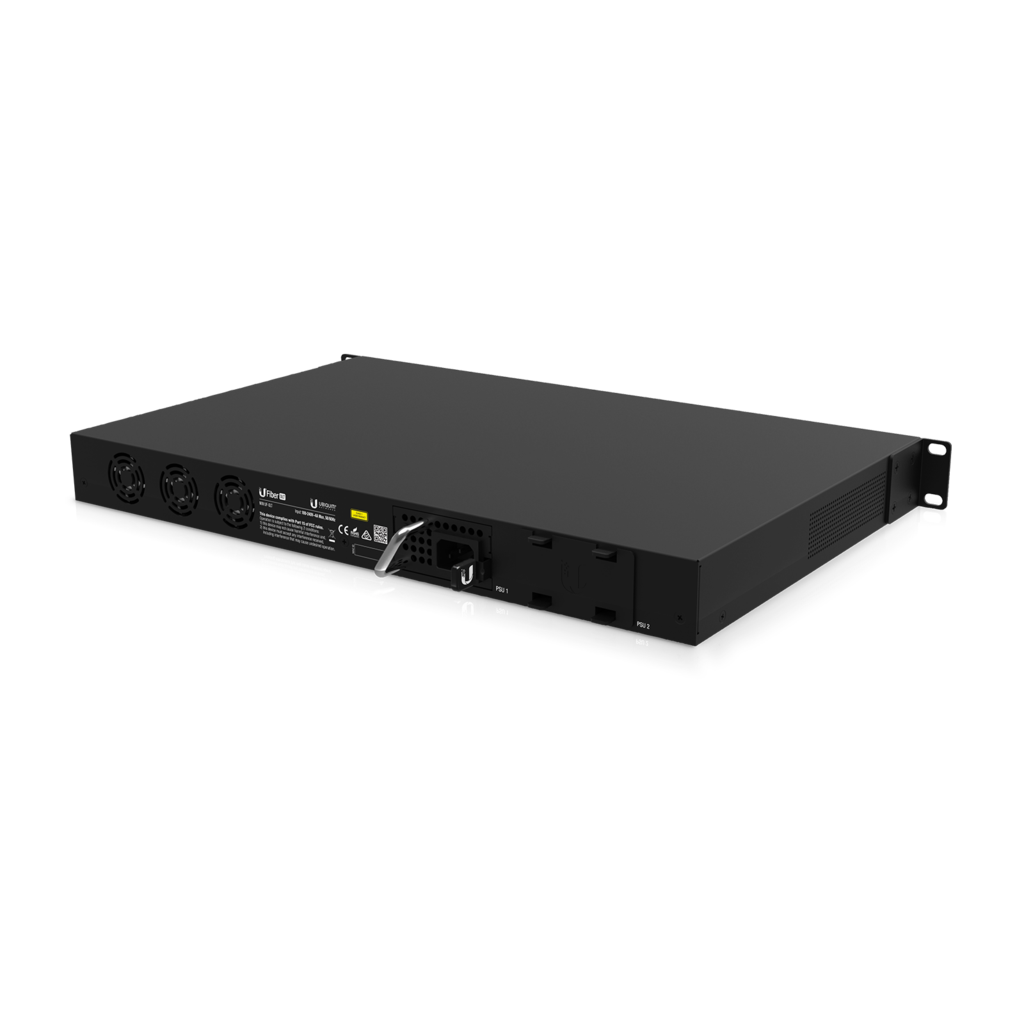

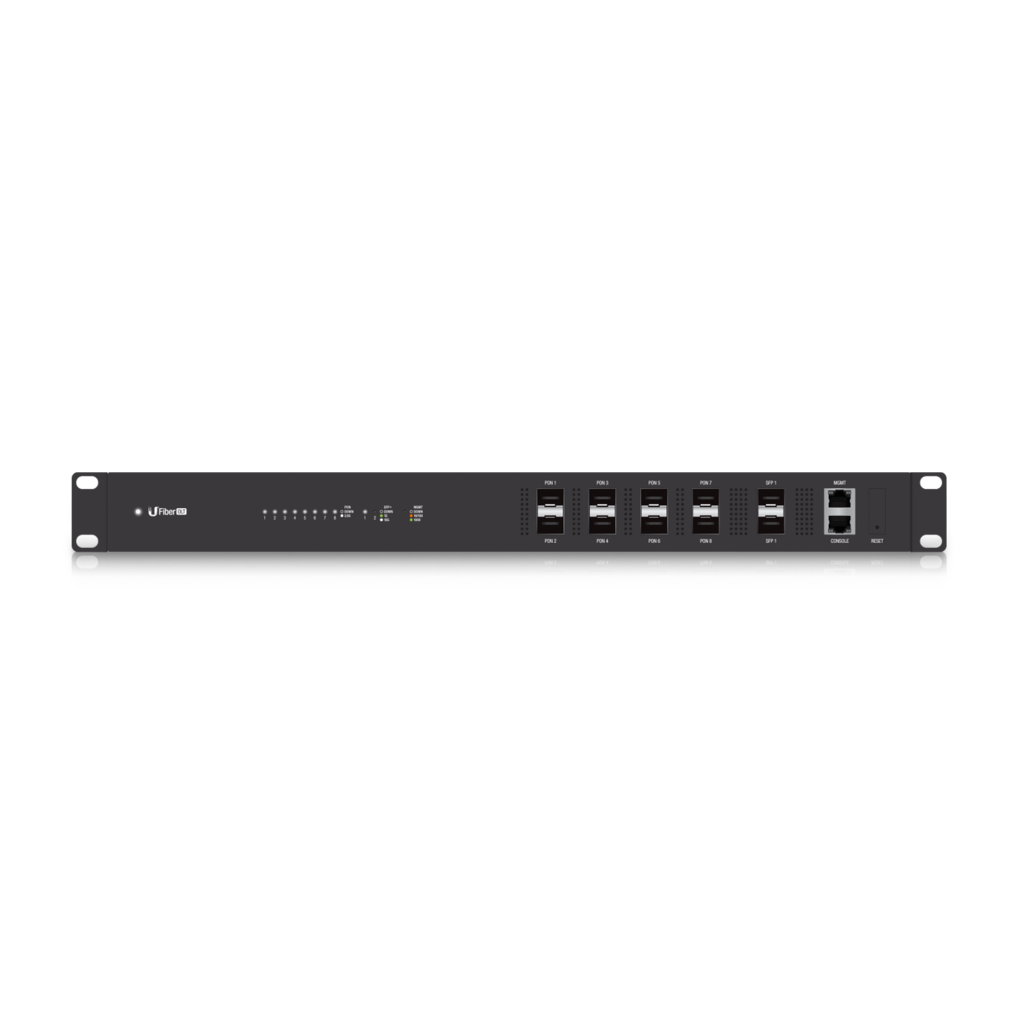

Ubiquiti UFiber OLT Terminal

UbiquitiSKU: UF-OLT

Price:
Sale price$2,736.46

Tax included

Stock:
Only 8 units left

Description

UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.

UFiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop. Management options include the Gigabit Ethernet port (out‑of‑band), RJ45 serial console port (CLI), and uplink (in‑band) – configured via the UFiber UI or UISP.

Features:

  • 8 Gigabit Passive Optical Network Ports
  • Supports up to 1024 Clients (128 per PON Port)
  • Up to 2.488 Gbps TX and 1.244 Gbps RX
  • Two 1G/10G SFP+ Ethernet Ports
  • Flexible Layer 2/3 Management Features
  • FastEthernet port for management
  • Console serial port for management

Product Specifications

UF-OL
Dimensions442.4 x 285.6 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
Without Mount Brackets
With Mount Brackets

4.400 kg (9.70 lb)
4.495 kg (9.91 lb)
Max. Power Consumption40W (Excluding SFP Transceivers)
Power Method110 - 240VAC Modular PSU
Power Supply(1) Hot-Swappable AC/DC 100W PSU (Included)
Supported Voltage RangeAC Input: 100 to 240VAC
ButtonReset
ProcessorMIPS 1004Kc 880 MHz Dual-Core
System Memory512 MB DDR3, 512 MB NAND
LEDs
System
PON Data Ports
SFP+ Data Ports
RJ45 (MGMT) Port

Status
Link/Activity
Link/ActivityLink/Activity
Link/Activity
Data Ports Interfaces(8) GPON Ports
(2.488 Gbps TX/1.244 Gbps RX per Port)
(2) 1G/10G SFP+ Ports
Serial Console Port Interfaces(1) RJ45 Ethernet Port
(1) RJ45 Serial Port
RackmountYes
Operating Temperature-10 to 45° C (14 to 113° F)
Operating Humidity10 - 90% Noncondensing
CertificationsCE, FCC, IC
GPON SFP OLT Transceiver
(UF-GP-B+ )
Single Fiber, SM SC/UPC, 20 km,
1490 nm TX/1310 nm RX,
ITU-T G984.2 Class B+
