UniFi Protect G4 Doorbell

UbiquitiSKU: UVC-G4-Doorbell
Style: Without PSU
Price:
$429.00

Tax included

Stock:
Sold out

Description

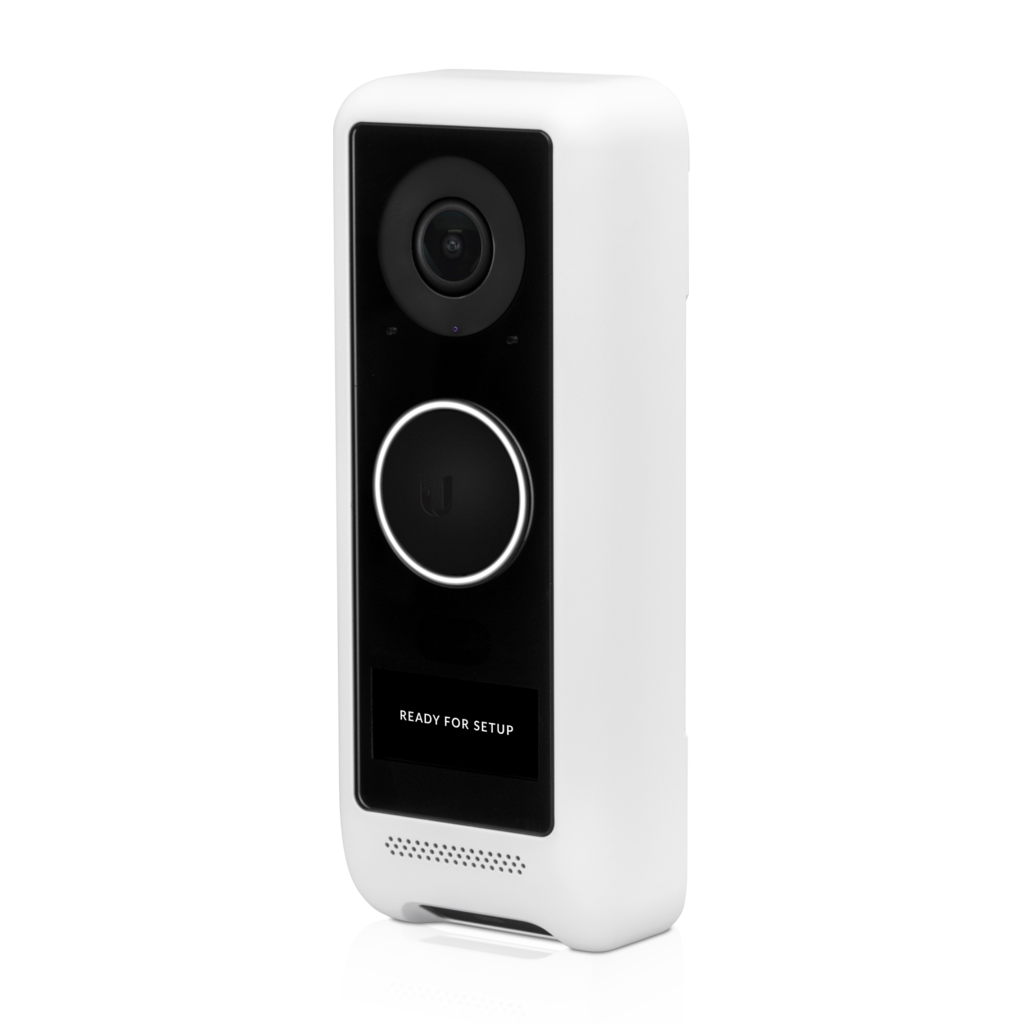

UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.

The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.

Features:

  • 1600x1200 (2MP) HD stream with night vision
  • Integrated entrance lighting
  • Real-time two-way audio with echo cancellation
  • Built-in display
  • Dual-band 802.11ac Wi-Fi
  • PIR motion detection sensor
  • Weather-resistant
  • UniFi Protect integration

View Compatible Chimes

Note: UniFi Protect is required to run this product with full functionality, we recommend using it with Dream Machine Pro or Network Video Recorder

Product Specifications

Mechanical
Dimensions118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02")
Weight
Without mount
With flat wall mount
With 20° wedge mount
130 g (4.59 oz)
178 g (6.28 oz)
200 g (7.05 oz)
Enclosure materialPolycarbonate
Mount materialsFlat wall mount: aluminum alloy
20° wedge mount: polycarbonate
WeatherproofingIPX4
Optics
Sensor5 MP CMOS sensor
LensFixed focal length
View angleH: 138°, V: 114°, D: 155°
Night modeBuilt-in IR LED illumination and IR cut filter
Video
Video compressionH.264
Resolution1600 x 1200 (4:3)
Maximum frame rate30 FPS
System
Processor specsquad core Arm® Cortex®-A53 based chip
Memory information512 MB
Mangement interfaceUniFi Protect
Networking interface802.11 ac Wi-Fi
Flash memory support256 MB
Max. power consumption12VA
Power requirements16-24VAC, 20VA
Link/activity LEDYes
ButtonFactory reset

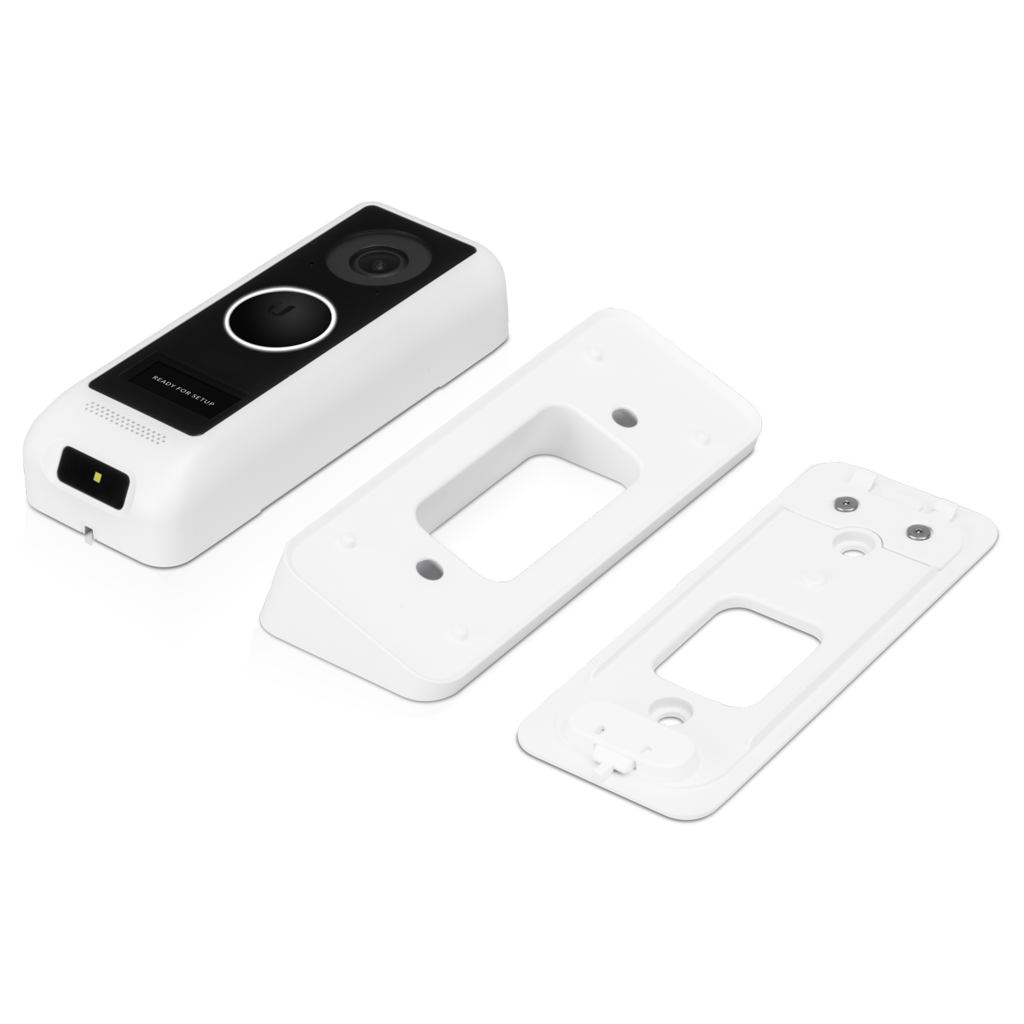

MountingFlat wall/20° wedge (kits included)
Operating temperature-10 to 40º C (14 to 104º F)
Operating humidity0 to 90% noncondensing
CertificationsFCC, IC, CE
Audio
MicrophoneYes (can be disabled in software)
SpeakerYes
Software
Controller softwareUniFi Protect
Mobile appsUniFi Protect iOS and Android
Compatible Mechanical Chimes
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware		Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D
Compatible Digital Chimes
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA		Model
LA600WH
DW-2850
DW-2840
