Ubiquiti WiFi BaseStation XG

UbiquitiSKU: UWB-XG

Price:
Sale price$2,508.79

Tax included

Stock:
Sold out

Description

Large venue quad-radio 802.11ac Wave 2 Access Point with powerful beamforming antenna. Ideal for high-density deployments.

Expand your 10-Gigabit network with the UniFi WiFi BaseStation XG, part of the Ubiquiti UniFi Enterprise WiFi System.


Features:

  • 10Gigabit Ethernet Support
  • 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
  • Triple 5 GHz 802.11ac Wave 2 Radios
  • 5.2 Gbps Combined Radio Rate in 5 GHz
  • Dedicated Security Radio with Persistent Threat Management
  • 1,500 Client Association Limit
  • 802.3bt Power Injector Included


Product Specifications

Mechanical
Dimensions (Without Mount) 471.1 x 257.5 x 94.3 mm
(18.55 x 10.14 x 3.713")
Weight (Without Mount) 3.2 kg (7.055 lb)
Networking Interface (1) 10/100/1000 RJ45 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
Button Reset
LED RGB, Software-Controllable
Power Method 802.3bt PoE
Power Supply 50VDC, 1.2A Gigabit PoE
Power Save Supported
Beamforming Supported
Max. Power Consumption 31W
Supported Voltage Range 44-57VDC
Max. TX Power 25 dBm
MIMO (3) 4 x 4
Operating Frequency 5 GHz
Antenna Integrated Dual-Mode Antenna Array
Antenna Gain Small Cell Large Cell 15 dBi 10 dBi
Antenna Beamwidth Small Cell Large Cell 50° 90°
Wi-Fi Standards 802.11 a/n/r/k/v/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

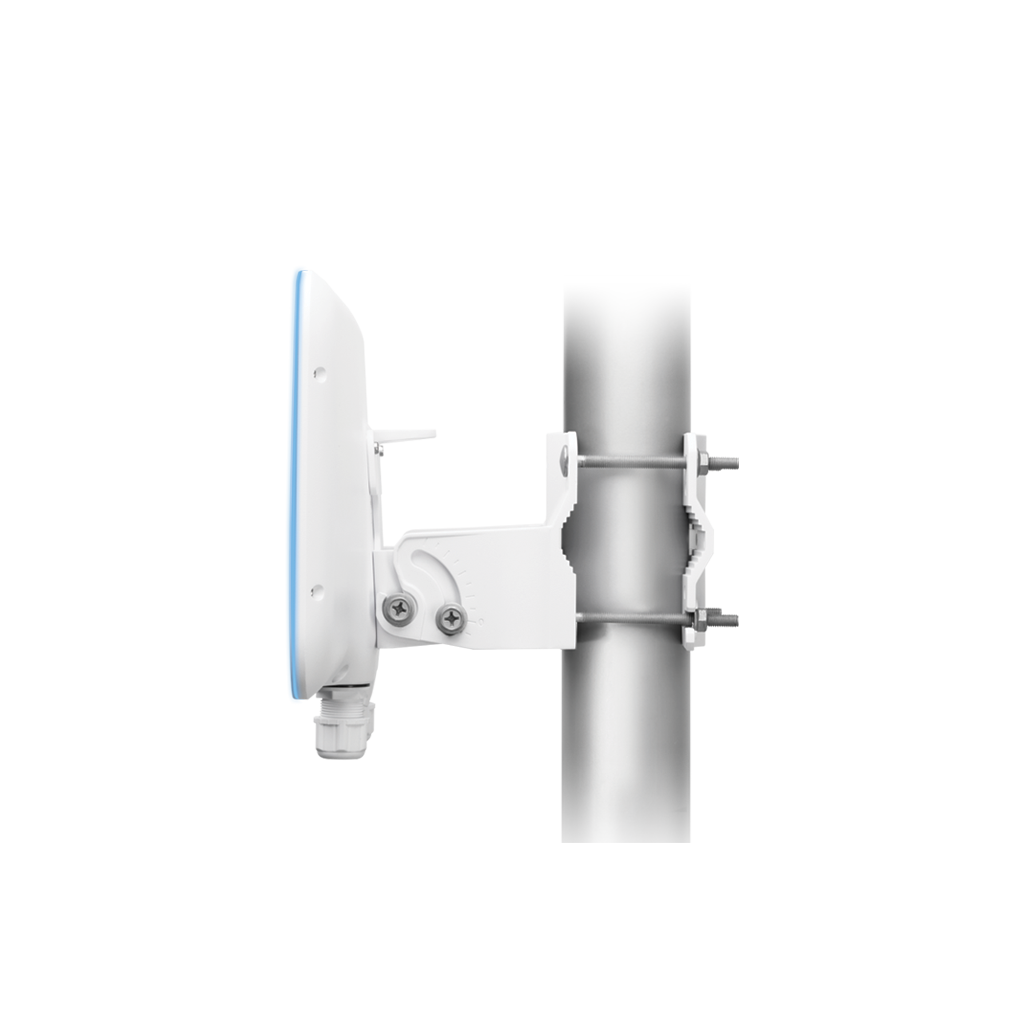

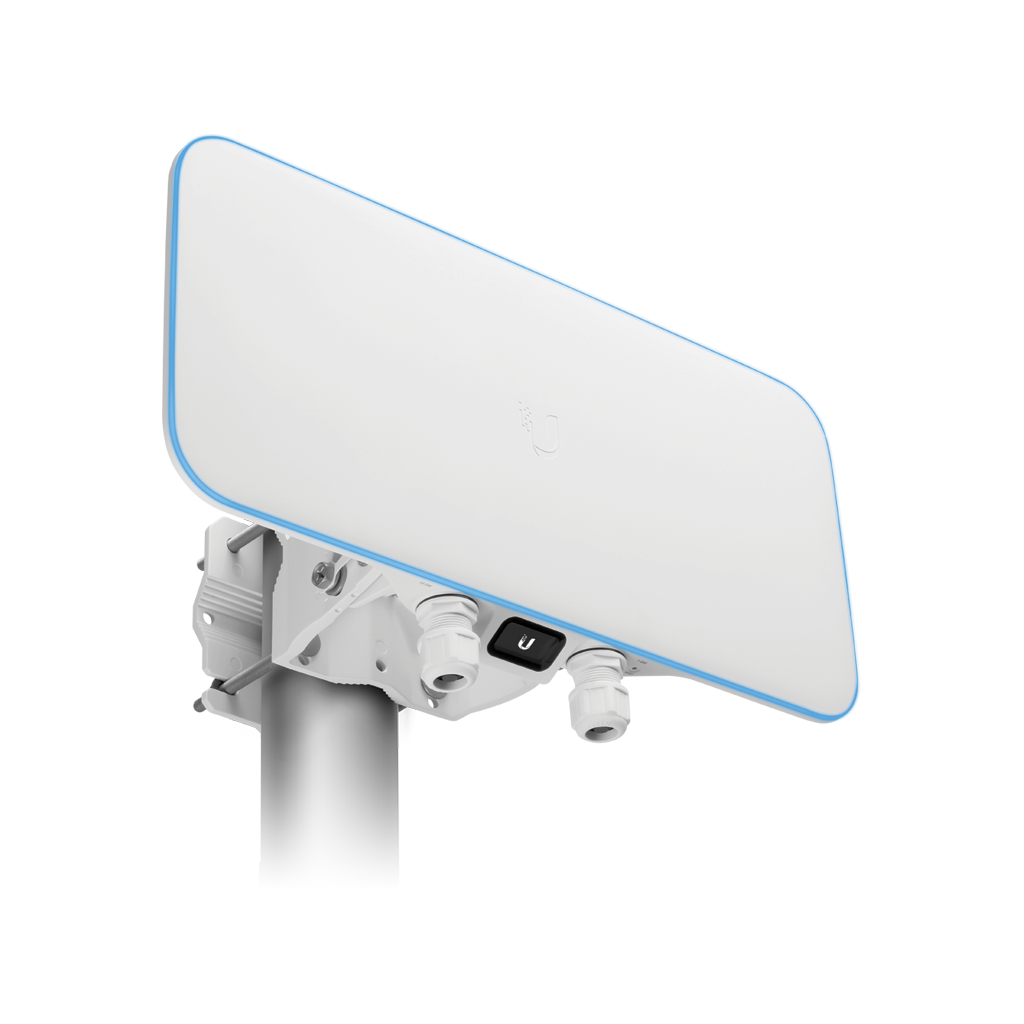

Mounting VESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Dust and Water Resistance IP67
Certifications CE, FCC, IC
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 1500
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
